Smart 50 - LED EVG 50W

Product information "Smart 50 - LED EVG 50W"

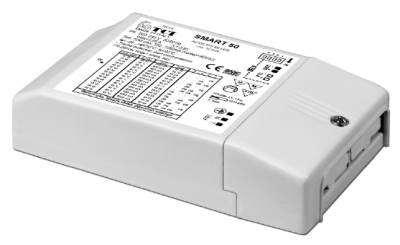

Universal low cost LED constant current driver Smart 50

You are looking for an inexpensive multistream converter, e.g. to replace an existing or defective LED ECG
Type Smart 50 from TCI is the right choice. Without any frills.
It offers up to 50W power at currents from 350mA to 1050mA, which can be adjusted in 15 steps via dip switches.

Simply smart, the Smart 50 from TCI (#122220):

  • Protection class IP20
  • Protection class I
  • ta = -25°C - 45°C (50°C)
  • tc = 90°C
  • high efficiency >90
  • Protected against overheating, short circuit, overvoltage, overload

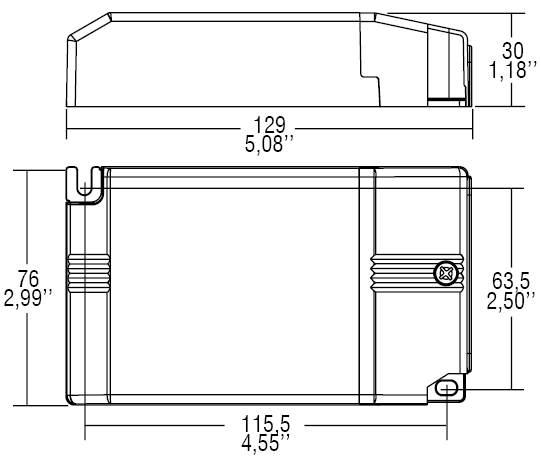

  • 129 x 76 x 30mm (L x W x H) - 180g
  • For ceiling installation suitable for hole diameters from 90mm
  • Clamping screws on primary and secondary circuit for cable 2-9mm
constant currentTCI certificates

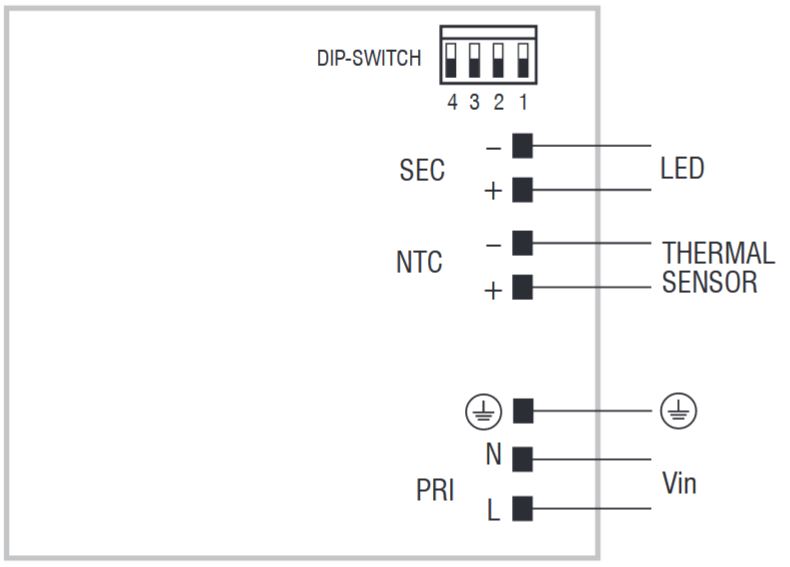

Adjustable currents via dip-switches:

Dip-SW Power out Voltage out Current out
Position 1 27 W 10...78V 350mA
Position 2 31 W 10...78V 400mA
Position 3 35 W 10...78V 450mA
Position 4 39 W 10...78V 500mA
Position 5 43 W 10...78V 550mA
Position 6 47 W 10...78V 600mA
Position 7 50 W 10...77V 650mA
Position 8 50 W 10...71V 700mA
Position 9 50 W 10...66V 750mA
Position 10 50 W 10...62V 800mA
Position 11 50 W 10...59V 850mA
Position 12 50 W 10...55V 900mA
Position 13 50 W 10...53V 950mA
Position 14 50 W 10...50V 1000mA
Position 15 50 W 10...48V 1050mA

Detailed description of the LED driver TCI 122220 Smart 50  please see data sheet

TCI 122220 Smart 50 safety protection
Properties "Smart 50 - LED EVG 50W"
#Kategoriefilter: LED-Treiber-alles mit CC
·Constant Current: 0,35A, 0,4A, 0,45A, 0,5A, 0,55A, 0,6A, 0,65A, 0,7A, 0,75A, 0,8A, 0,85A, 0,9A, 0,95A, 1,0A, 1,05A
·Power range: 20 - 50 W
Manufacturer "TCI TELECOMUNICAZIONI ITALIA S.R.L."

TCI TELECOMUNICAZIONI ITALIA S.R.L. (TCI Saronno)

is one of the leading manufacturers based in Italy and known for a wide range of LED converters, electronic ballasts and LED drivers. TCI attaches great importance to quality and reliability. Experience and trustworthiness are the keys to TCI's success.
For more than 10 years we have been offering more than 100 products from the manufacturer in Saronno/Italy (TCI IT) for Germany and Europe.

Below is our portfolio of products. Tip: Use the filter function to quickly find the driver you need, or give us a call.

Related links of the manufacturer

Data sheet Smart 50

1 of 1 reviews

5 out of 5 stars


100%

0%

0%

0%

0%


Leave a review!

Share your experiences with other customers.


From: Jörg

8 May 2022 10:23

Preisgünstiger, vielseitiger LED Treiber

Habe ein 50W LED-Panel mit 24-36V auf letzter Dip-Stellung dran und wurde nach 1 1/2h nur 45Grad warm.
