DALI Button Switch Cross Multi

79.34€ * 85.68€ * (7.4% gespart)
Net price: 68.40€

Prices incl. VAT plus shipping costs

Please select a variant first



DALI Button Switch Cross Control module for DALI circuits with four freely programmable... more

DALI Button Switch Cross

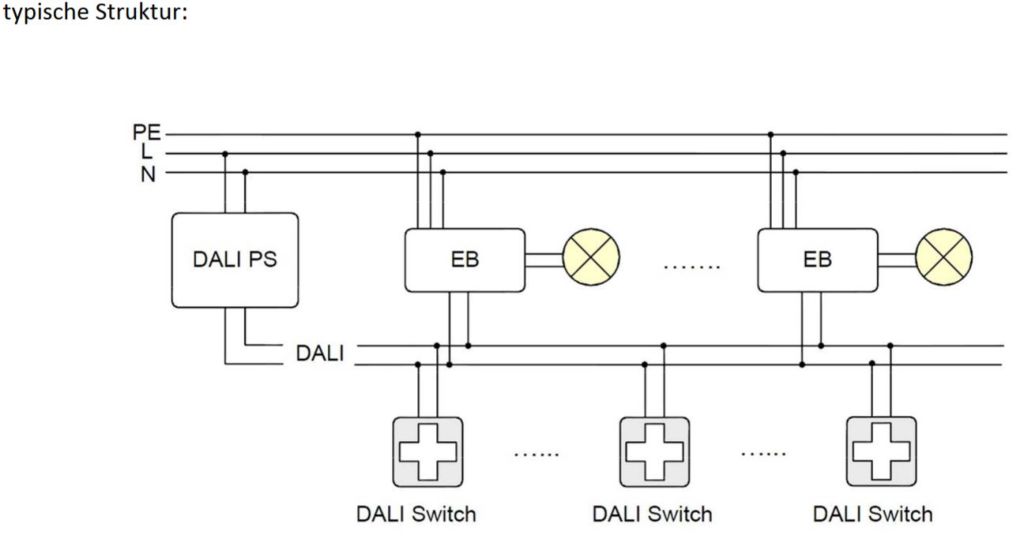

Control module for DALI circuits with four freely programmable buttons. The DALI Switch Cross is a DALI control module which is connected to the DALI bus. Each button of the DALI Switch can be configured with address, button behavior and DALI commands.
The following DALI commands are available: dim up, dim down, off, recall min., recall max., goto scene 1-16, direct arcpower ...%, mask and predefined macros. With memory function.

Product features / functions

  • Simple addressing and physical assignment with the DALI Cockpit software
  • Factory setting (preset 1) can be restored at any time using the DALI cockpit
  • Preset 2 for colour temperature control quickly configurable via DALI cockpit
  • Individual configuration using the DALI-Cockpit software tool
  • Command selection from the DALI command set, predefined and custom macros
  • Predefined macros for dynamic and sequential scene calls, colour temperature control and memory function
  • Adjustable behavior and delay on voltage return (no change, OFF, scene 0-15)
  • Operating modes to connect the switch to a central control

Technical control

  • Colours: white(RAL9010/RAL9016) / black
  • Supply: DALI-Bus
  • Typ. current cumsumption: 1.5 mA
  • Output: DALI
  • Function: programmable

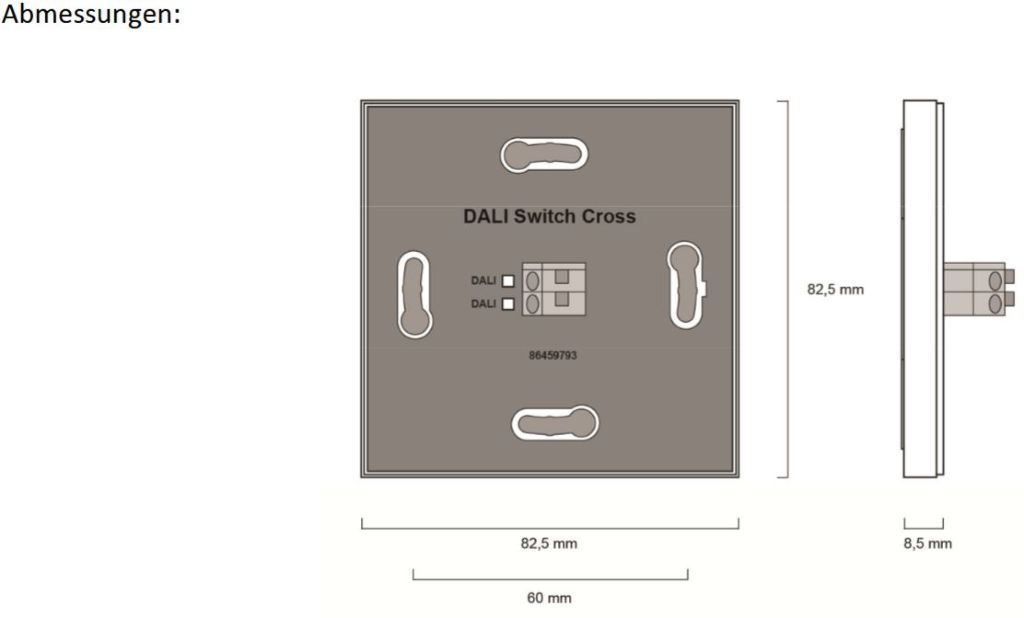

  • Dimensions: 82x82x8,5 mm
  • Temperature: 0 °C - +50 °C
  • Protection: IP20
  • Connecting wire cross section : up to 2.5 mm2
Related links to "DALI Button Switch Cross Multi"
Features/tags of this product family. Please refer about the details in the description or datasheet.
Application/IP-Code: IP20 - IP44 (Indoor)
Dimmable/Control: DALI, DALI2
Data sheet DALI Switch
Read, write and discuss reviews... more
Customer evaluation for "DALI Button Switch Cross Multi"
Write an evaluation
Evaluations will be activated after verification.
I have read and understood the Privacy policy.

The fields marked with * are required.

DALI MC Modul DALI MC Multi Control Module
41.88€ * 45.22€ *
Order number: 1927-86458507
DALI relay contact RM relay module DALI relay contact RM relay module
62.64€ *
Order number: 24034702
DALI control module Analog DALI control module Analog DALI 100 kOhm
27.84€ *
Order number: 86458506
Control cross for DALI Switch Cross Control cross for DALI Switch Cross
From 6.38€ *
Order number: 86459793-Z-01
DALI relay actor 86458675 DALI Relay Module
From 56.84€ *
Order number: 542-86458629-CEL

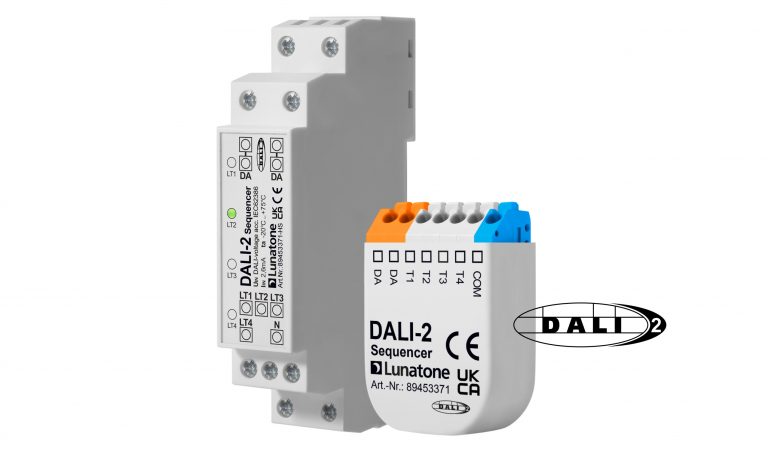

Schaltbild DALI Sequencer DALI Kontrollmodul Sequenzer
