1-Channel LED Dimmer 1-10V 12-36Vdc 8A

Product information "1-Channel LED Dimmer 1-10V 12-36Vdc 8A"

1-channel LED 1-10V Dimmer

The 1-channel LED 1-10V PWM dimmer, 12-36VDC, 1x8A from PUR-LED with Analog input for electronic dimmers.

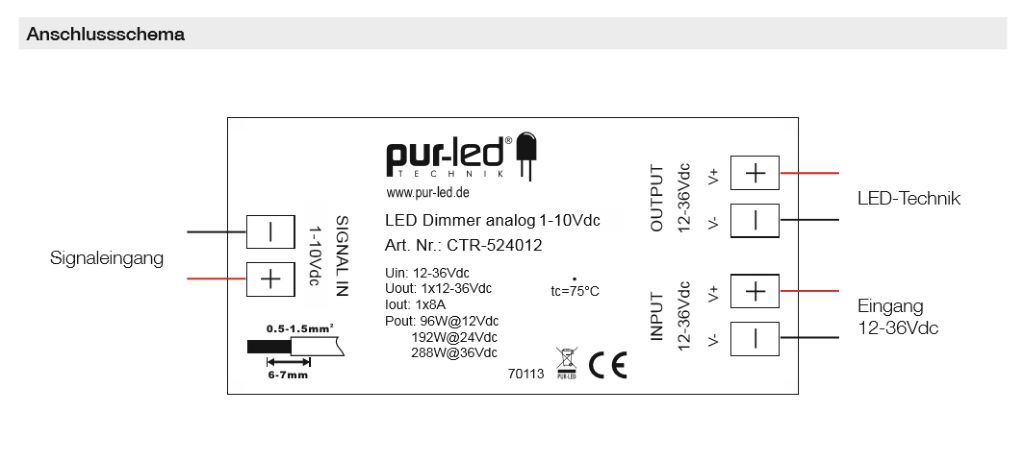

The search for the ideal constant voltage source with 1-10V is over. With this 1-10V dimmer the system can be extended easily and reliably. Details on the wiring of the 1-channel 1-10VLED dimmer can be found in the data sheet.


Technical data:

Power supply:12-36VDC
Input signal:1-10V active voltage
Output voltage:1 x 12-36VDC
Output current:max. 8A
Power output:96W @ 12VDC
192W @ 24VDC
192W @ 36VDC
Dimming function:0-100%
Temperature range:-20 - + 50°C
Dimensions (LxWxH) in mm:100 x 38 x 20
Properties "1-Channel LED Dimmer 1-10V 12-36Vdc 8A"
·Application/IP-Code: IP20 - IP44 (Indoor)
·Constant Voltage: 12V, 24V
·Dimmable/Control: 1..10V, PWM
Manufacturer "PUR-LED GmbH & Co. KG"

The company made it to their goal, to produce environmental friendly, innovative and especially in high quality. With the brand Trelight, PUR-LED® especially covers the control sector of multicolored LEDs. The Trelight-series can be controlled via wallswitch, radio or downloadable app, depending on the product.
