24V LED Transformers - Perfect for LED Strips /24Volt LED Systems
24V transformers or 24V LED transformers differ in the standard requirements for LED modules (DIN61347). Our portfolio fulfills these.
Common use is the operation of LED strips / LED ribbons and this may be dimmable. (via DALI, 1-10, phase dimming/Triac, or wireless solutions such as Casambi).
Power supplies up to 600W (e.g. Meanwell HLG) are available.
Long life and high quality requirements characterize our offer of 24V LED transformers from exclusively renowned manufacturers.
We explain the important features and differences here:
Just now….
DALI DT6 power supply 89453849 up to 15W. constant current source 350mA. Ideal for LED strips or small LED modules.
delivery time 3-5 Working days*
delivery time 3-5 Working days*
delivery time 3-5 Working days*
delivery time 5-10 Working days*
Independent LED power supply for high power LEDs with 8 W, 24V 350mA / 12V 700mA, power factor 0.6, 50-60Hz, with screw terminals
delivery time 5-10 Working days*
350mA const. current and 24V DC dimmable.
delivery time 3-5 Working days*
delivery time 5-10 Working days*
delivery time 1-3 Weeks*

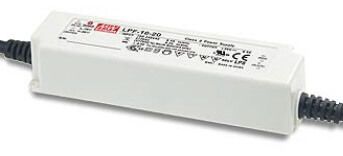

With a universal AC/DC input right up to 305V AC is the LPF-16 also suitable for LED's -and street lighting.
delivery time 3-5 Working days*
delivery time 3-5 Working days*
delivery time 3-5 Working days*
Fields of application of 24V LED transformers
24V DC power supplies are mainly used for LED strips/LED light strips or LED modules with 24V constant voltage input (24V DC).
But also many PWM dimming actuators, which are connected between the 24V LED strip and the 24V power supply, are designed for this purpose.
The following interrelationships must be taken into account:
- The selection of the transformer power is calculated from the maximum current multiplied by 24 volts. A small reserve (5-10%) is often included.
- The voltage losses on the lines and on the LED strip are lower due to the usually lower currents at 24 V than at e.g. 12V voltage. Stripe lengths can be longer and thus the number of feeds can be designed smaller.
- Dimming can be realized either via an available dimming input (DALI, 1-10V), Casambi Bluetooth radio, or phase cut-off dimming, depending on the design.
Alternatively, an LED PWM dimmer can be connected between the transformer and the LED module.
