LED driver TCI SLIM/U
The LED driver with IP-20 protection class is perfect for independent indoor installations. Thanks to the additional equipment with protection class II, it protects against electric shocks, whether with indirect or direct contact.
In addition, the TCI SLIM / U 122447 is protected against overheating, mains voltage peaks, overload and short circuits.
- IP20 independent driver, for indoor use
- Class II protection against electric shock for direct or indirect contact
- Delivered with terminal cover and cable bracket
- Input and output terminal strips on opposite sides (wire cross-section up to 2.5mm² / AWG13)

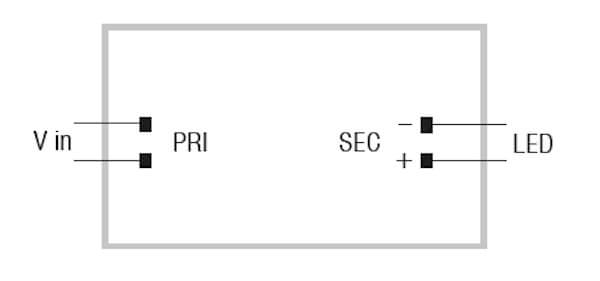

- Simple terminal block on the primary and secondary circuit
- Clamping screws on primary and secondary circuit for cables with diameter: min. 3 mm - max. 8 mm
- The driver can be attached with a slot for screws
- against overheating
- against mains voltage peaks
- against overloads
|Article||Art.No.||Power||Voltage out ||Current out|
|DC 12W 300mA||122447||12W||2...40 V||300 mA const.|
|DC 15W 350mA||122440||15W||2...40 V||350 mA const.|
|DC 14W 500mA||122448||14W||2...28 V||500 mA const.|
|DC 11W 700mA||122441||11W||2...16,5 V||700 mA const.|
|DC 13W 12V||122444||13W||12 V konst.||1,08 A max.|
|DC 13W 24V||122442||13W||24 V konst.||540 mA max.|
Further information can be found in our download tab.
|Constant Voltage:||12V, 24V|
|Constant Current:||0,3A, 0,5A, 0,7A, 0,35A|
|Power:||5 - 20 W|
