DCC HPFU

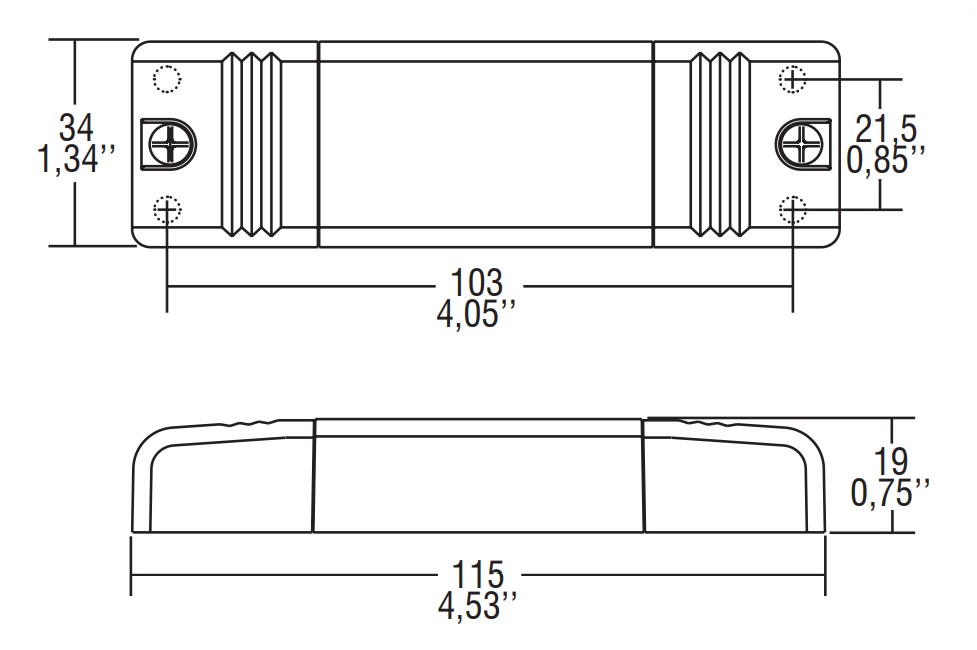

dimensions

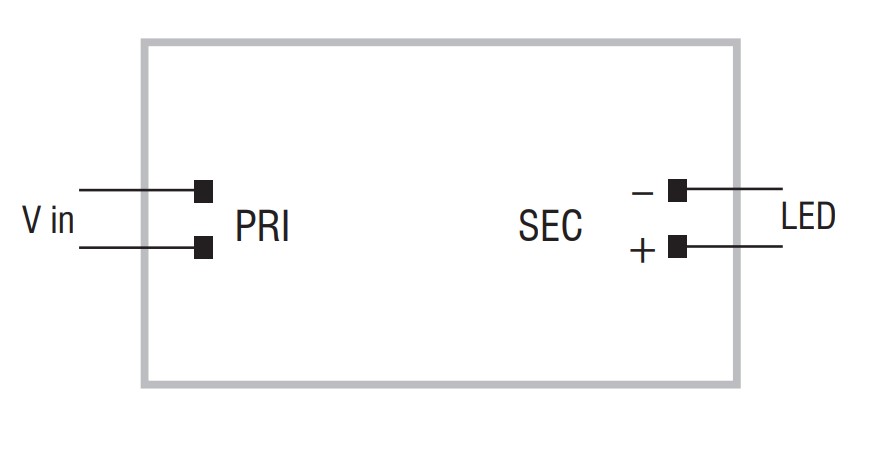

contacts
Preview: DCC HPFU Preview: dimensions Preview: contacts


DCC HPFU

(6)
TCI TELECOMUNICAZIONI ITALIA S.R.L.
19.04€ *
Net price: 16.00€

Prices incl. VAT plus shipping costs

Please select a variant first

Constant current:

Description Features Downloads Evaluations 6
Description
Features •Active Power Factor Corrector. •IP20 independent driver, for indoor use.... more
Close menu

Features

•Active Power Factor Corrector.
•IP20 independent driver, for indoor use.
•Class II protection against electric shock for direct or indirect contact.
•Supplied with terminal cover and cable retainer.
•Input and output terminal blocks on opposite sides (wire cross-section up to 2,5 mm2 / AWG13).
•Single terminal block on primary and secondary circuit.
•Clamping screws on primary and secondary circuits for cables with diameter: min. 3 mm - max. 8 mm.
•Driver can be secured with slot for screws.
•Protections: - against overheating and short circuits; - against mains voltage spikes; - against overloads



More Data

Article Code P out W V out DC I out DC U out V ta C° tc C° max Power Factor max Efficiency
DCC 12W 500mA HPFU 127711 12 1...24 500 mA cost. 25 -25....+50 80 0,85 C >83
DCC 12W 700mA HPFU 127712 12 2...16 700 mA cost. 19 -25...+45 75 0,85 C >80
DCC 15W 350mA 127713 15 2...41,5 350 mA cost. 45 -25...+45 75 0,80 C >85



For more information see our download tab.

Related links to "DCC HPFU"
Features
350 mA 500 mA 750 mA more
Close menu
Features/tags of this product family. Please refer about the details in the description or datasheet.
Constant Current: 0,5A, 0,7A, 0,35A
Power range: 5 - 20 W
#Kategoriefilter: LED-Treiber-alles mit CC
Downloads
more
Close menu
Datasheet for TCI 127711/12/13
