DALI bus system from Lunatone

The DALI PS supplies the DALI bus system with the needed energy. A standard-compliant voltage, current limitation and timing ensure reliable bus communication. An entire DALI line can be supplied with an output current of up to 250 mA. For example, up to 64 addressable participants and a further 30 control modules (DALI sensors, MC, touch panel, ...) up to a total load of 200mA can be connected. Devices with different output currents and housings are available. (Flush-mounted box, ceiling slot and DIN rail for installation in the control cabinet)

There are also suitable system extensions with DALI Expander and DALI Repeater.

DALI-2 PS12 100mA bus supply Power Supply Unit

DALI bus supply with supply voltage range of 9V DC - 16V DC. Maximum output current 100mA. Supply of up to 50 DALI devices.

Product number: 24033444-12VDO

€63.65*

delivery time 3-5 Working days*

Details

Lunatone RS232 interface bidirectional data traffic

Communication interface between a PC (or PLC) and modules in a DALI lighting system.

Product number: 22176438-HS

€209.40*

delivery time 1-3 Weeks*

Details

LUNATONE 24033444 DALI Power Supply PS2

Central DALI power supply PS2 24033444 for up to 64 standard devices - designed for ceiling, DIN rail or socket installation.

Product number: 529-24033444-2

Variants from €48.41*

€100.51*

delivery time 2-4 Working days*

Details

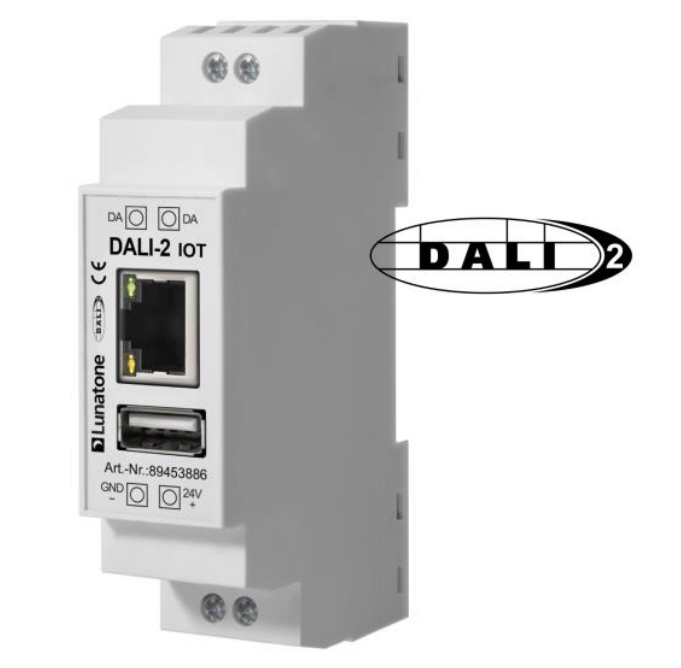

DALI-2 IoT Gateway to LAN or NodeRed | 89453886

DALI-LAN Central control unit and interface module to connect a DALI to a LAN network or NodeRed

Product number: L-89453886-NR

Variants from €569.57*

€741.94*

Details

KNX4DALI Gateway | 89451312

ADALI -2 and KNX certified Gateway for broadcast Control of 4 DALI lines each with 4 DALI operating devices and power supplie. Easy configuration with ETS5 and provided Database.

Product number: 89451312

€93.97*

delivery time 2-4 Working days*

Details
