DALI PS/PS2 from 24 Volt DC

55.62€ *
Net price: 46.74€
Content: 1

Prices incl. VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays*


piece

DALI Power supply Unit DALI PS 24 Volt 100mA DALI PS serves as power supply for the DALI bus... more

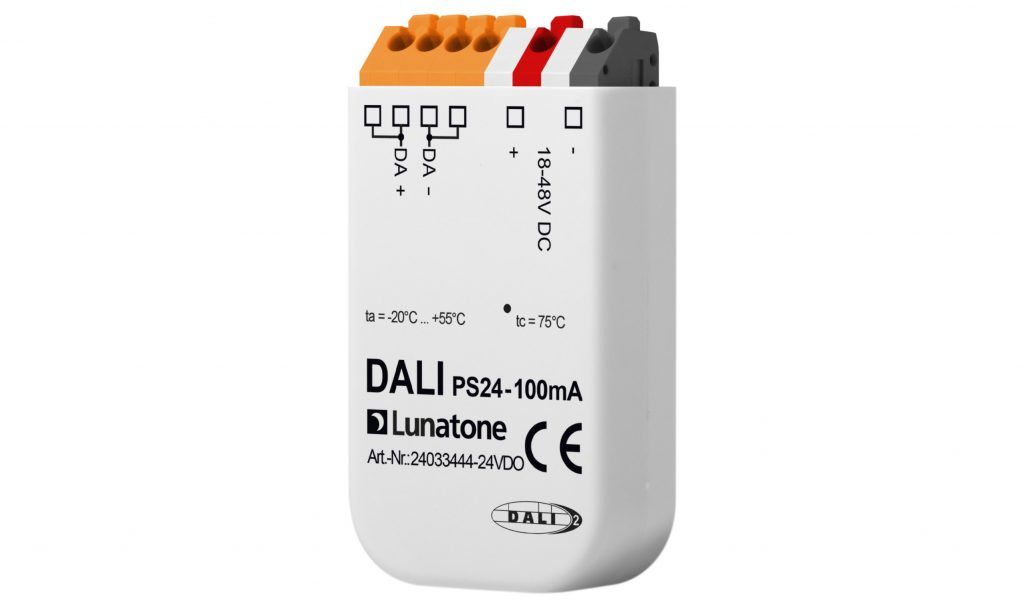

DALI Power supply Unit DALI PS 24 Volt 100mA

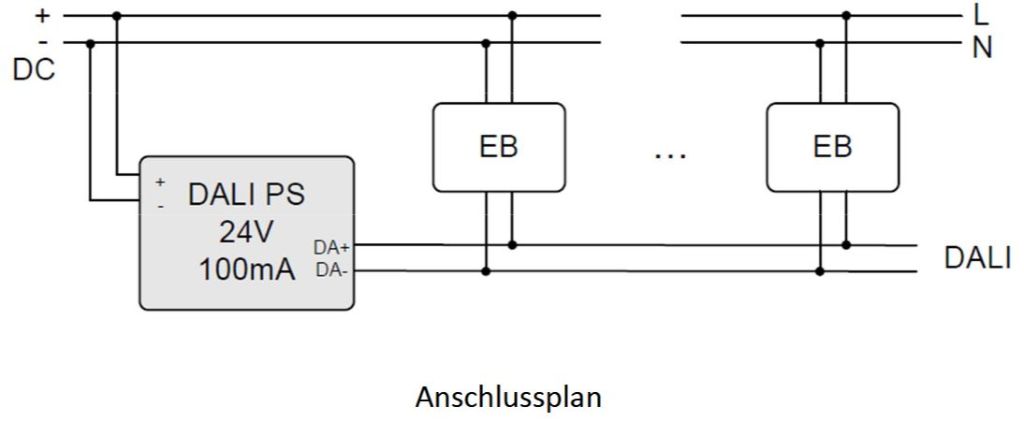

DALI PS serves as power supply for the DALI bus system. Voltage and current limitation according to standard as well as timing ensure a reliable bus communication. With the output current of up to 250mA an entire DALI line can be supplied. Up to 64 addressable DALI devices and additional 20 to 30 control modules (DALI Sensors, MC, Touch panel…), up to an overall load of 200mA can be connected.


Overview:

  • DALI bus power supply unit
  • Guaranteed supply current 100mA
  • Maximum supply current 250mA
  • Suitable to power an DALI-line with up to 50 standard DALI ballasts
  • Suitable for back box installation and integration in protection class II devices
  • Power supply range 18Vdc ... 48Vdc
Type DALI PS 24 Volt 100mA
Partnumber Lunatone 24033444-24VDO
Electrical data
Supply 18V - 48V DC
Output current 120mA/100mA guaranteed
Rated power 2W
Output DALI
Technical data
Ambient temperature -20°C bis +55°C
Protection class IP20
Connection wire cross section max. 1.5mm²

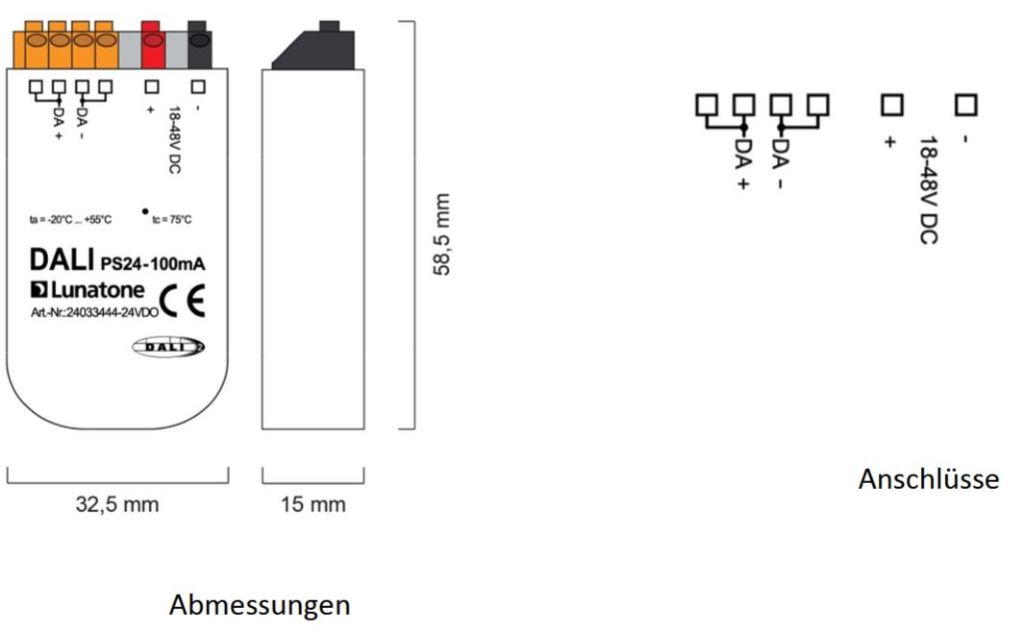

Dimensions (L x W x H) 59mm x 33mm x 15mm
Mounting Back box installation integration in protection class II device


Further technical data can be found in the data sheet.

Related links to "DALI PS/PS2 from 24 Volt DC"
DALI bus supply with supply voltage range from 18VDC - 48VDC. Maximum output current 250mA. more
Features/tags of this product family. Please refer about the details in the description or datasheet.
Application/IP-Code: IP20 - IP44 (Indoor)
Dimmable/Control: DALI, DALI2
Data sheet DALI PS/PS2
