DALI PS2 ceiling installation lunatone 24033444
LUNATONE 24033444 DALI Power Supply PS2
Lunatone DALI PS2 power unit

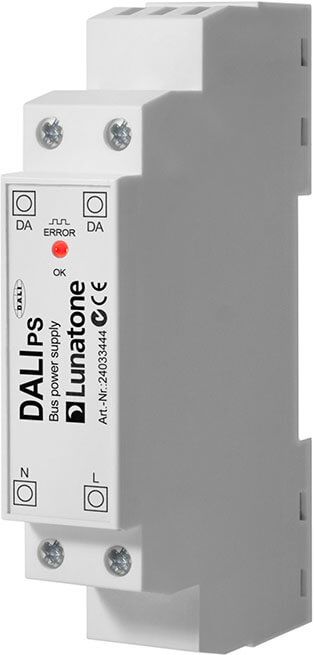

DALI PS din rail 24033444

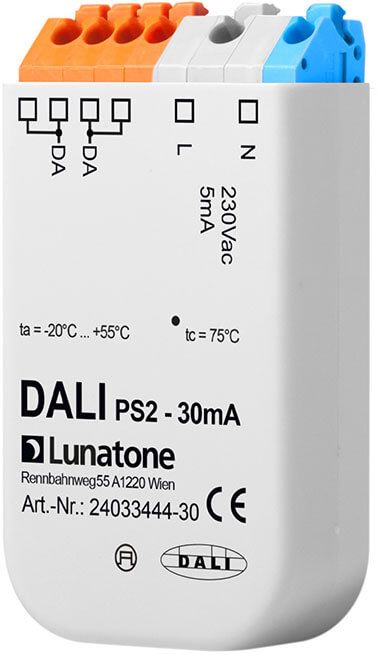

DALI PS2 30mA product picture

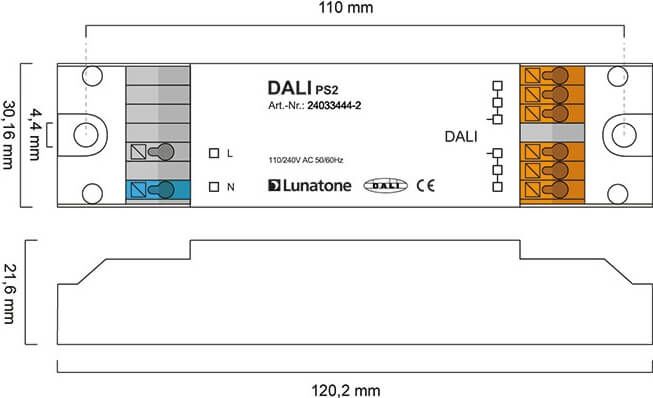

DDALI Powersupply Dimension

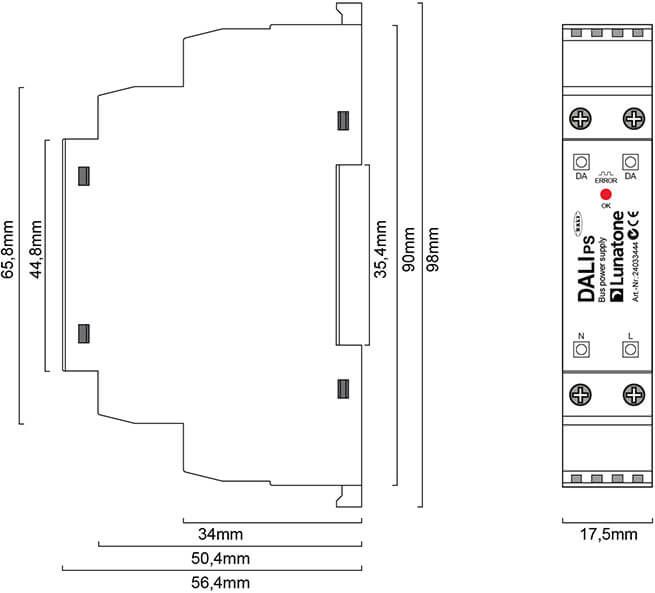

DALI PS din rail dimension
Preview: DALI PS2 ceiling installation lunatone 24033444 Preview: LUNATONE 24033444 DALI Power Supply PS2 Preview: Lunatone DALI PS2 power unit Preview: DALI PS din rail 24033444 Preview: DALI PS2 30mA product picture Preview: DDALI Powersupply Dimension Preview: DALI PS din rail dimension


LUNATONE 24033444 DALI Power Supply PS2

(6)
Lunatone Industrielle Elektronik GmbH
Variants from 53.79€ *
Net price: 45.20€

Prices incl. VAT plus shipping costs

Please select a variant first

Mounting:


piece

Description Features Downloads Evaluations 6
Description
Lunatone 24033444 DALI power supply designed for: ceiling installation, DIN rail... more
Close menu

Lunatone 24033444 DALI power supply designed for:

  • ceiling installation,
  • DIN rail installation, or
  • socket installation

  • Centralised DALI power supply
  • Suited for the power supply of a complete DALI circuit up to 64 standard DALI devices
  • Output current up to 230mA
  • DALI is not SELV. The installation regulations for low voltage are applicable


Technical data

  • Supply: from the mains
  • Frequency of the supply voltage: 50/60Hz
  • Supply voltage: 120/240VAC
  • Maximum output current of 230mA for ceiling installation and DIN rail installation / maximum output current of 30mA for socket installation
  • Maximum power of 4W for ceiling installation and DIN rail installation / nominal power for socket installation: 1W
  • DALI output
  • Protection class: IP20
  • Temperature: 0-50 °C

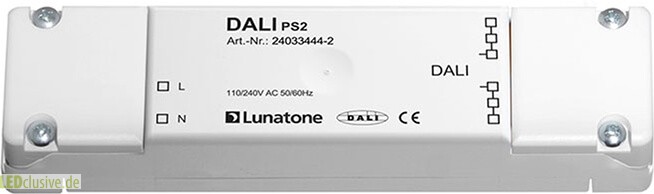

  • Dimensions for ceiling installation 24033444-2 (LxWxH): 120,20 mm x 30,16 mm x 21,60 mm

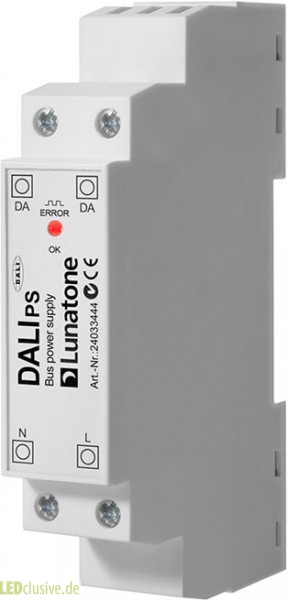

  • Dimensions for DIN rail installation 24033444 (LxWxH): 90,0 mm x 17,8 mm x 58,0 mm

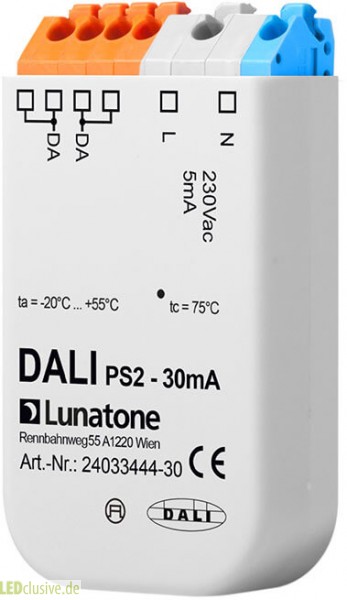

  • Dimensions for socket installation 24033444-30 (LxWxH): 58,5 mm x 32,5 mm x 15,0 mm
  • Cross-section of connecting wires: max. 2.5 mm²


Related links to "LUNATONE 24033444 DALI Power Supply PS2"
Features
Central DALI power supply for up to 64 standard devices - designed for ceiling, DIN rail or... more
Close menu
Features/tags of this product family. Please refer about the details in the description or datasheet.
Application/IP-Code: IP20 - IP44 (Indoor)
Dimmable/Control: DALI
Downloads
more
Close menu
Manual DALI PS2
DALI Power Supply from Lunatone
Lunatone Overview
Evaluations 6
Read, write and discuss reviews... more
Close menu
Customer evaluation for "LUNATONE 24033444 DALI Power Supply PS2"
From: On: 11 Aug 2022

From: On: 3 Jun 2022

From: On: 10 Apr 2022

From: On: 7 Jan 2021

From: On: 22 Oct 2020

Tut wie sie soll.

Hab die HS Version im Einsatz.

From: On: 15 Apr 2020

Kaufempfehlung

sehr zufieden , schnelle Lieferung

Write an evaluation
Evaluations will be activated after verification.
I have read and understood the Privacy policy.

The fields marked with * are required.
