DALI operating devices and controls from Lunatone

The operating devices and controls are characterized by simplicity despite their high flexibility.
User-friendly functions can be intuitively adapted to the respective application. The selection ranges from touchscreens and touch panels to switches and sensors to apps for mobile devices. All modules are multi-master capable and can be combined as desired. The control and operating devices are configured with the DALI Cockpit software tool, and the DALI USB interface serves as the interface. The control modules are powered via the DALI bus.

Other products such as coupler and control elements as well as sensors are also available in our shop and complete the control and operating devices.

DALI-2 4Ch PD phase dimmer module

DALI-2 4-channel phase dimmer suitable for 4x 10W, suitable for dimming 230V lamps via DALI

Product number: 86451975-HS

·Application/IP-Code: IP20 - IP44 (Indoor)
·Dimmable/Control: DALI, DALI2, Phase-Cut (Triac)

€198.46*

delivery time 1-3 Weeks*

Details

4Kanal DALI LED Dimmer CC | Lunatone 89453855

Two, three or four channelled constant current supply with dimfunction and mutual + resp. - potential up to 1000mA

Product number: 89453855-350-GP

Select current

350mA

·Constant Current: 0,35A, 0,5A, 0,7A, 1,0A
·Dimmable/Control: DALI, Push-Button

€127.32*

delivery time 2-4 Working days*

Details

DALI SC/SC-A Scene Control Module

Module for calling up 4 DALI scenes with conventional light buttons. Depending on the variant, programmable or not.

Product number: 569-24138906

Select version

DALI SC-A - Not programmable (24138906)

·Dimmable/Control: DALI

€61.99*

delivery time 2-4 Working days*

Details

DALI MC4L Control module with 4 L inputs | 86458507

DALI control module with four programmable switching inputs for mains voltage .

Product number: 86458507-4L-POTI

Select version

DALI-2 MC4L POTI

·Application/IP-Code: IP20 - IP44 (Indoor)
·Dimmable/Control: DALI, DALI DT8

Variants from €89.79*

€156.56*

delivery time 1-3 Weeks*

Details

DALI-2 CS Motion detector and light sensor 86458670

Motion detector for DALI control units with light intensity measurement and motion detection or remote function

Product number: 551-86458670

Choose color/surface

White RAL9010

·Dimmable/Control: DALI, DALI2

€123.96*

delivery time 5-10 Working days*

Details

Lunatone 7 inch DALI-2 Operator 86456840

Multifunctional 7 inch control unit for DALI and DALI-2 systems

Product number: 86456840-0-W

Choose color/surface

white

€804.09*

delivery time 1-3 Weeks*

Details

DALI-2 Touchpanel 24035410

Control DALI and DALI-2 systems with the DALI-2 Touchpanel 04 (24035290), with 16 configurable buttons and 4 LEDs for visualising selected groups or scenes, flexibly programmable

Product number: 24035290-PS - G000

Choose variant from list

·Application/IP-Code: IP20 - IP44 (Indoor)
·Dimmable/Control: DALI, DALI2, DALI DT8

Variants from €243.78*

€285.66*

delivery time 1-3 Weeks*

Details

3 CH DALI constant current (CC) dimmer

Four channel constant current supply with dimfunction and mutual + resp. - potential up to 700mA

Product number: 89453846-350-GP

Select current

350mA

·Application/IP-Code: IP20 - IP44 (Indoor)
·Constant Current: 0,35A, 0,5A, 0,7A, 1,0A
·Dimmable/Control: DALI, Push-Button

€108.89*

delivery time 2-4 Working days*

Details

LUNATONE 24033444 DALI Power Supply PS2

Central DALI power supply PS2 24033444 for up to 64 standard devices - designed for ceiling, DIN rail or socket installation.

Product number: 529-24033444-2

Choose design

Ceiling Installation (24033444-2)

·Application/IP-Code: IP20 - IP44 (Indoor)
·Dimmable/Control: DALI

Variants from €48.41*

€100.51*

delivery time 2-4 Working days*

Details

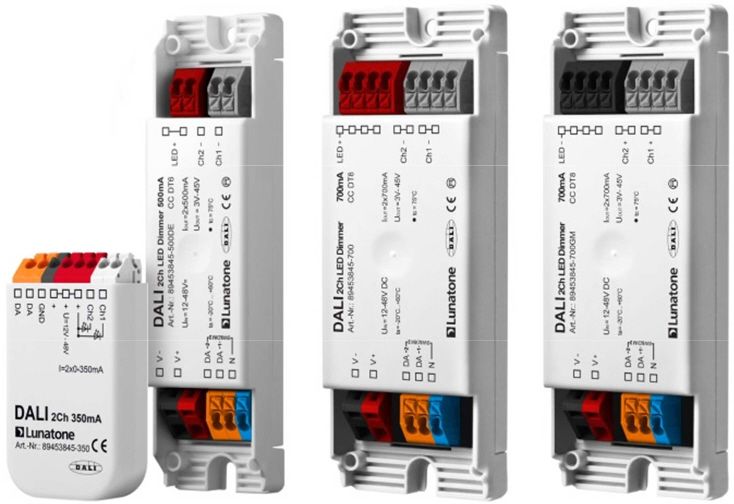

2 CH DALI constant current (CC) dimmer

Two channel constant current supply with dimfunction and mutual + resp. - potential up to 1000mA

Product number: 89453845-700-GM

Select current

700mA

·Constant Current: 0,35A, 0,5A, 0,7A, 1,0A
·Dimmable/Control: DALI, Push-Button

Variants from €92.14*

€145.74*

delivery time 3-5 Working days*

Details

DALI / DALI2 Control Module Sequencer 86459582 - 89453371

Control device for up to 4 automatically running DALI command sequences or DALI-2 | Suitable for e.g. simulation of light scenes. Box installation or top-hat rail available.

Product number: 564-86459582-HS

Structural shape

DALI - DIN rail (86459582-HS)
