4Kanal DALI LED Dimmer CC | Lunatone 89453855

Variants from 111.24€ *
Net price: 93.48€

Prices incl. VAT plus shipping costs

Please select a variant first

Current:

Type of contacts:

Multi channel DALI constant current (CC) dimmer by Lunatone Every channel of the... more

Multi channel DALI constant current (CC) dimmer by Lunatone

  • Every channel of the DALI constant current dimmer has its own DALI address
  • Configuration and control via DALI
  • For the direct control of LED modules with current input
  • The outputs are dimmable from 1% to 100%
  • Different variants for 350mA per channel in a small housing, further 1000mA per channel in a big housing are available
  • Configuration via DALI cockpit and DALI USB interface
  • Integrated short protection


The following versions are available:

Two channel versions, with 2 DALI addresses each (one address per channel)

Up to max. 2x 350mA output currents: 89453845-350
With a collectice positive pole: 89453845-350DE
With a collectice minus pole: 89453845-350GMDE

Up to max. 2x 500mA output currents: 89453845-500
With a collectice positive pole: 89453845-500DE
With a collectice minus pole: 89453845-500GMDE

Up to max. 2x 700mA output currents:
With a collectice positive pole: 89453845-700
With a collectice minus pole: 89453845-700GM

Up to max. 2x 1000mA output currents:
With a collectice positive pole: 89453845-1000
With a collectice minus pole: 89453845-1000GM


Three channel versions, with 3 DALI addresses each (one address per channel)

Up to max. 3x 350mA output current
With a collective positive pole: 89453846-350
With a collective minus pole: 89453846-350GM

Up to max. 3x 500mA output current
With a collective positive pole: 89453846-500
With a collective minus pole: 89453846-500GM

Up to max. 3x 700mA output current
With a collective minus pole: 89453846-700GM


Four channel versions, with 4 DALI addresses each (one address per channel)

Up to max. 4x 350mA output current
With a collective positive pole: 89453855-350
With a collective minus pole: 89453855-350GM

Up to max. 4x 500mA output current
With a collective positive pole: 89453855-500
With a collective minus pole: 89453855-500GM

Up to max. 4x 700mA output current
With a collective minus pole: 89453855-700GM


Other technical data:

  • Output voltage range: 3V-45V (with 48V supply)
  • Supply: 12VDC-48VDC resp. 56VDC
  • Control input: DALI
  • Temperature: -15 °C - 50 °C resp. -20 °C - 60 °C
  • Protection type: IP20
  • Condition after return: depends on the DALI settings
  • Max. cross wire section: up to 2,5 mm²

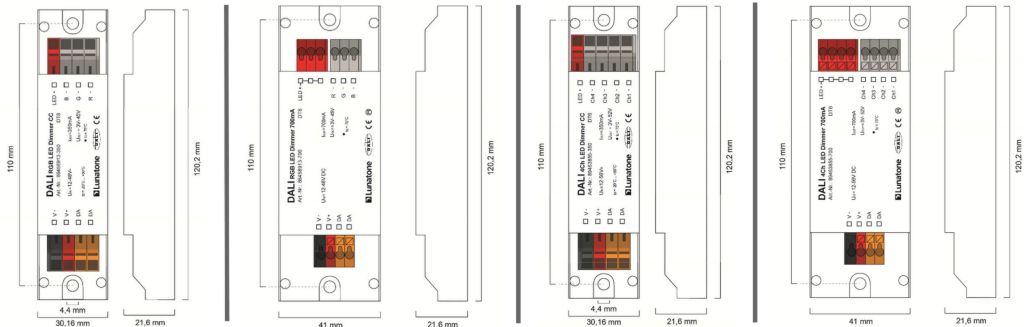

  • Dimensions: Check the data sheet
Related links to "4Kanal DALI LED Dimmer CC | Lunatone 89453855"
Two, three or four channelled constant current supply with dimfunction and mutual + resp. -... more
Features/tags of this product family. Please refer about the details in the description or datasheet.
Application/IP-Code: IP20 - IP44 (Indoor)
Dimmable/Control: DALI, Push-Button
Constant Current: 0,5A, 0,7A, 0,35A
Color Temperature/Color: RGBW/4-Ch
Lamp shape: Throw-in ceiling
Lunatone Overview
Datasheet DALI 3ch engl.
Datasheet DALI 4ch engl.
Datasheet DALI 2ch engl.
