Lunatone RS232 interface bidirectional data traffic

123.42€ * 133.28€ * (7.4% gespart)
Net price: 106.40€

Prices incl. VAT plus shipping costs

Delivery time 3-5 workdays*


piece

Lunatone RS232 interface bidirectional data traffic Module with serial interface to... more

Lunatone RS232 interface bidirectional data traffic


Module with serial interface to communicate with the DALI bus via RS232, with RJ45 plug and screw terminals. Allows e.g. the connection of a PLC to a DALI system via RS232 for bidirectional data transmission. Suitable for addressing, configuration, status queries and monitoring.

Overview:

  • Module with a serial interface to communicate with components in a DALI-line via RS232
  • A simple way to connect a PC or PLC to a DALI network
  • bidirectional data transfer
  • Addressing, configuration, status requests and monitoring
  • Collision detection
  • Support for several proprietary DALI-protocol extensions
  • Electrical isolation
  • Supply via DALI-line and serial interface
  • Double DALI-terminals

Electrical data:

typ. current consumption DALI 10mA
max. current consumption DALI 10mA

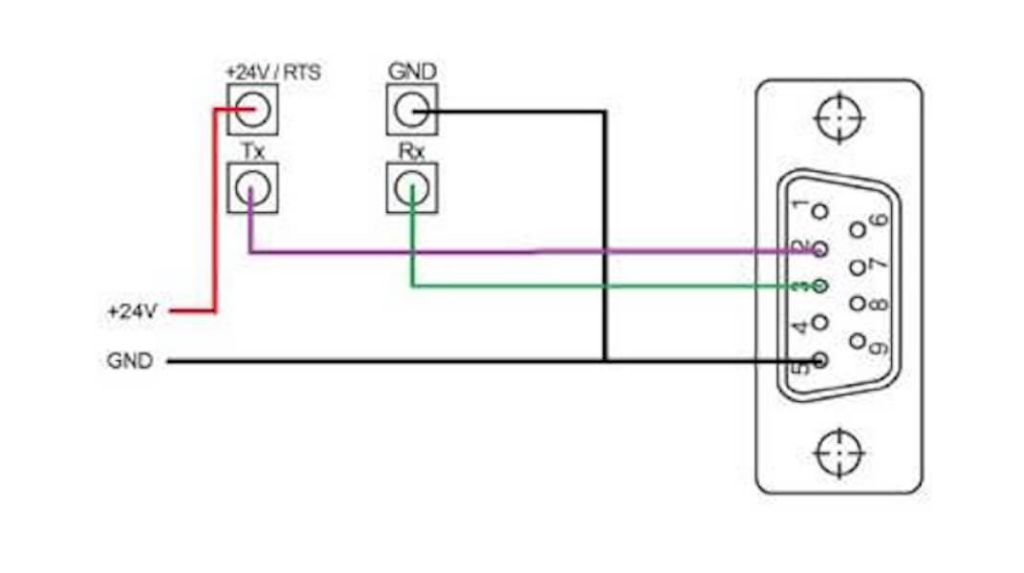

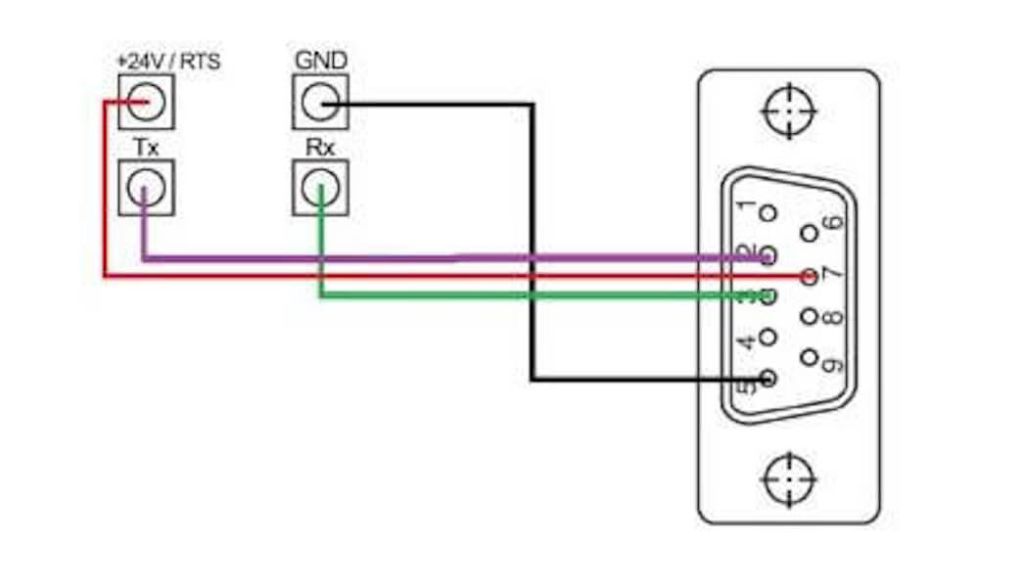

SCI-Protocol RS232
38400 Baud, 8 Databits, no parity, 1 Stopbit (38400, 8, n, 1)
Supply 6-25V DC
Typ. supply current 5mA
Max. startup time
150ms

Technical data:

Storage and transportation temperature -20°C ... +75°C
Operating temperature -20°C ... +75°C
Protection class IP20

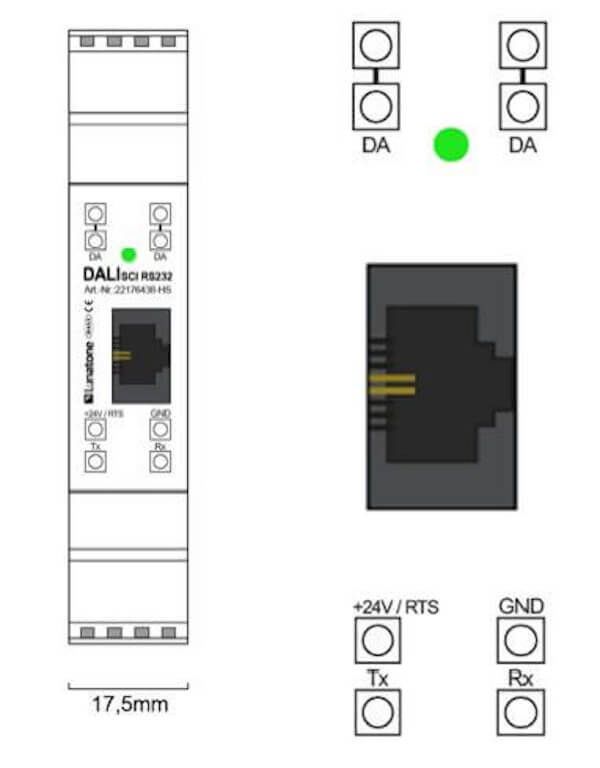

Connectors RS232 Screw terminals (max. 2.5mm²)
RJ45 socket
Connectors DALI max. 2,5 mm²

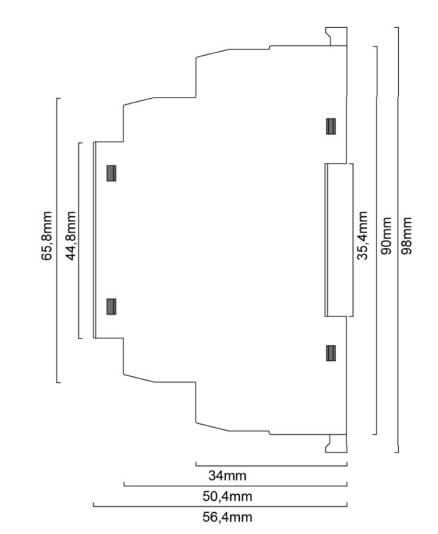

Mounting din rails>


Art. No. 22176438-HS replaces:
  • Art. Nr. 86458525 (DIN-Rail)
  • Art. Nr. 22176438 (DIN-Rail RJ45)
  • Art. Nr. 24166096 (Mouse)
Related links to "Lunatone RS232 interface bidirectional data traffic"
Communication interface between a PC (or PLC) and modules in a DALI lighting system. more
Features/tags of this product family. Please refer about the details in the description or datasheet.
Application/IP-Code: IP20 - IP44 (Indoor)
Dimmable/Control: DALI, DALI2, RS232
Datasheet 22176438-HS
Read, write and discuss reviews... more
Customer evaluation for "Lunatone RS232 interface bidirectional data traffic"
22 Oct 2020

Einfache Einrichtung.

Das Interface läßt sich problemlos mit dem Cockpit zur Konfiguration eines DALI-Systems nutzen. Auch die Nutzung via RPi o.ä. klappt problemlos (Pegelwandler nicht vergessen ;-) Letzteres ist für mich der Hautpanwendungszweck.

Write an evaluation
Evaluations will be activated after verification.
I have read and understood the Privacy policy.

The fields marked with * are required.

DALI PS1 Power Supply DALI PS1 Power Supply
174.39€ *
Order number: CTR-76751056
DALI PS2 ceiling installation LUNATONE DALI Power Supply PS2
From 63.80€ *
Order number: 529-24033444-2

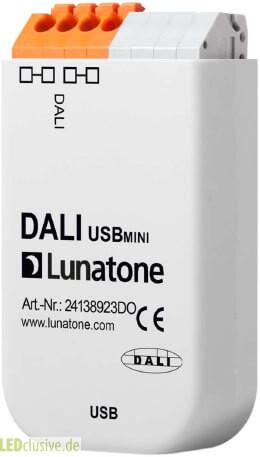

DALI USB interface product picture DALI USB module
