Built-in LED power supply 7W with constant current/constant voltage

19.90€ *
Net price: 16.72€
Content: 1

Prices incl. VAT plus shipping costs

Please select a variant first

Voltage/Current:


piece

Built-in LED power supply with constant current and voltage 24V 350mA / 12V 700mA - for high... more

Built-in LED power supply with constant current and voltage 24V 350mA / 12V 700mA - for high power LEDs

This LED power supply is ideal for the operation of high power LEDs. The module has screw terminals and is used both as a power supply with a constant output current and as such with a constant output voltage.

Further features:

  • Power supply built-in with constant output current for high power LEDs
  • With screw terminals
  • Protection against overheating, overload and short circuit
  • Also usable as power supply with constant output voltage:
    • Connect 12V / 24V 5,95W / 8,4W LEDs parallel

Note:
Do not insert switches into the secondary circuit!
Only connect high power LEDs in series!



Technical data:

Nominal output current 350 mA 700 mA
Article number 401243 401244
Type NE352-7 NE701-7
Input voltage 220..240 Vac
Frequecy 50..60 Hz
Output power 1,05..8,4 W 2,1..5,95 W
Operating output voltage 3..24 Vdc 3..8,5 Vdc
Max. output voltage 24 Vdc 12 Vdc
Power factor acc. to EN61000-3-2 0,6
Ambient temperature 50 °C
Rated max. temperature 85 °C
Thermal protection yes
Overload protection yes
Short circuit protection yes

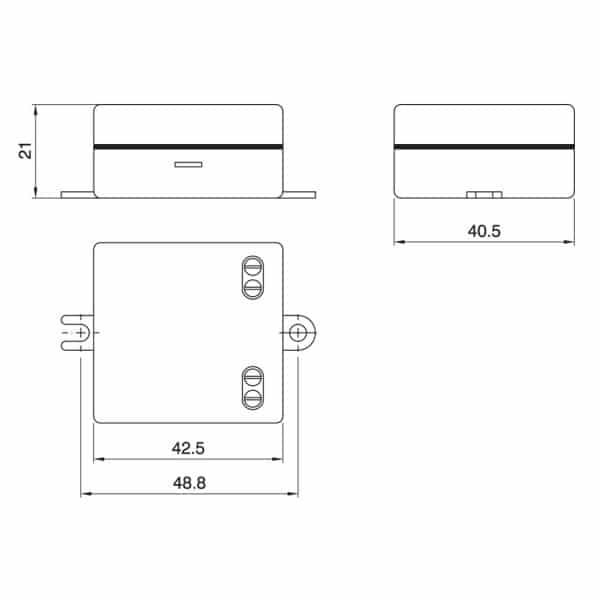

Dimensions 42,5x41x21 mm

For further information please refer to the data sheet in the Download tab.

Related links to "Built-in LED power supply 7W with constant current/constant voltage"
Built-in LED power supply for high power LEDs up to 8.4W, 24V 350mA / 12V 700mA, power factor... more
Features/tags of this product family. Please refer about the details in the description or datasheet.
Constant Voltage: 12V, 24V
Application/IP-Code: IP20 - IP44 (Indoor)
Constant Current: 0,7A, 0,35A
Power range: 5 - 20 W
Data sheet power supply 7W
