Meanwell LPF-16-xx "type" A Power supply of Meanwell LPF-16 has a 16W dual mode constant... more
Meanwell LPF-16-xx "type"
A Power supply of Meanwell LPF-16 has a 16W dual mode constant voltage and a constant current output, as well as an integrated active PFC function. The power supply operate with input voltage 90 to 305 V AC, there are models with different nominal voltage from 12V to 54V. The power supply operates as a constant voltage power supply until reaching the maximum charges, and switch then into the contant current range. Protective circuits avoid damage to the power supply and the load.
The product offers excellent energy saving possibilities thanks to its high efficiency and low power dissipation, thus enabling compliance with the latest international lighting regulations.
Due to the rugged design and high protection against dust and moisture, it can be used in many indoor and outdoor LED applications.
This LED power supply provides a constant current, constant voltage or a combination of constant voltage and current with fixed or adjustable values.
Thus, the Meanwell LPF-16 LED switching power supply is ideal e.g. in version -12 for the operation of 12V lamps, such as low-voltage LED spotlights MR16 / GU5.3 or MR11, as well as LED stripes. Up to a power of 16W, several lamps can be connected to a single transformer. Cost savings!
LPF-16 Features (type dependent):
- 5 years manufacturer guarantee
- Type LPF for use according to Class II
- Universal AC input up to 305V AC
- Overload protection by current limiting, auto recovery
- Integrated PFC circuit
- Low idle power
- Plastic housing
- Self Cooling by free air convection (temperature protection)
- Protection against short circuit, overvoltage and overload (temperature protection)
- IP30 protection
- LED lighting, especially street lighting
Meanwell LPF power supplies are also available as a LPF-16D variant. This power supply is distinguished by its 3 in 1 dimming function (external voltage 1 to 10 Volt DC, PWM, potentiometer).
For more information about dimming via DALI and PWM, please refer to this article:
DALI PWM solution for dimming of LED technology
Technical data for the Meanwell power supply LPF:
|Model||Switching power supply|
|Rated Power||16,08 - 16,20 W (voltage depending, see datasheet)|
|Input||90 - 305 VAC / 127 - 431 VDC|
|Output and operating parameters||See data sheet|
|Frequency range||47 - 63 Hz|
|Switch on current Max.||45 A at 230 VAC|
|Temperature range||-35 ... +70°C|

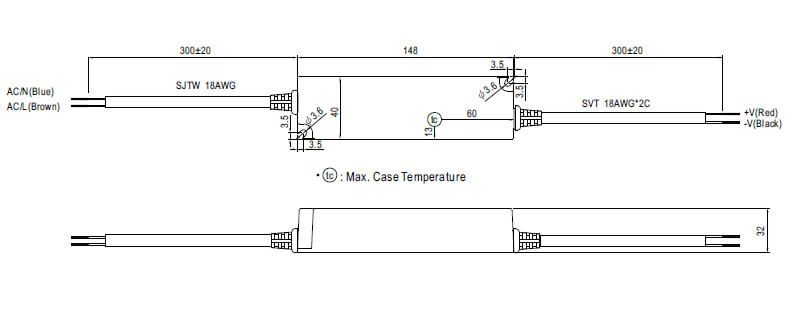

|Dimension||148mm x 40mm x 32mm (H x W x D)|
Related links to "Meanwell LPF-16 power supply 16W"
Meanwell LPF-16 series With a universal AC/DC input right up to 305V AC is the LPF-16 also... more
Features of the product family. Details on variants can be found in the description.
|Constant Voltage:||12V, 24V|
|Constant Current:||0,3A, 0,4A, 0,8A, 0,34A, 0,38A, 0,45A, 0,55A, 0,65 A, 0,65A, 1,05A|
|Power:||9W, 10W, 12W, 15W, 16W|
|Application:||IP3x, IP20 - IP44 (Indoor)|
