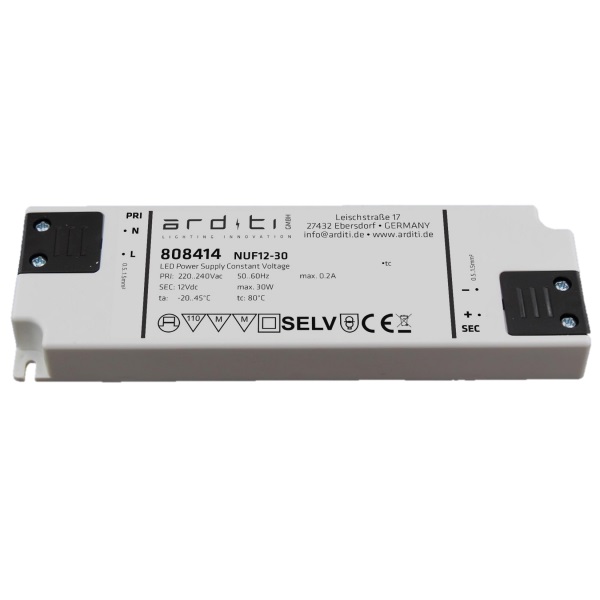

Independent LED power supply flat up to 50W 12V/24V

Variants from 19.24€ *
Net price: 16.17€
Content: 1

Prices incl. VAT plus shipping costs

Please select a variant first

Power:

Voltage:


piece

Flat LED power supply with constant voltage 12V / 24V - high efficiency, short-circuit... more

Flat LED power supply with constant voltage 12V / 24V - high efficiency, short-circuit protection

With its particularly flat design, this highly efficient LED power supply is ideal for special applications with limited space. It can be operated with regulated output voltage (12V / 24V) by connecting the LEDs in parallel. The independent LED module has screw terminals, impressing with comprehensive protection against overheating, overload and short circuit as well as a high power factor. The article is available in six versions with a power of 20W, 30W, 50W and corresponding constant voltage.

Further features:

  • Independent LED power supply with controlled output voltage
  • Small desgin
  • With screw terminals
  • Protection against overheating, overload and short circuit
  • Power factor >0,9

Note:
Do not insert switches into the secondary circuit!



Technical data:

Article number 401295 401296 401292 401286 401297 401298
Type NUF12-20 NUF24-20 NUF12-30 NUF24-30 NUF12-50 NUF24-50
Input voltage 200..240 Vac
Frequency 50..60 Hz
Nominal output voltage 12 Vdc 24 Vdc 12 Vdc 24 Vdc 12 Vdc 24 Vdc
Output power 20 W 30 W 50 W
Power factor acc. to EN61000-3-2 >0,5 >0,9 >0,9
Ambient temperature 45 °C
Rated max. temperature 80 °C
Thermal protection ja
Overload protection ja
Short circuit protection ja

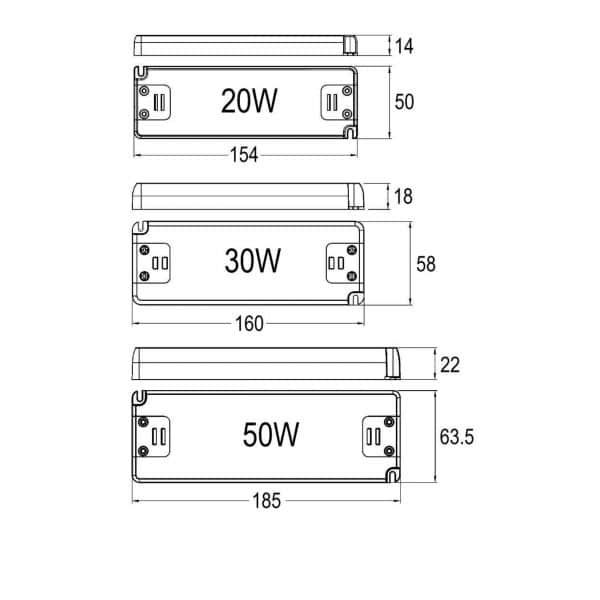

Dimensions 154x50x14 mm 160x58x18 mm 185×63,5×22 mm

For further information please refer to the data sheet in the Download tab.

Related links to "Independent LED power supply flat up to 50W 12V/24V"
Flat LED power supply up to 50W with constant voltage 12V / 24V, high efficiency (power... more
Features/tags of this product family. Please refer about the details in the description or datasheet.
Constant Voltage: 12V, 24V
Application/IP-Code: IP20 - IP44 (Indoor)
Power range: 5 - 20 W, 20 - 50 W
Data sheet power supply 12V
Data sheet power supply 24V
