Independent LED power supply slim 240W 24V

97.13€ *
Net price: 81.62€
Content: 1

Prices incl. VAT plus shipping costs

Delivery time 5-10 workdays*


High power 240W LED power supply with constant voltage 24V - extremely efficient, short-circuit... more

High power 240W LED power supply with constant voltage 24V - extremely efficient, short-circuit protection

This highly efficient LED power supply can be operated with a regulated output voltage of 24V by connecting the LEDs in parallel. The independent LED module has screw terminals, impresses with comprehensive protection against overheating, overload and short circuit, and a very high power factor of 95%.

Further features:

  • Independent LED power supply with controlled output voltage
  • Connect LEDs in parallel
  • With screw terminals
  • Protection against overheating, overload and short circuit
  • Power factor 95%
  • Inrush current 75A


Technical data:

Article  number 808435
Type NUL24-240
Input voltage 200..240 Vac
Frequency 50..60 Hz
Nominal output voltage 24 Vdc
Output power 240 W
Power factor acc. to EN61000-3-2 0,95
Ambient temperature -20..+45 °C
Rated max. temperature 90 °C
Inrush current 75 A; 0,065 ms
Thermal protection yes
Overload protection yes
Short circuit protection yes

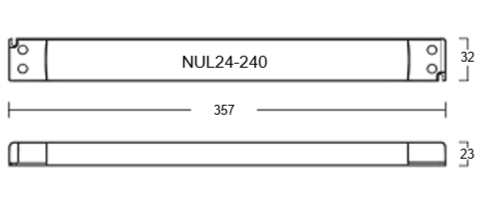

Dimensions 357x32x23 mm

For further information please refer to the data sheet in the Download tab.

Related links to "Independent LED power supply slim 240W 24V"
Slim, very powerful LED power supply 240W with constant voltage 24V, power factor 95%, inrush... more
Features/tags of this product family. Please refer about the details in the description or datasheet.
Konstantspannung: 24V
Verwendung/IP-Code: IP20 - IP44 (indoor)
Leistungsbereich: 100 - 250 W
Data sheet power supply slim 240
