5m Outdoor LED Stripe 24V RGB 60LEDs/m IP67

Product information "5m Outdoor LED Stripe 24V RGB 60LEDs/m IP67"

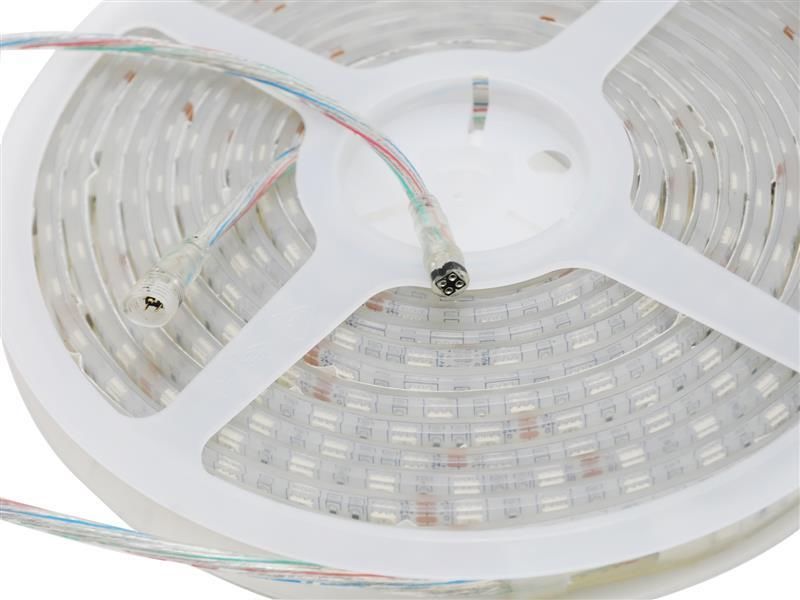

Flexible 24V LED RGB Stripe for outdoor applications with 60 LEDs/m

This LED Stripe is suitable for outdoor applications and is ideal for ambient and mood lighting. With this flexible LED Stripe, shelves or terrariums, for example, or individual steps or edges in the garden can be highlighted by targeted installation. They are best suited if you want to set a certain color or if you want to remain flexible in color.

Incl. the connections as DC socket and DC plug to achieve protection class IP67.

For sustainable operation, please refer to the information on cooling of the LED strips in the data sheet. Cooling can be done e.g. via ALU profiles.

The most important features

  • The supply voltage of 24V allows a wide range of power supplies and use in trucks
  • The beam angle of 120° provides a large-area illumination
  • The mounting density of 60 LEDs/m ensures optimum light distribution
  • With a pitch of 100 mm you can adjust the LED strip to your own needs.
  • RGB technology allows the colors to be set freely
  • Incl. the connections as DC socket and DC plug



Application examples:

  • Effect lighting of cabinets, terrariums and shelves
  • Highlighting individual pieces of furniture with targeted lighting
  • Lighting in the truck sector e.g. for motorhomes or assembly vehicles
  • Increase accessibility by illuminating stairs and other tripping hazards
  • Pleasing lighting in party cellars
  • Set accents in the garden
  • Illuminated advertising
  • Many other outdoor applications possible.


Technical data for LED strips

VersionOutdoor Flexible
Power supply24V dc
Luminous flux200 lm/m
Power14,4 W/m
Assembly Density60 LEDs/m
Protection class

IP67 - dust-tight, protection against temporary immersion

Beam angle120°
Length5000 mm (5m)
Width12,5 mm
Height5 mm
Division100 mm

For further technical information please refer to the data sheet.

In our shop you will find a large selection of matching 24V power supplies

Properties "5m Outdoor LED Stripe 24V RGB 60LEDs/m IP67"
·Amount LEDs/m: 60 LEDs/m
·Application/IP-Code: IP65/67 (Outdoor)
·Color Temperature/Color: RGB/3-Ch
·Constant Voltage: 24V
·Lamp shape: flexible (stripes)
·Power/Meter: 10-20W/m
·rated luminous flux lm/m: less than 500 lm/m
Manufacturer "PUR-LED GmbH & Co. KG"

The company made it to their goal, to produce environmental friendly, innovative and especially in high quality. With the brand Trelight, PUR-LED® especially covers the control sector of multicolored LEDs. The Trelight-series can be controlled via wallswitch, radio or downloadable app, depending on the product.
