Alu H-Profile XXLine High silver with cover 1-5m in one piece

Variants from 39.23€ *
Net price: 32.97€
Content: 1 Meter

Prices incl. VAT plus shipping costs

Please select a variant first

Cover:

Length:


Meter

  • ALU-945191830-100-13
  • ALU-945191830-100-13
  • 0.12 kg
  • PUR-LED GmbH & Co .KG
Alu H-Profile XXLine High silver with cover 1-5m in one piece The aluminum ensures a nice... more

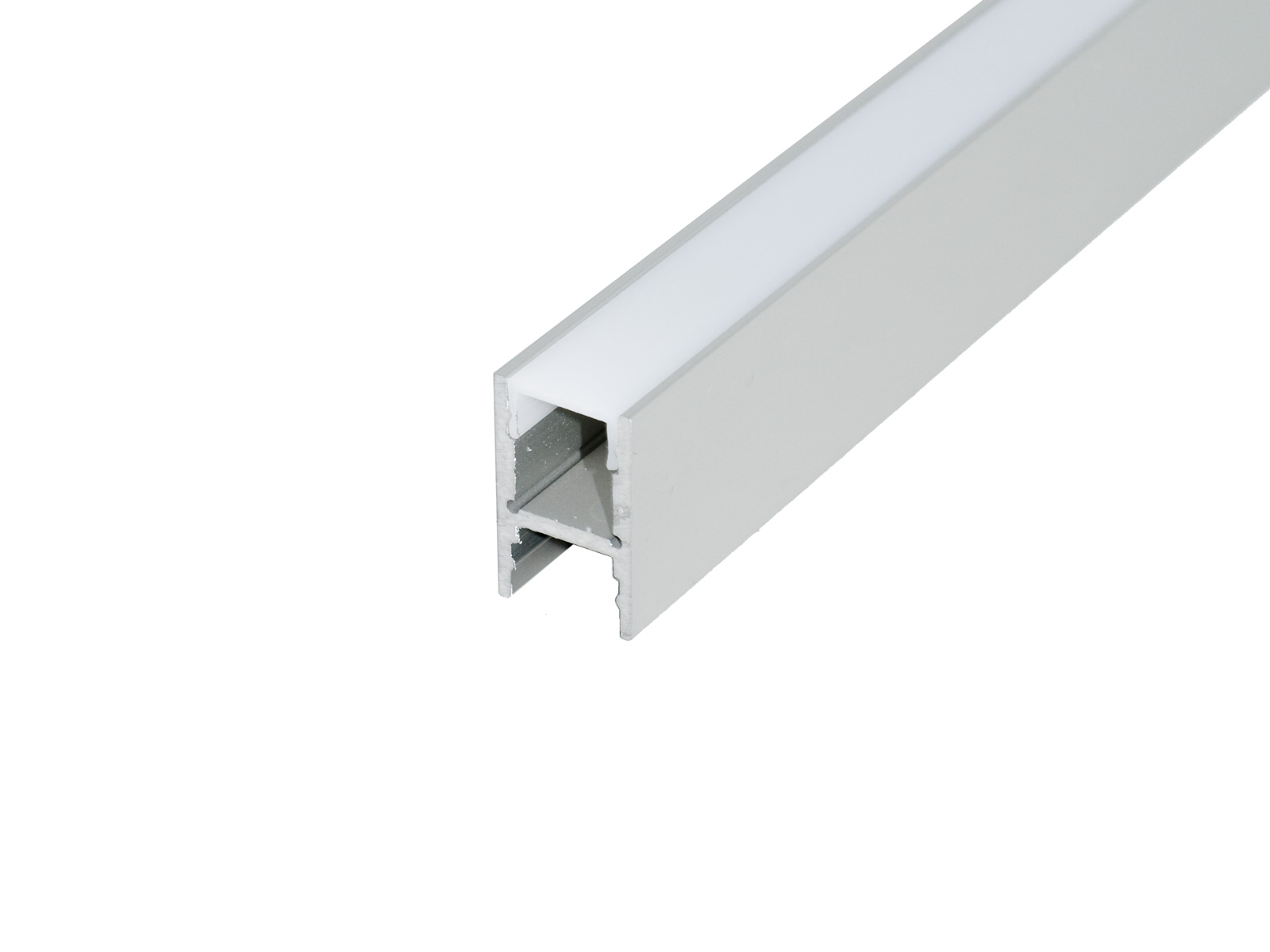

Alu H-Profile XXLine High silver with cover 1-5m in one piece

The aluminum ensures a nice look and at the same time sufficient cooling of the LED stripes.
The material is anodized aluminum. The cover can be clipped in. A special feature of this profile is the second chamber (cable duct) in which the supply lines can be laid out of sight.

Info: We are happy to offer you individual cuts of our XXLine aluminum profiles on request.

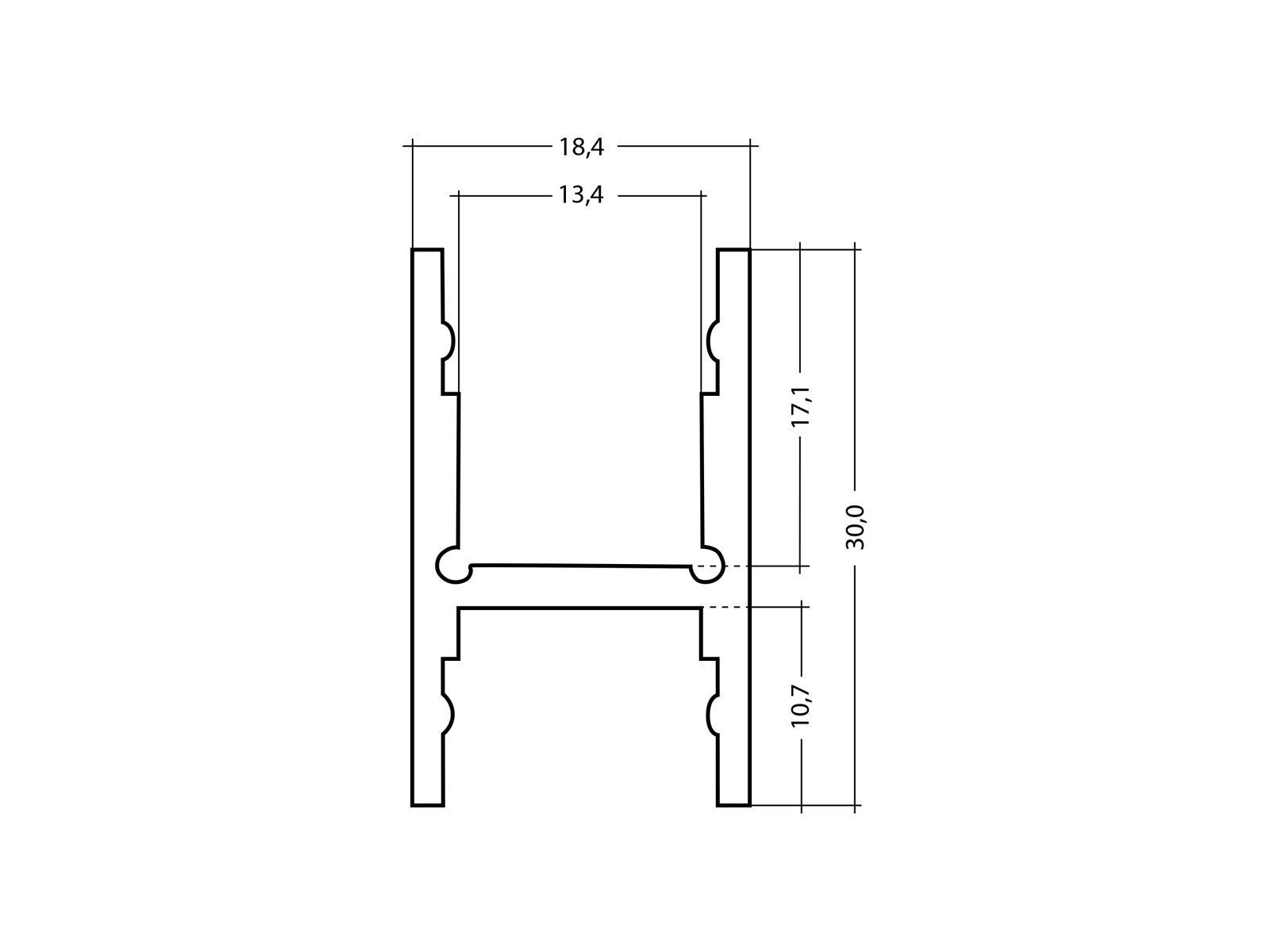

Technical specifications:

Dimensions (LxWxH) in mm: 1000-5000 x 18.4 x 30
Inner dimension: 13.4mm

The following cover variants are available:

  • Opal white cover (the light is strongly diffused and has a glare-free effect)
  • Opal white cover, non-slip
  • Clear cover (the LED light source is visible, but the highest light transmission is visible on the circuit board)

Application areas:

  • Ceiling lighting
  • wooden furniture
  • Cabinets
  • Business expenses
  • Exhibition construction

Scope of delivery:

  • LED aluminum profile XXLine High, 1-5m length
  • Opal or clear cover
  • without lamps

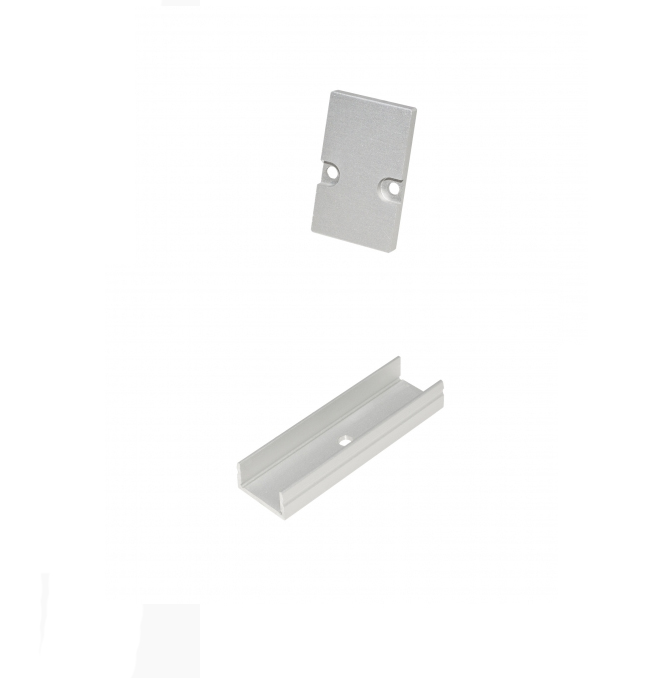

  • without end cap and bracket
Related links to "Alu H-Profile XXLine High silver with cover 1-5m in one piece"
30mm high LED aluminum H-mounting profile with cover, Length 1 - 5 meter more
Features/tags of this product family. Please refer about the details in the description or datasheet.
Lamp shape: Cooling profile gen.
Power/Meter: > 20W/m
