Battery operated surface mounted vibration sensor for CASAMBI networks

Product information "Battery operated surface mounted vibration sensor for CASAMBI networks"

Battery-powered surface-mounted vibrations sensor for CASAMBI networks

The battery-operated built-on vibration sensor for CASAMBI sends a radio signal to the CASAMBI network in the event of a shock (sensitivity adjustable with a trimmer). The vibration sensor can be configured and used in a variety of ways on smart devices (with Apple or Android) with the CASAMBI app. So e.g. b. controlling lights, triggering scenes and much more is possible. The vibration sensor is compatible with "Evolution" networks.

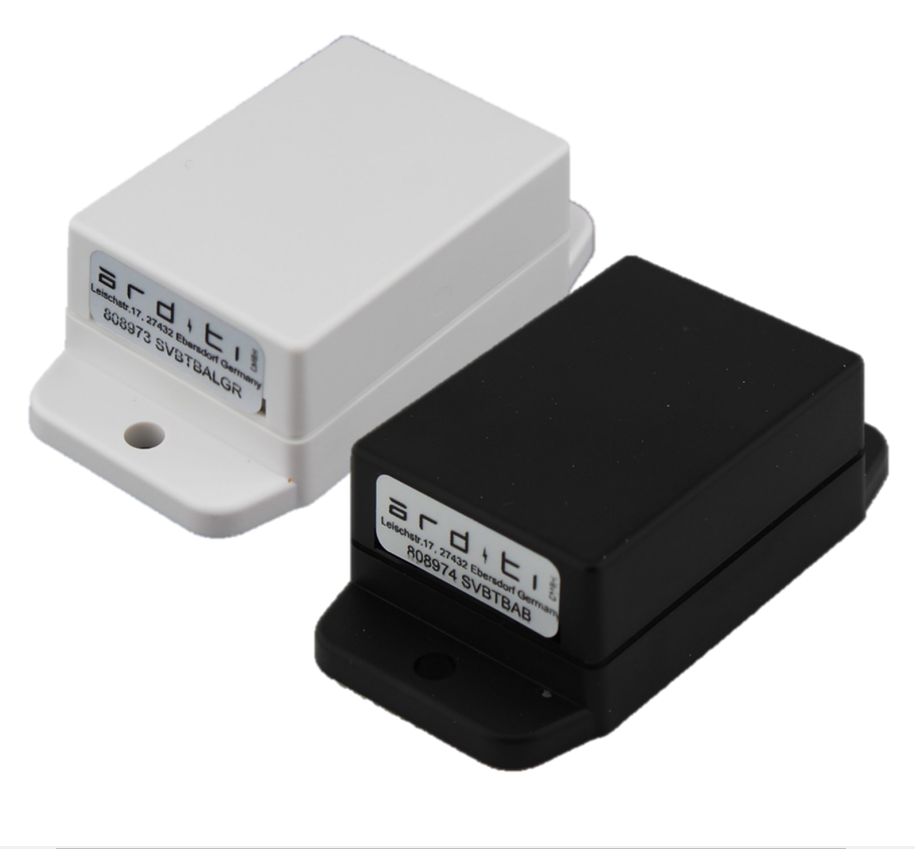

The CASAMBI vibration sensor is available in the colours

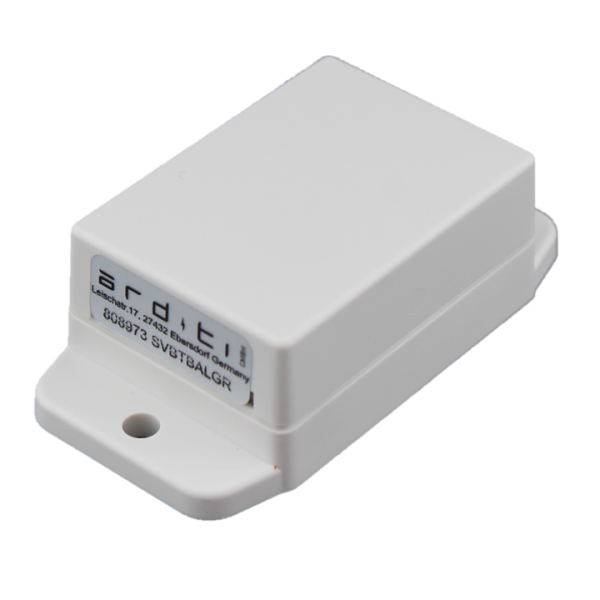

  • lightgrey (808973)

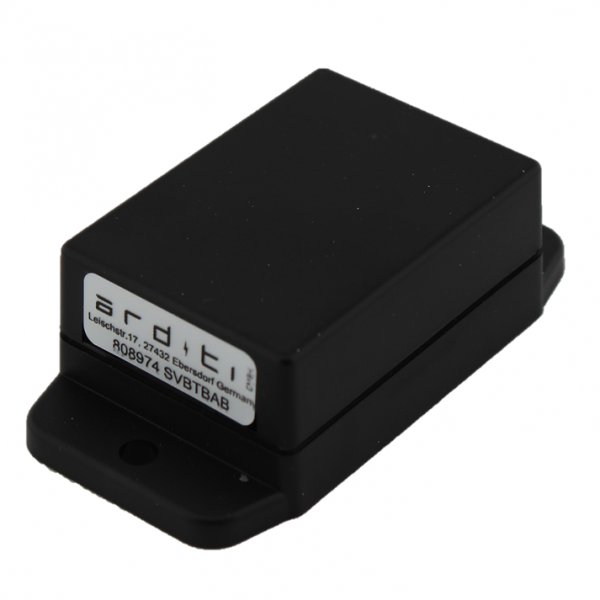

  • black (808974)

Specifications - 808973 - 808974

power input3 Vdc
radio signal2,4..2,483 GHz; 4 dBm
Max. range / outdoormax. 14 m, 70° horizontal, 128 Zonen30 m / 50 m
ambient temperature-20..+50 °C
Degree of protectionIP 20

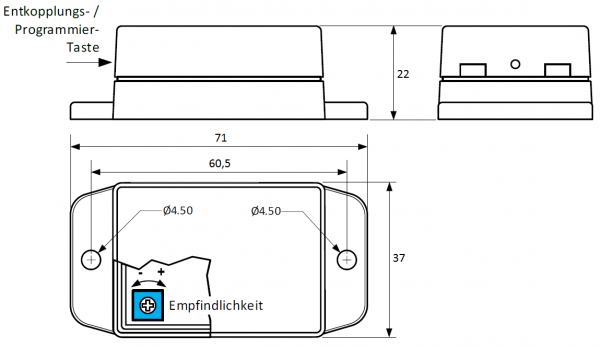

dimensions71 x 37 x 22 mm


  • wireless installation
  • battery powered
  • Battery included
  • Easy to use:
    Changing the battery: Press in the long sides, lift off the cover (unscrewing not required)
    For decoupling: Microswitch behind hole in housing with metal pin or similar. push i


Properties "Battery operated surface mounted vibration sensor for CASAMBI networks"
·Application/IP-Code: IP20 - IP44 (Indoor)
·Dimmable/Control: BT4.0 (2,4 GHz), Casambi radio
Manufacturer "Arditi GmbH Lighting Components"

Arditi GmbH is a subsidiary of the Italian Arditi Spa near Bergamo. The range is broadly diversified and includes switches, dimmers, sockets, bases, wires, transformers and accessory. In the meantime, Arditi has made a name in the sector of LED-technology. The company offers LED-modules in various forms, transformers and drivers, as well as LED-suppliers.
