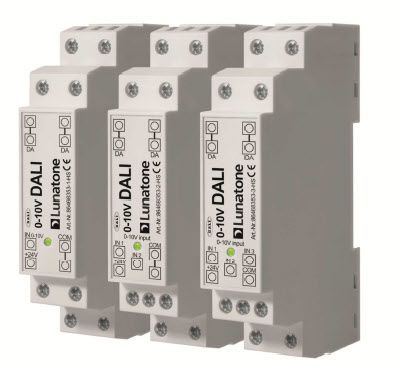

Converter from 0-10V to DALI for DIN rail

Variants from 87.82€ *
Net price: 73.80€

Prices incl. VAT plus shipping costs

Please select a variant first

Version:


piece

0-10V to DALI converter (1, 2 or 3-channel) for DIN rail mounting The compact module... more

0-10V to DALI converter (1, 2 or 3-channel) for DIN rail mounting

  • The compact module converts 0-10V control signals into DALI dimming levels
  • The 0-10V input is passive, that is the reason why the module does not supply voltage. Thus, it is suitable for control with 0-10V analog signal

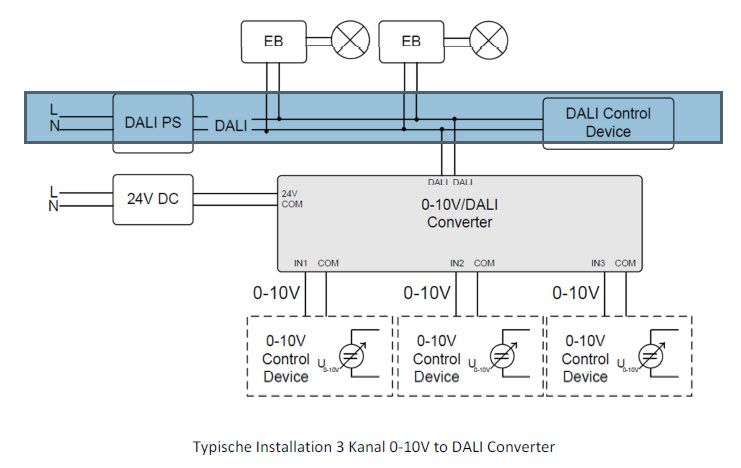

  • The read-in 0-10V voltage is sent as a dimming value to the desired effective range in the DALI circuit
  • To trigger the process, the 0-10V input voltage >1% is changed
  • The module is powered by external 12V to 24V
  • For operation, this module requires a DALI bus supply. (DALI PS1 or PS2)
  • With the help of DALI-Cockpit and DALI-USB interface, the module can be programmed in terms of effective range, conversion characteristics and OFF function
  • Between DALI bus and 0-10V input or 24V supply is a galvanic isolation
  • The device is available with 1, 2 or 3 channels


Technical data of the 0-10V to DALI converter:

Type 0-10V to DALI converter
Product No. 86468353-1-HS 86468353-2-HS 86468353-3-HS
Power supply 12V-24V
Input current 5mA
Input 1 x 0-10V/0,1mA 2 x 0-10V/0,1mA

3 x 0-10V/0,1mA

Output DALI
Ambient temperature -20°C to 60°C
Assembly DIN rail
Protection class IP20
Cross section connecting wires up to 2,5 mm²
Dimensions 98 x 56 x 18mm

For further details on the Lunatone 0-10V to DALI converter please see the manufacturer's data sheet (download tab)
