DALI-2 4Ch 4-channel module for controlling 4 relay contacts via DALI DT7

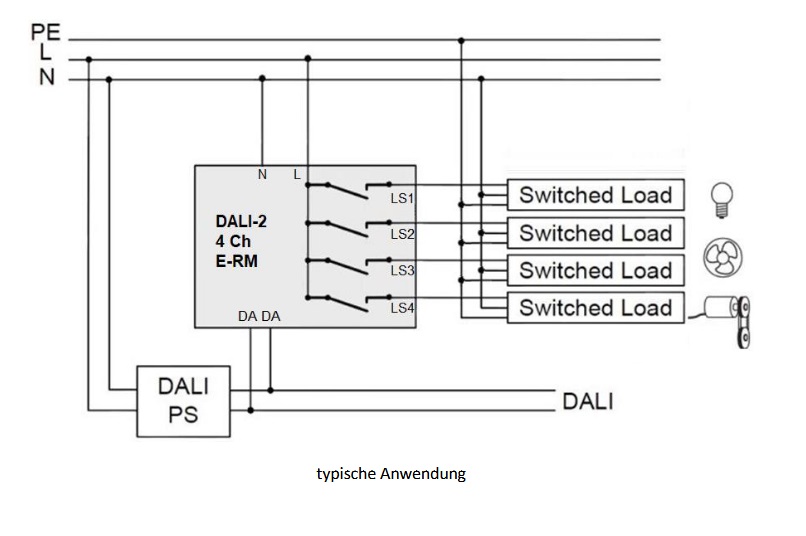

With the DALI-2 4Ch E-RM, you can easily integrate 230V loads without a DALI input into your DALI system and conveniently control them via DALI commands. This module offers 4 individually addressable relay contacts that can be controlled via the DALI bus (DT7). Each channel has its own unique DALI address to ensure maximum flexibility and is designed as control gear for non-dimmable loads. The 86450563-HS complies with the standard for DALI Device Type 7.
The top-hat rail housing is suitable for installation in the switch cabinet. The PC software DALI Cockpit can be used to preset which switching state is assumed in the event of power-up and bus failure, as well as scene values, groups, DALI parameters and device-specific Settings.
Specification, characteristic data 86450563-HS
| Technical Data | |
| Operating temperature | -10°C bis +45°C |
| Protection class | IP40 / IP20 |
| Mounting type | top-hat rail housing |
| Electrical data | |
| Input voltage range | 9,5V … 22,5V |
| Max. current consumption DALI | 4mA |
| Device function | |
| Device type | 4-channel electronic relay module |
| Housing and dimensions | |

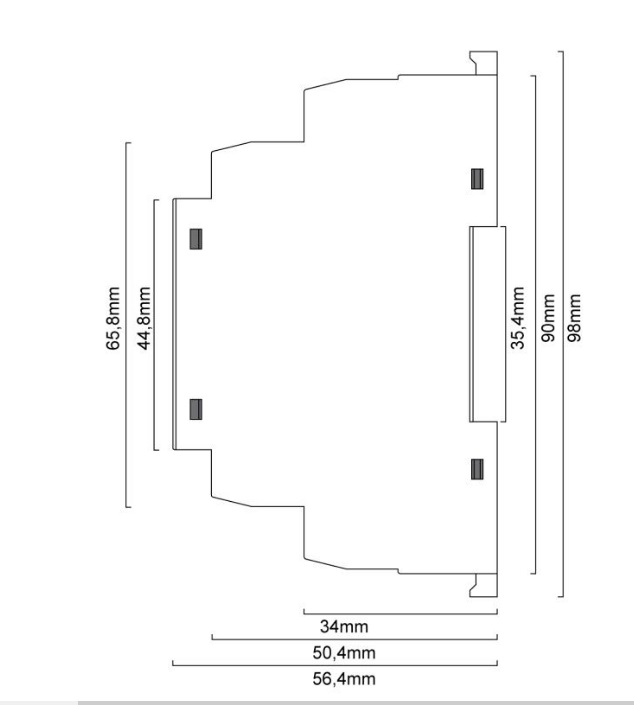

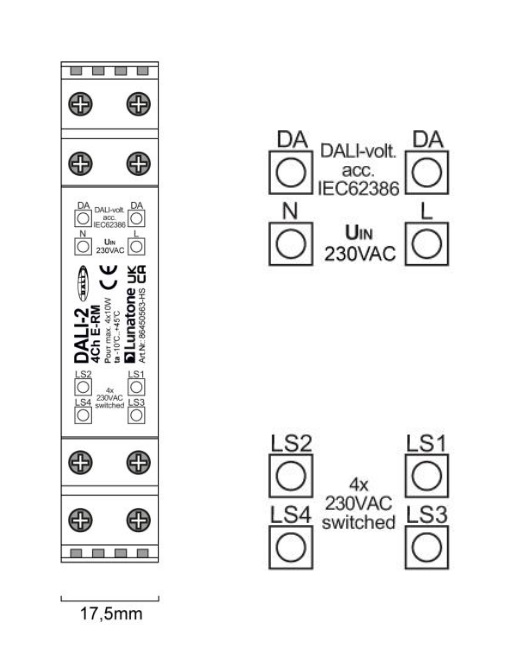

| Dimensions (L x B x H) | 98mm x 17,5mm x 56mm |
| Colour | Grey |
For further information, please refer to the data sheet in the download tab.
| ·Application/IP-Code: | IP20 - IP44 (Indoor) |
|---|---|
| ·Dimmable/Control: | DALI, DALI2 |
| ·Lamp shape: | DIN Rail |
Intelligent light control, in particular thanks to the universal DALI Enocean controller for wireless transmission of DALI signals. Professional solution to implement DALI projects without additional lines on the input side.
