DALI CDC Control module

193.21€ *
Net price: 162.36€
Content: 1

Prices incl. VAT plus shipping costs

Please select a variant first

Version:


piece

Circadian Daylight Control Device The DALI CDC enables a day time based adjustment of colour... more

Circadian Daylight Control Device

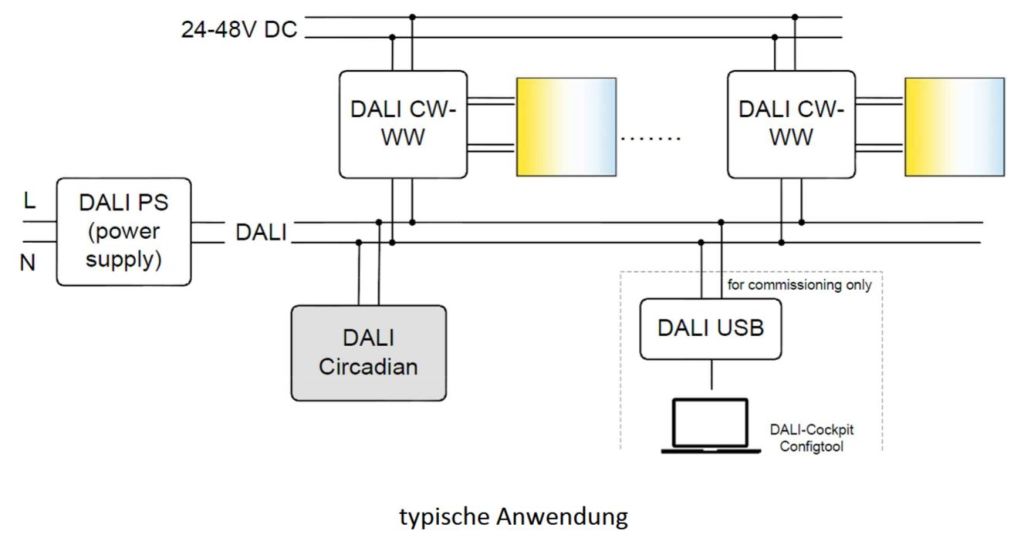

The DALI CDC enables a day time based adjustment of colour temperature and light level for Tunable White capable DALI DT8 luminaires (circadian daylight curve). The curve can be adjusted to fit the respective application.


Overview:

  • Control device for DALI DT8 luminaires (color mode Tc)
  • Biorythmic time-adjusted Tc reference value
  • DALI real time clock
  • Automatic summer / winter time changeover adjustable
  • Configurable scene behaviour (firmware 1.5+)
  • Lightlevel curve (firmware 2.0+)
  • The clock and the Tc characteristics over time can be configured with the help of the DALI Cockpit software too
  • The DALI CDC module must not be connected to the mains. It is supplied directly via the DALI signal line
  • Battery inside, clock is set to local time (GMT+1) as factory defaul
  • Simple installation due to DALI double-clamp connector
  • Types for backbox installation and dinrail mounting, suitable for installation in protection class II devices
Type DALI Daylight Control
Article number 89453853 89453853-HS
Electrical data
Supply aus DALI Bus
Current consumption 5mA (DALI)
Input / Output DALI
Real Time Clock quartz accuracy
Technical data
Ambient temperature 0°C to +50°C
Colour temperature NW/WW
protection class IP20
Connection wire cross section max. 1.5mm²

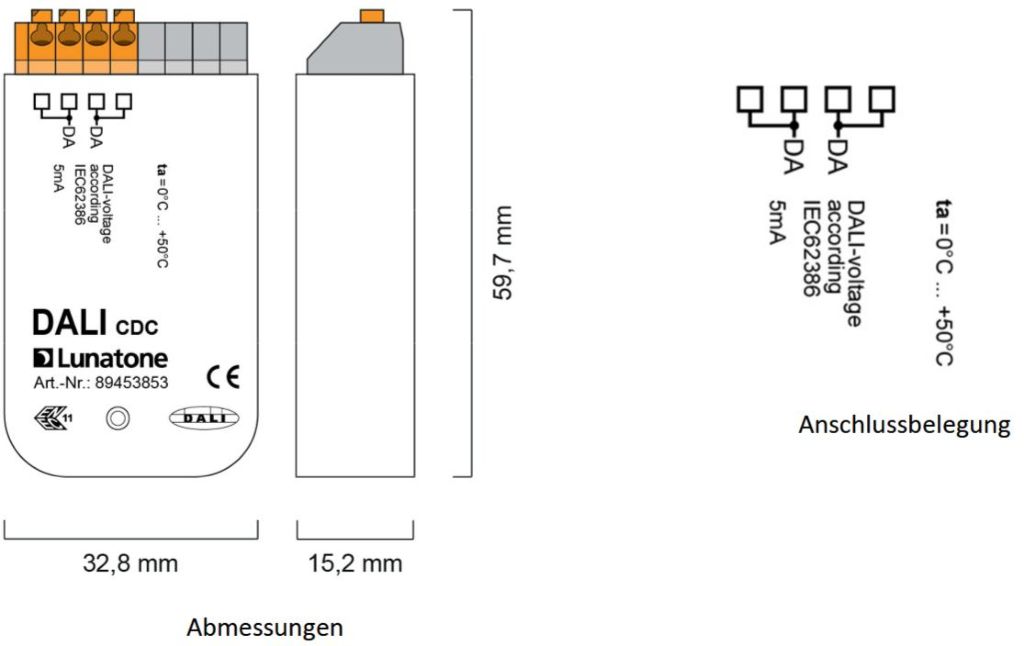

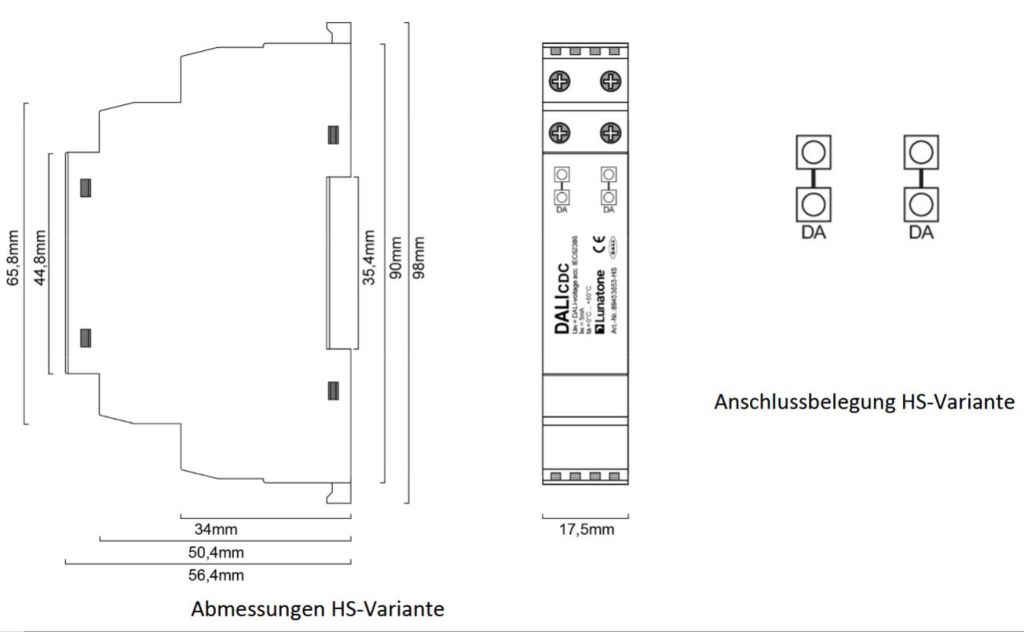

Dimensions (L x W x H) 59mm x 33mm x 15mm 98mm x 17,5mm x 56mm
Mounting Back box integration in class II devices Dinrail mounting

For further information please refer to the data sheet in the Download tab.
Related links to "DALI CDC Control module"
Features/tags of this product family. Please refer about the details in the description or datasheet.
Application/IP-Code: IP20 - IP44 (Indoor)
Dimmable/Control: DALI, DALI DT8
Data sheet DALI CDC Control modu
