Product information "DALI / DALI-2 RTC Timer Real-time clock with switching function"
DALI RTC Timer 86459531 or DALI-2 RTC+ Timer 86457142 for sending time-controlled commands
Functions of the DALI RTC Timer 86459531
- DALI real-time clock
- Configuration and querying of date and time via the DALI bus
- Integrated timer function with up to 28 entries (DALI version)
- Astroclock function (from firmware 2.4)
- Each entry consists of a weekday mask, a time stamp and a DALI command
- Easy creation of the schedule via DALI Cockpit software tool and DALI USB interface
- The DALI RTC module is supplied directly via the DALI bus, no additional connection is required
- Internal battery, the time is set to local time (GMT+1) during production
- Automatic summer/winter time changeover can be set
- Easy installation thanks to DALI double terminal block

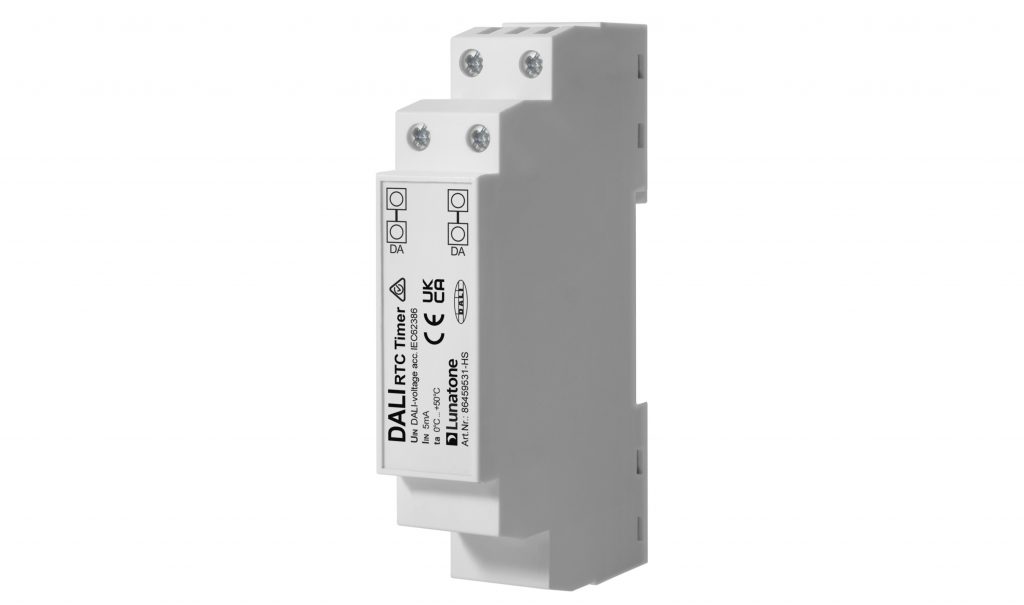

- Variants for box installation and top hat rail
Functions of the DALI-2 RTC+ Timer 86457142
- DALI real-time clock
- Configuration and querying of date and time via the DALI bus
- Integrated timer function with up to 32 entries
- Each entry consists of a weekday mask, a time stamp and a DALI command
- Astroclock function
- Periodic repetitions can be easily realised by entering several time stamps
- Supports common DALI/DALI-2 control commands as well as command sequences (macros), and therefore DT8, Tc control and configuration commands (twice).
- Time switch entries can be activated / deactivated via scene commands.
- Automatic summer/winter time changeover can be set
- Easy creation of schedules via DALI Cockpit software tool and DALI USB interface
- The DALI RTC+ module is supplied directly via the DALI bus, no additional supply is required
- The time and date setting is retained for approx. 3 days after the memory has been fully charged.
- Suitable for box installation and installation in protection class II devices
- Multi-master capable. Several modules can be installed in one DALI circuit
Specification, Characteristics DALI/DALI-2 Timer
| Type | DALI RTC Timer | DALI-2 RTC+ Timer | |
|---|---|---|---|
| Article number | 86459531 | 86459531-HS | 86457142 |
| Supply | from DALI- Bus | ||
| typ. Stromaufnahme | 5 mA | ||
| Input/Output | DALI | ||
| RTC | quartz-precise | ||
| Timer | up to 28 entries programmable | upto 32 entries programmable | |
| Operating temperature | 0°C - 50°C | -20°C - 60°C | |
| Storage temperature | -20°C - 75°C | ||
| Time and date - maintenance if not supplied | - | up to 3 days when fully charged (6h supply) | |
| Protection class | IP20 | ||

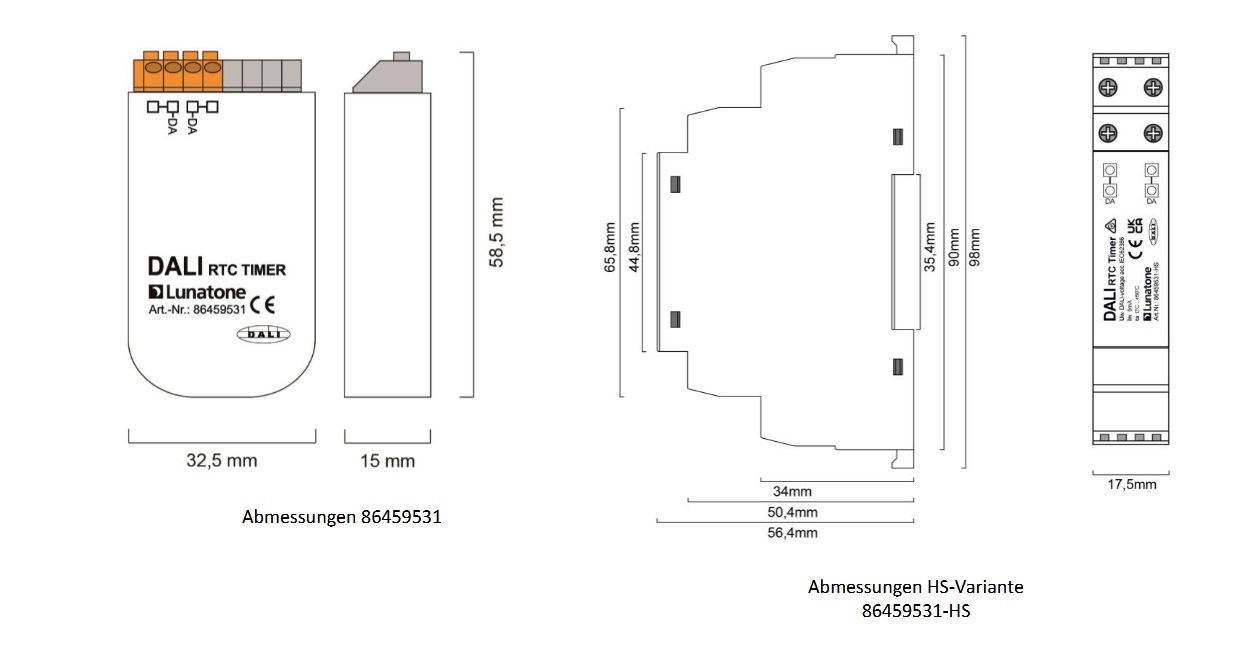

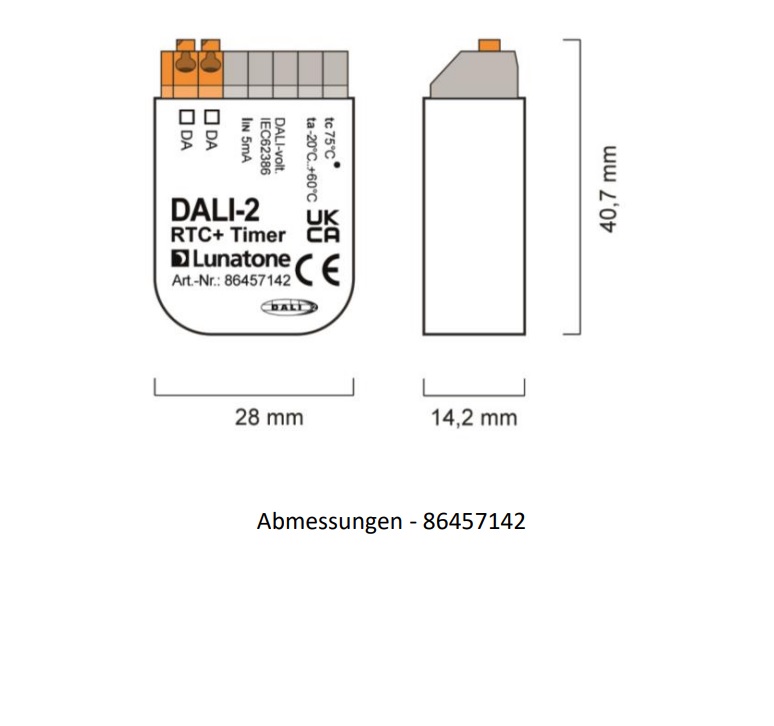

| Geometry | 59mm x 33mm x 15mm | 98 mm x 17,5 mm x 56 mm | 41mm x 28mm x 15mm |
| Connecting wires Cross section | 0.5-1.5 mm2 | ||
| Mounting | Box installation | DIN rail | Box installation |
For further details please refer to the data sheet in the Download tab.
| ·Application/IP-Code: | IP20 - IP44 (Indoor) |
|---|---|
| ·Dimmable/Control: | DALI, DALI2 |
