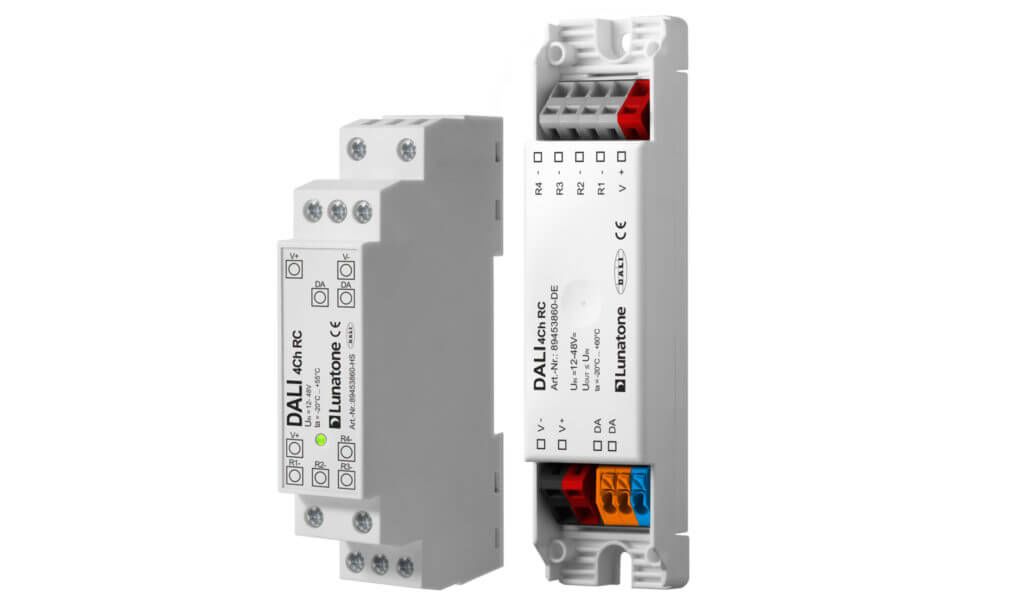

DALI Relais Controller 89453860

Variants from 73.19€ *
Net price: 61.50€

Prices incl. VAT plus shipping costs

Please select a variant first

Version:


piece

DALI Relais Controller with 4 Channels Each channel has its own DALI address. Designed for... more

DALI Relais Controller with 4 Channels

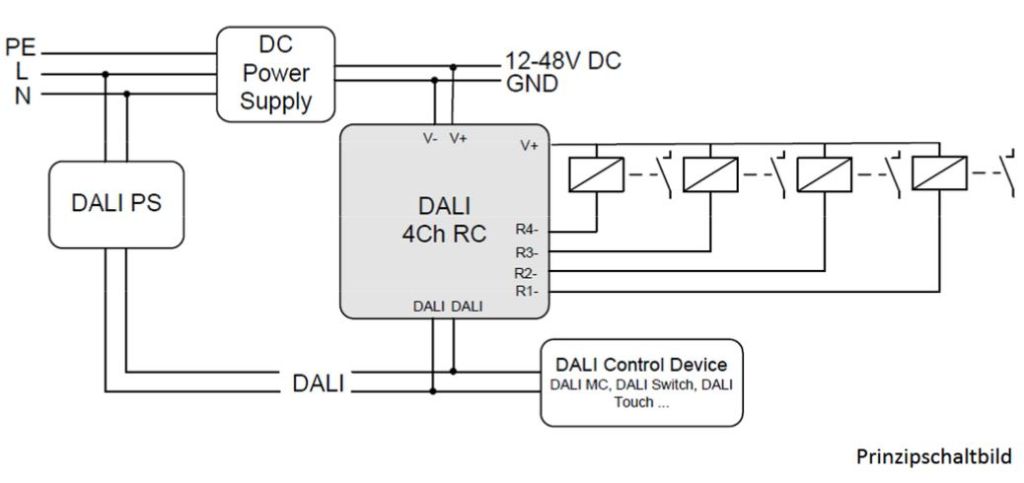

Each channel has its own DALI address. Designed for controlling relays and contactors with 12V to 48V DC control input. Different versions suitable for DIN rail mounting or remote ceiling installation (housing with strain relief) are available.

Overview:

  • 4 channel relay control
  • For the control of switched ballast via DALI
  • Suitable for circuit breakers and relays with coils-voltages of 12V to 48V DC
  • 4 DALI adresses, one for each channel (Device Type 7)
  • Configuration with DALI-Cockpit software tool and DALI USB-Interface
  • 2 types of housing
  • Maximum input current 8A
  • Maximum output current of 2A per channel
Type DALI 4Ch RC
Article number 89453860-DE 89453860-HS
Electrical data
Supply voltage 12VDC-48VDC (= relay coil voltage))
Maximum input current 8A
Max. output current per channel 2A
control input DALI
Number of DALI addresses 4
Typ. current consumption DALI 2mA
Technical data
Power on behaviour programmable
Storing/transportation temperature -20°C...+75°C
Operational ambient temperature -20°C...+60°C
Protection class IP20
Max. connecting wire cross section 2.5 mm²

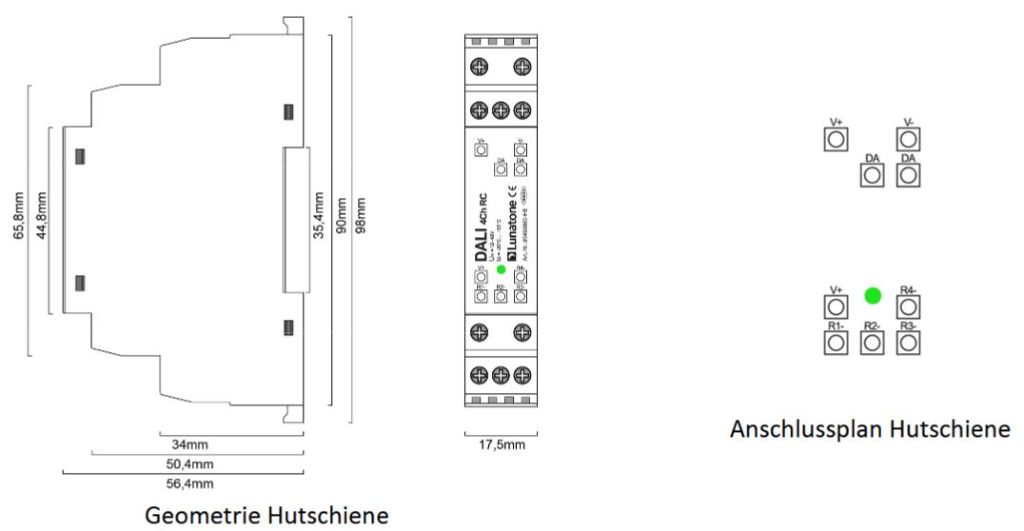

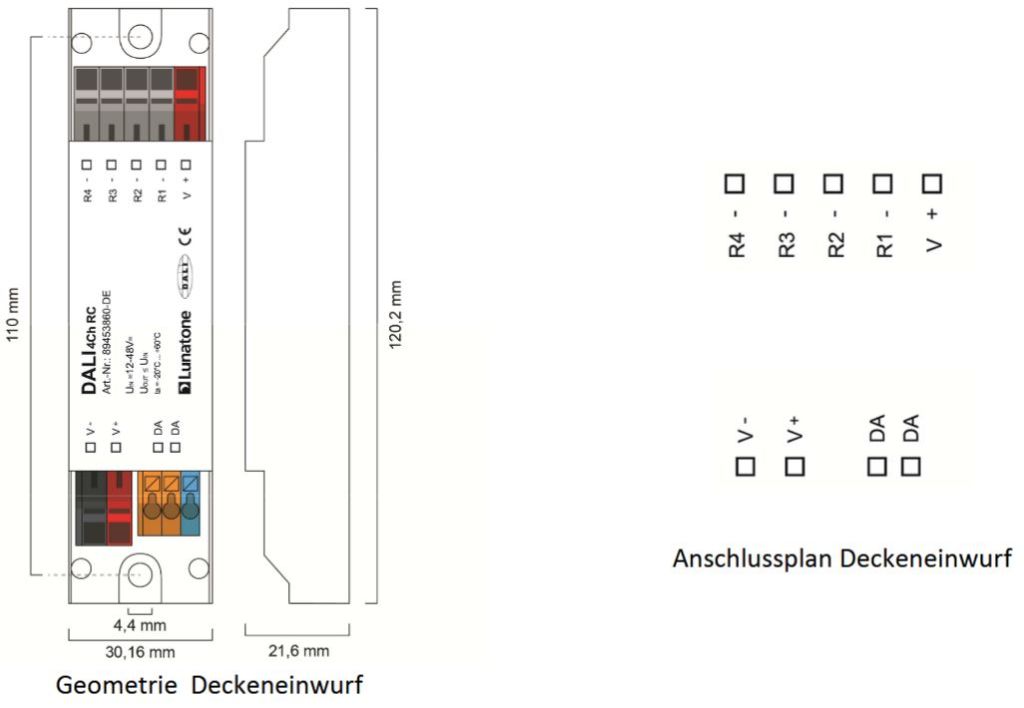

Dimensions 120mm x 30mm x 22mm 98mm x 17.5mm x 56mm
Type of housing Remote ceiling DIN rail

More details about the Lunatone DALI relay controller in the manufacturer's data sheet (see download tab)
Related links to "DALI Relais Controller 89453860"
Features/tags of this product family. Please refer about the details in the description or datasheet.
Application/IP-Code: IP20 - IP44 (Indoor)
Dimmable/Control: DALI
Data sheet DALI 4Ch RC
