DALI Touchpanel, multifunctional 24035465

Lunatone DALI touch panel (operating and control unit) 24035465

with up to 6 freely configurable keys.

This is a multifunctional touch panel for controlling DALI systems with various predefined functions and several freely configurable control panels.

• Operating and control device for DALI systems
• Predefined standard designs for color and color temperature control as well as for switching and dimming with partially freely configurable buttons
• Layouts with freely configurable key assignment, individual layouts easy to insert
• Configuration via DALI-Cockpit and DALI-USB Interface
• Configuration via DALI-Cockpit and DALI-USB Interface
• Each configurable key can be assigned destination address and DALI commands according to layout and functionality.
• Possibility to address single addresses (1-64), groups (1-16), and broadcast
• All typical dimming and switching commands are available as DALI commands for the freely configurable keys
• .
• Multimaster capable, multiple modules can be installed per DALI circuit

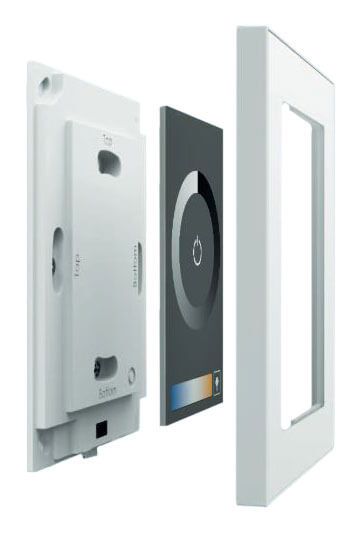

• The module can be attached to a flush-mounted box
• The module is supplied directly via the DALI line

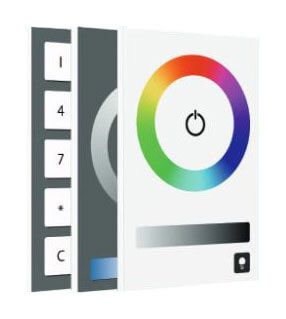

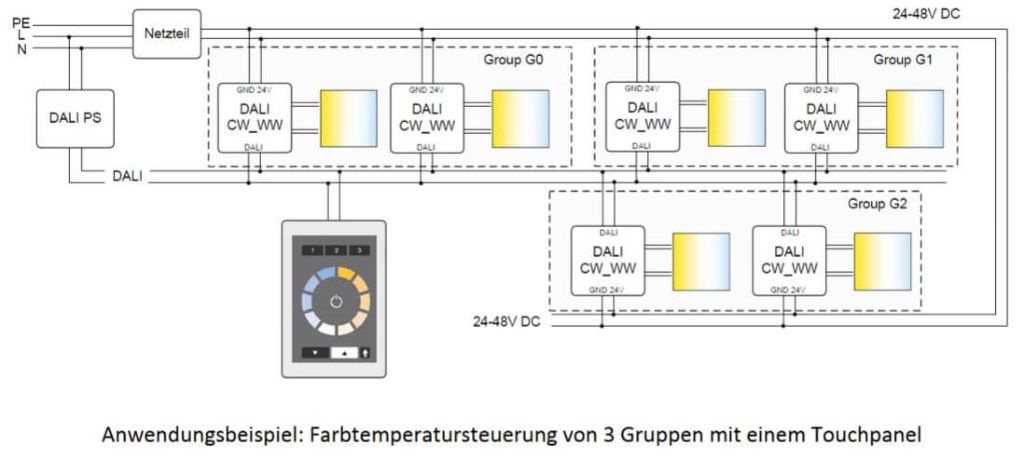

The DALI touchpanel 24035465 from Lunatone enables, for example, the control of several luminaire groups, the retrieval of preset lighting scenes or even the direct specification of colour and brightness. The DALI touch panel is also flexible in terms of design; the control panel can be adapted to any application and environment simply by exchanging the cards supplied.

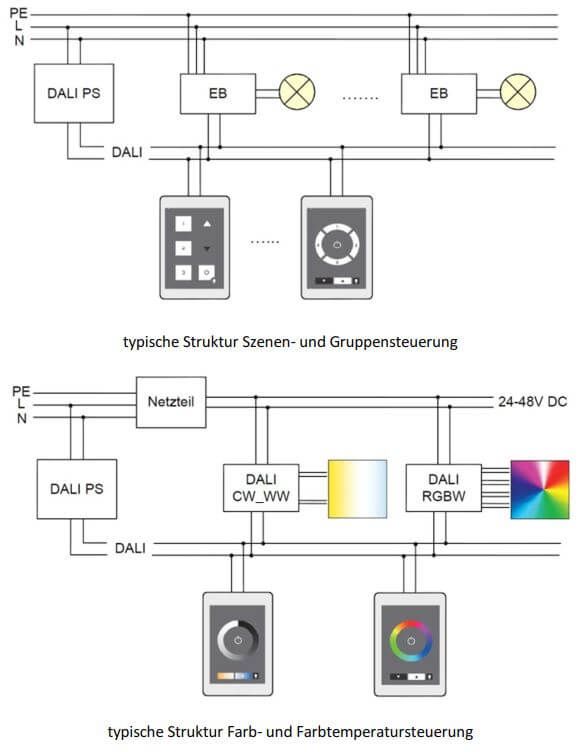

The DALI touch panel is multi-master capable, i.e. several control modules can be installed in parallel in a DALI circuit.

Technical data:

• Supply from DALI bus
• Typical current consumption: 4 mA
• Output: DALI
• Selectable Key layout
• Function programmable
• Temperature 0-50 °C
• Connecting wires Cross section 1.0-2.5 mm²
• Housing material ABS
• Housing color RAL 9010
• Protection class IP20
