BL Xtreme LED Panel 3600LM/60D/840 IP54

Product information "BL Xtreme LED Panel 3600LM/60D/840 IP54"

BL Xtreme LED Panel IP54

The BL Xtreme LED panel from BILTON LEDON, specially developed for use in demanding environments, is robust and robust. It has protection class IP54 and is completely dustproof and splashproof. The robust LED panel also impresses with its uniform light output, flicker-free light and glare-free design with UGR<19.

It is particularly suitable for working environments with above-average material requirements and high visual comfort.

Technical data of BL Xtreme LED Panel:

executionwhite (RAL 9016)
housing materialaluminum frame
rated life50 000 hours
rated luminous flux3600 lm
Luminous efficacy (efficiency)100lm/W
light colorneutral white
Color rendering indexRa 80
rated power32.0 W
nominal voltage27-42VDC
amperage900mA

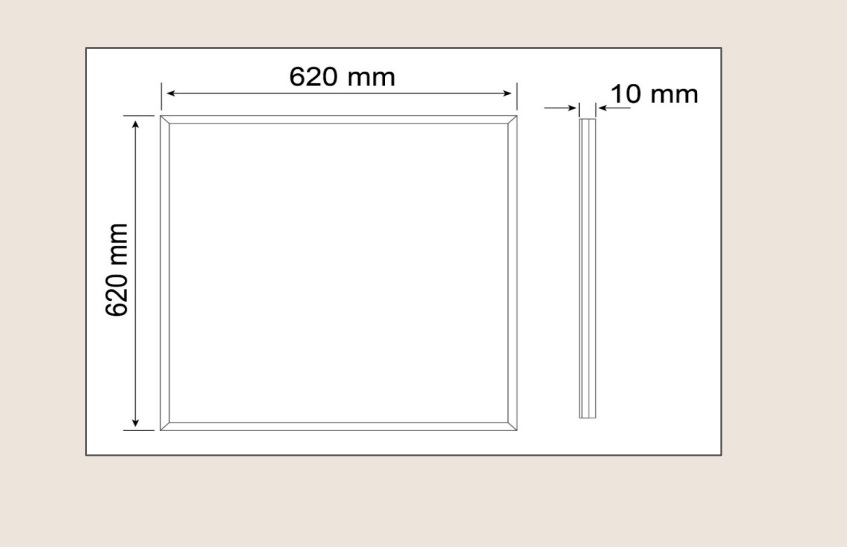

Dimensions (L x W x H)620mm x 620mm x 10
Weight2.6 kg

For further technical data, please refer to the data sheet.

Properties "BL Xtreme LED Panel 3600LM/60D/840 IP54"
·Application/IP-Code: IP65/67 (Outdoor)
·Color Temperature/Color: 4000K
·Lamp shape: Ceiling/wall mounting
Datasheet & further Infos about this product

GALILEO Xtreme Data sheet
Instruction Manual

Manufacturer "BILTON LEDON Technology GmbH"

BILTON LEDON Technology (BLTechnology)

is the high expertise specialist in the LED lighting sector.
From single LED modules to prefabricated x line configurations and LED luminaires Extensive range, the LED technology leader from Austria covers all this with its assortment. Due to the wide product range, the company offers the right product for every customer requirement. BLT. therefore sees itself as a project and system partner in architecture, trade and industry. With a clear focus on high-quality products and innovative, individual solutions, the focus is always on the CUSTOMER.

For more than 10 years we have been offering more than 100 products from the manufacturer BILTON LEDON worldwide.
Below is our portfolio of products. Tip: Use the filter function to quickly find the items you need, or give us a call.

BILTON LEDON Technology GmbH.
Gewerbepark Harham 2 - 5760 Saalfelden - Austria


E-Mail: info@ledon.at
Related links of the manufacturer

0 of 0 reviews

Average rating of 0 out of 5 stars

Leave a review!

Share your experiences with other customers.


Safety instructions

Devices with 230V connection terminals are considered safety-relevant and may only be fitted or installed by qualified electricians or specialist personnel (e.g. IEC 60364, VDE0100, VDE0105).
