HLG-60H-24 power supply from Mean Well

Product information "HLG-60H-24 power supply from Mean Well"

HLG60H-24

The HLG60H is a high performance dust - and waterproof AC-to-DC LED power supply up to 60W. The Meanwell HLG60H - the LED switching power supply is suitable in execution, for example -24A, perfect for for performance among others with 24V lamps, such as  LED Stripes. The high power (up to 60W), many LED lamps can be switched to a single transformer.
Saving of costs! Even in outdoor applications is the HLG60 very suitable due to high protection.

It is also possible to dim via an additional input (Typ B)

HLG60H features (depends on type):

  • 7 Years manufacturers warranty
  • IP65 for indoor or outdoor installations
  • Cooling by free air convection
  • Built-in active PFC function
  • Protections: over -/laod, -/voltage, -/temperature
  • IP65/IP67 for outdoor installations
  • Three possibilities of dimming via 1-10 V, PWM or resistance
  • OCP point adjustable through output cable or internal potentiometer
  • Universal alternate current up to 305VAC
  • Type H for use Class I Zone 2 (gases and vapors)
  • Compliance to worldwide safety regulations for lighting
  • LED lighting especially street lighting applications

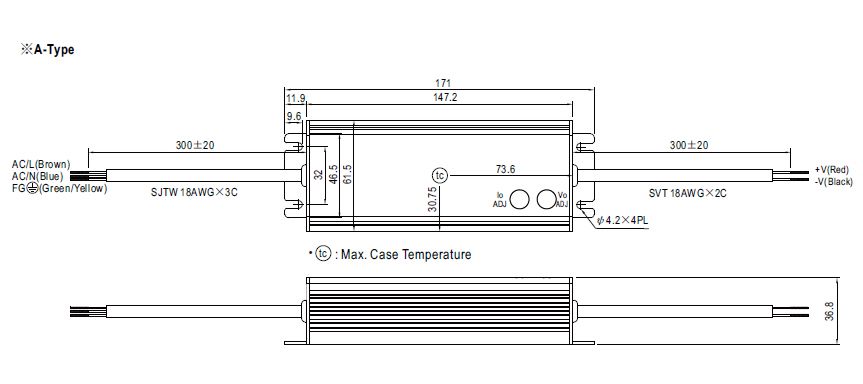

Performance HLG60H Typ - 24 A:

  • IP65 design for indoor or outdoor installations
  • IP65 rated. Output voltage and and constant current level can
  • be adjusted through internal potential meter.

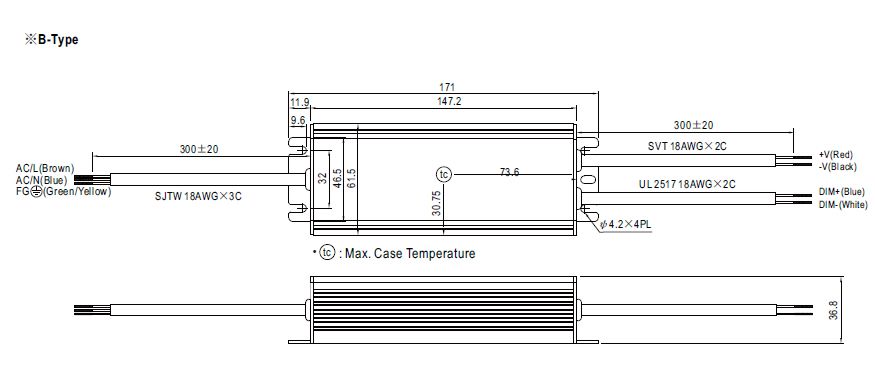

Performance HLG60H Typ - 24 B:

  • Constant current control regulation about 1-10V or PWM entrance, as well as external potentiometer
  • IP67 protection. For indoor -and outdoor applications

Technical data to Meanwell power supply HLG 60W:

Execution For LED and lighting applications
Model Switching power supply, Performance H
Input  90 - 305 VAC / 127 - 431 VDC 47 -63 Hz
Rated Power 60 - 62,1 W (voltage depending, see datasheet)
Surge solidity 4 kV
Output operating parameters  See data sheet
Design  HLG
Approbation  UL / EN Class C
Dimension 228mm x 68mm x 38,8mm (H x W x D)

On request, we also offer type and voltage ranges.

Properties "HLG-60H-24 power supply from Mean Well"
#Kategoriefilter: LED-Trafos- alles mit CV
·Application/IP-Code: IP65/67 (Outdoor)
·Dimmable/Control: 1..10V, PWM
·Meanwell Series: HLG
·Power range: 20 - 50 W, 50 - 100 W
·Constant Voltage: 24V
Manufacturer "MEAN WELL"

Mean Well is a proven manufacturer of powerful and reliable switching power supplies and LED transformers. Mean Well power supplies have been tried and tested in many different ways. The name guarantees quality. The Meanwell HLG series and Meanwell ELG series in particular have become very popular in the LED industry

Related links of the manufacturer

Data sheet (PDF) HLG60H
Meanwell Installation Manual
