K-Fabius Recessed Luminaire 12.9W LED 1,250–1,350lm 60° 80°

Kiteo K-Fabius LED Recessed Downlight

The K-Fabius recessed luminaire from KITEO offers outstanding color rendering (CRI 97) and a 60,500-hour service life in a compact recessed design with flexible control options.

Compact LED recessed downlight with 1,250–1,350 lm, CRI 97, available in 3,000 K or 4,000 K, two beam angles, and two housing colors. Various dimming options available.

Key Features

• Color Rendering Index CRI 97 – Ensures natural and accurate color reproduction – ideal for spaces where color accuracy is essential.
• Luminous flux of 1,250 lm (3,000 K) or 1,350 lm (4,000 K) – Provides sufficient brightness for residential and office environments with a low power consumption of just 12.9 W.
• 60,500-hour lifetime (L80/B10) – Maintenance-free operation for many years – reducing replacement and maintenance costs.
• Selectable 60° or 80° beam angle – Adapts to different room layouts and lighting applications without additional components.
• IP20 or IP65 protection rating – IP20 for dry indoor areas, IP65 for damp environments such as bathrooms or kitchens.

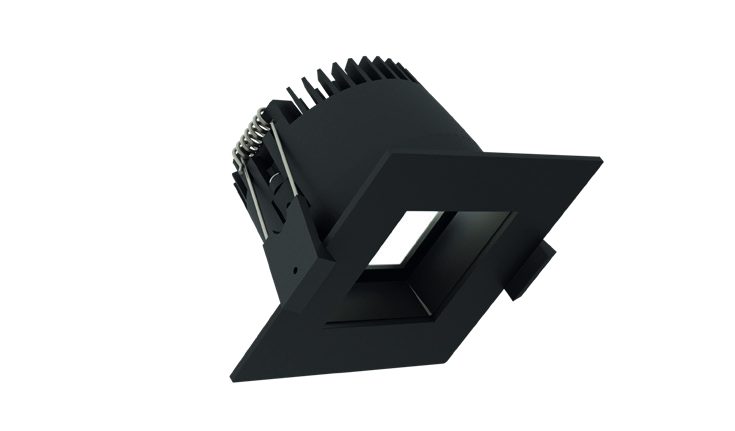

• Housing available in White (RAL 9016) or Black (RAL 9005) – Matches a wide range of ceiling designs and interior styles.
• Multiple dimming options – Easy installation either without additional dimming equipment or with DALI, Casambi, or 1–10 V control.
• Protection Class II with non-replaceable LED light source – Safe installation without protective earth connection; integrated LED ensures long-term reliability.

Applications

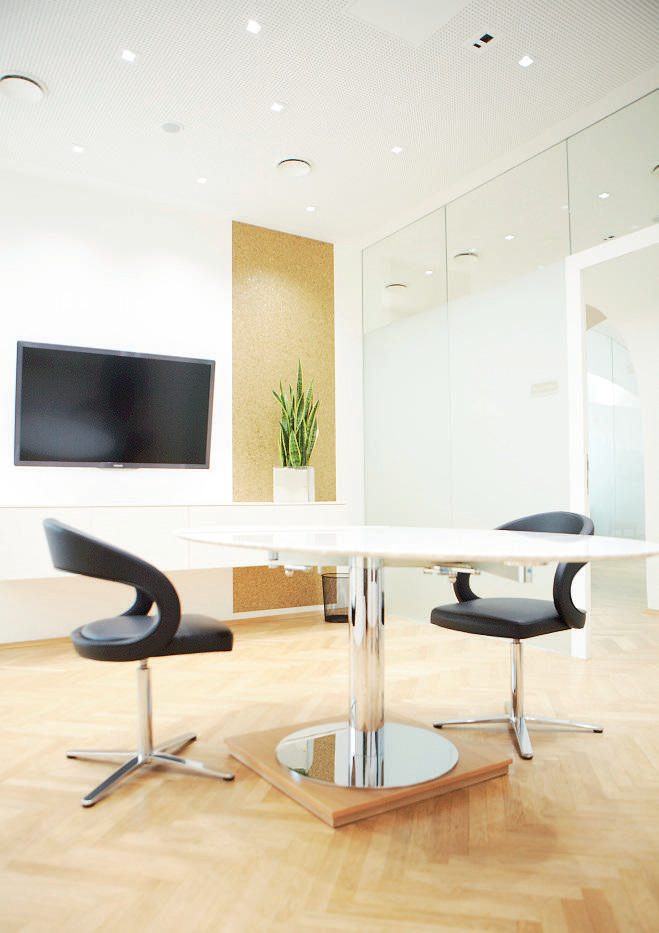

Residential Buildings

Ideal for living rooms and bedrooms, providing comfortable general lighting with excellent color rendering. Available in 3,000 K or 4,000 K to suit different room atmospheres and times of day.

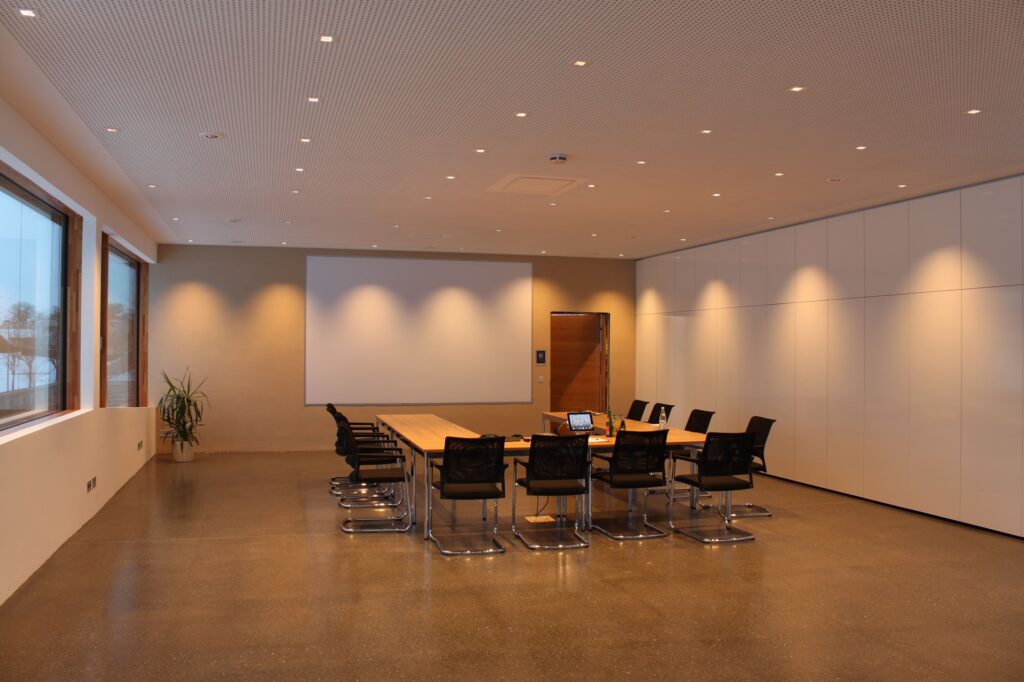

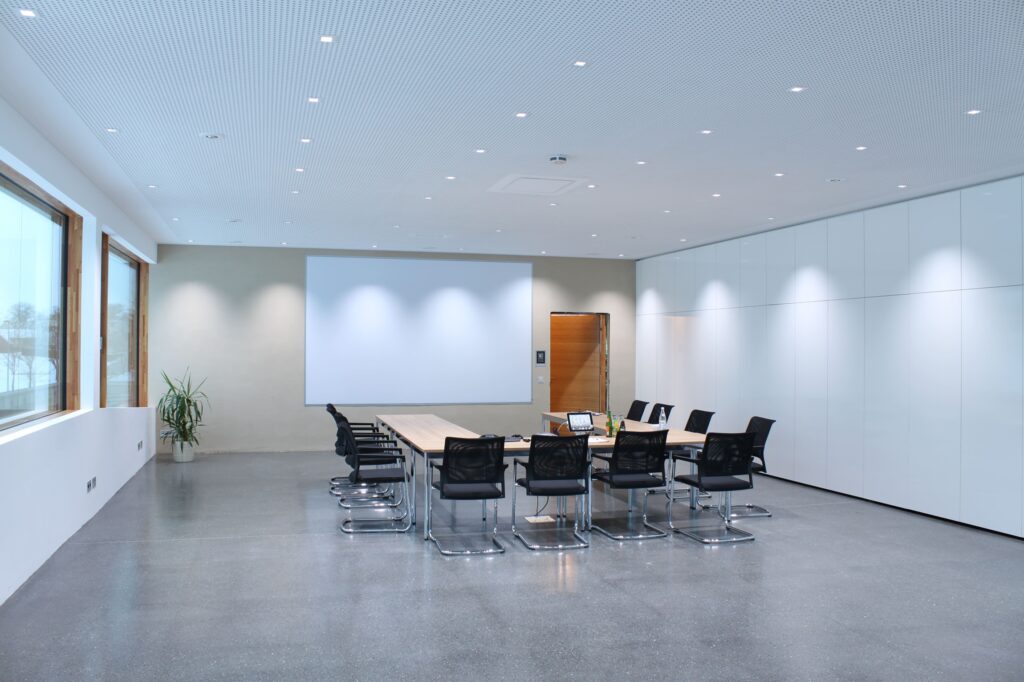

Offices and Workspaces

Suitable for offices and workplaces where precise color rendering and sufficient brightness are required. The CRI 97 rating supports comfortable and focused working conditions.

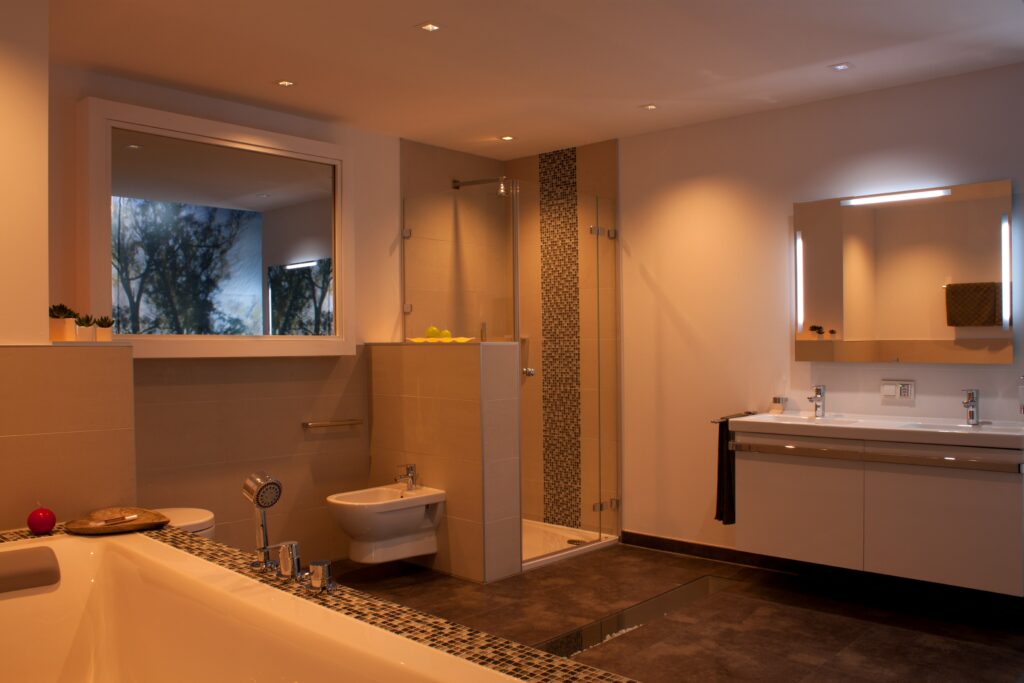

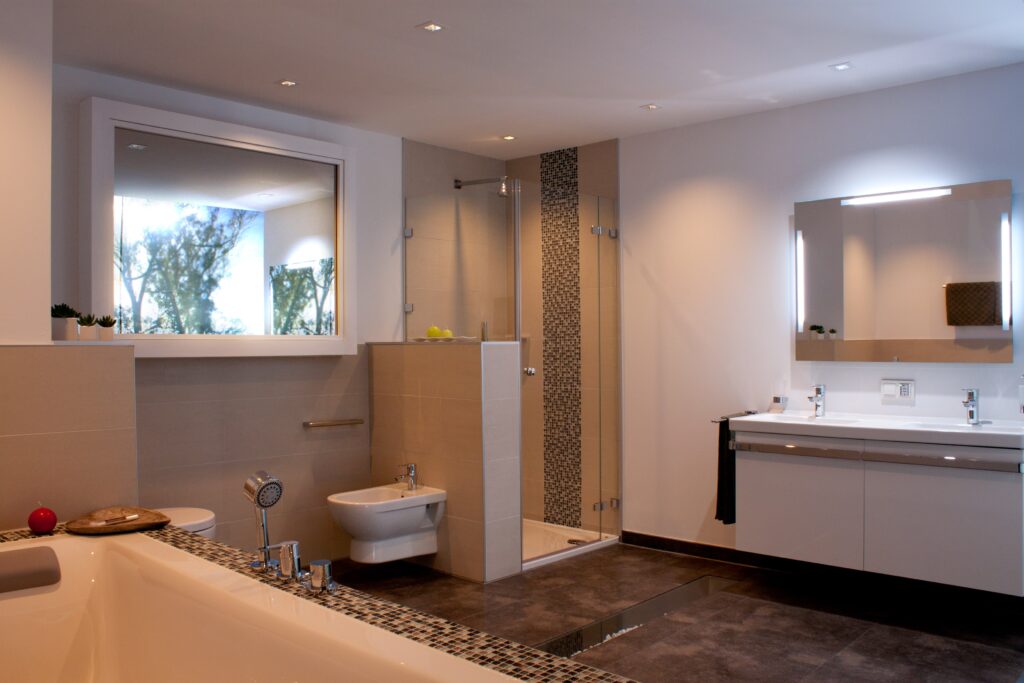

Damp Areas

The IP65 version is suitable for bathrooms, kitchens, and other splash-prone environments. When installed in a closed ceiling, protection is also provided from above.

Retail and Exhibition Spaces

Its exceptional color rendering makes this luminaire ideal for retail stores and exhibition areas where products should be presented under authentic lighting conditions.

Technical Specifications

Part Numbers and Variants

Product Benefits in Detail

Color Temperature and Light Quality

The KITEO K-Fabius recessed downlight is available in two color temperatures: 3,000 K for warm white, comfortable lighting and 4,000 K for neutral white, energizing illumination. Its CRI of 97 meets the highest standards for natural color reproduction, making it especially suitable for environments where accurate color rendering contributes to well-being, comfort, and concentration.

Installation and Ceiling Cut-Out

The required ceiling cut-out is 77 mm, allowing for a compact installation. The recessed luminaire is designed according to Protection Class II and does not require a protective earth connection. The integrated, non-replaceable LED light source is factory-installed and ensures optimum lighting performance throughout its service life.

Control and Dimming

As standard, the KITEO K-Fabius recessed downlight is non-dimmable and switched via a Type B16 circuit breaker. However, advanced control options are available, including DALI for professional lighting management systems, Casambi for wireless lighting control, and 1–10 V as well as push dimming for seamless integration into existing installations.

Operating Conditions and Reliability

The luminaire is designed for ambient temperatures between 10 °C and 35 °C and operates on a supply voltage of 220 V to 240 V. The rated lifetime of 60,500 hours (L80/B10) means that after this period the luminaire still provides at least 80% of its original luminous output, significantly reducing maintenance requirements and operating costs.

Variants & Options

The KITEO K-Fabius recessed downlight is available in multiple configurations: 3,000 K or 4,000 K color temperature, 60° or 80° beam angle, and White or Black housing. All versions provide 12.9 W power consumption and are available with IP20 or IP65 protection ratings.

Typical Applications

Typical application: Modernizing residential buildings by installing the luminaire into existing ceiling structures. The compact 77 mm cut-out enables retrofitting without major structural modifications. Another example is office lighting where excellent color rendering and energy efficiency are required. The combination of CRI 97, 12.9 W power consumption, and 1,250–1,350 lm offers an outstanding balance of performance and efficiency.

About Kiteo

KITEO is an Austrian manufacturer of LED lighting solutions with a focus on energy-efficient and sustainable products. The company develops and manufactures its luminaires in accordance with stringent European safety standards (EN 60598) and offers comprehensive control options for intelligent lighting management systems. The KITEO K-Fabius recessed downlight is individually manufactured according to your specifications. As a result, the delivery time is typically 1–3 weeks depending on production capacity.


Safety Information, Certifications & Warranty

The KITEO K-Fabius recessed downlight complies with the European safety standard EN 60598 and is RoHS compliant. Protection Class II – double insulated, no protective earth connection required. Type B16 circuit breaker recommended for safe switching. Maximum number of luminaires per circuit breaker: 50 units. Permissible operating temperature: 10 °C to 35 °C. Photometric and electrical data are subject to a tolerance of ±15%.

Note:
Products from this manufacturer are individually manufactured according to your specifications. This custom production process results in a delivery time of approximately 1–3 weeks depending on current production capacity.
