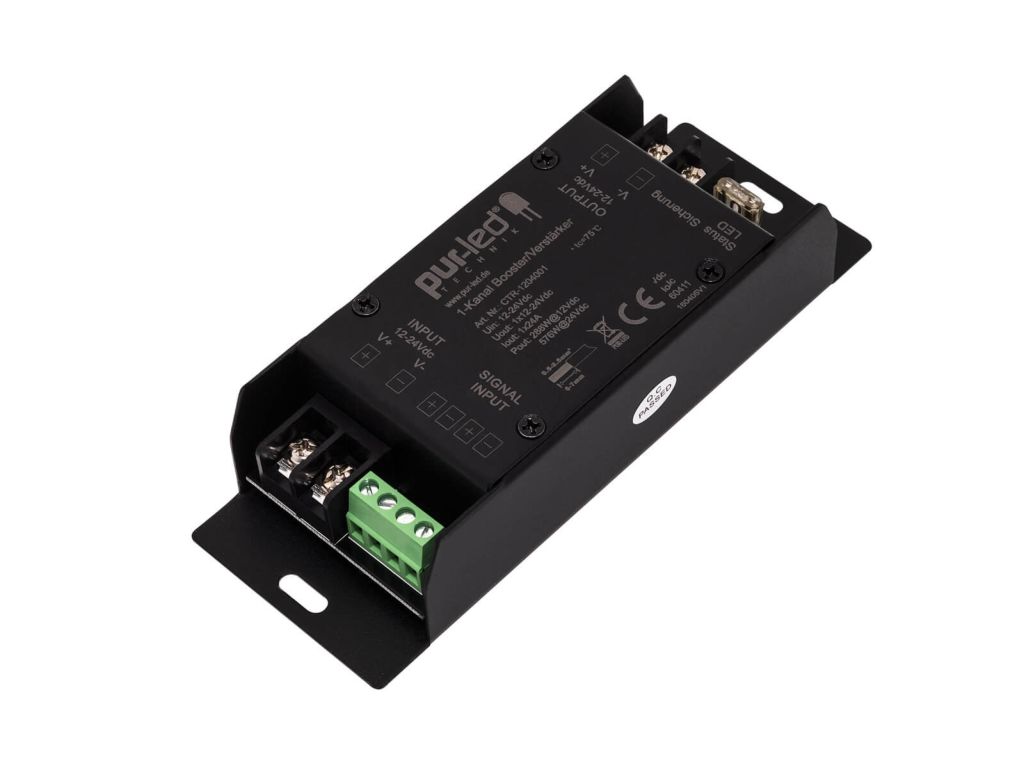

LED Booster 24A (CV)

Preview: LED Booster 24A (CV)

LED Booster 24A (CV)

PUR-LED GmbH & Co .KG

76.29€ *
Net price: 64.11€

Content: 1 Stück

Prices incl. VAT plus shipping costs

Delivery time 3-5 workdays*

Order number: CTR-1204001
Hersteller-Nr.: CTR-1204001
Weight: 0.3 kg
Manufacturer: PUR-LED GmbH & Co .KG

LED Booster for amplifying a PWM-signal (constant current) With this LED Booster it is... more

LED Booster for amplifying a PWM-signal (constant current)

With this LED Booster it is possible to amplify a 1-channel PWM-signal up to 24A output current. The repeater is wired between the control unit or the dimmer and the LED stripe. In this way long-distance transmissions can be bypassed without the need of additional expensive control units. The LED Booster is realized as a constant current source, thus the output voltage can be kept constant up to a 24A output current.

Technical Data:

Power supply:	12-24VDC
Output mode:	Constant voltage
Output voltage:	1x12-24VDC
Output current:	1x24A
Output power:	288W @ 12VDC / 576W @ 24VDC
Color:	Black
Temperature range:	-20°C to +45°C
With connection terminals:	Yes
Dimensions (LxWxH) in mm:	150x54x32
