Starter Kit I2C - LED Driver LW04

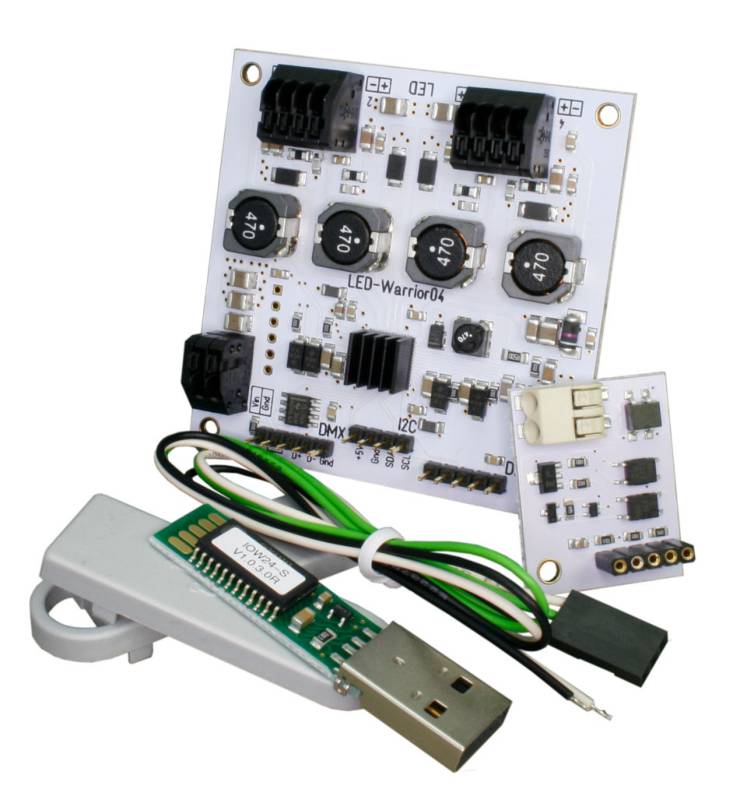

The three-part starter kit consists of an I2C programmable LW04-MOD LED driver, a IEC 62386* bus interface
for LW04 (LW04DI-MOD) and an USB to I2C-Dongle (IOW24-DG) to program the LW04.
A starter kit like this one may assign to your lights next to the external control via IEC 62386* or DMX 512 also
an autonomous function for light scene control.
LW04-MOD LED driver programmable:
LED driver with 4 programmable constant current inputs (80mA-1A). IEC 62386*, DMX and I2C interface. 25W output
power per channel. For additional information, please refer to LED driver LW04-MOD product page (Link)
IEC 62386* bus interface LW04:
IEC 62386* module (IEC 62386* bus driver)
USB to I2C-Dongle:
I2C USB dongle with 3,3V and 5V allows an application-specific wiring by solder pads for I2C signals.
- I2C-Master with 100 kHz
- Increase data capacity up to 750 Bytes/s
- Operating with standard system drivers based on IO Warrior24
- Fully compatible with IO-Warrior software and development tools
- Case size for standard conforming USB plug (no blocked ports)
For more information, please refer to data sheet:
Guide LW04-MOD LED driver (PDF) download
IEC 62386 (=DALI Standard)
