LED Power supply 180W/200W 12V/24 V controllable 0-10V

148.87€ *
Net price: 125.10€
Content: 1

Prices incl. VAT plus shipping costs

Please select a variant first

Voltage/Power:


piece

High power LED power supply up to 200W with constant voltage - amplitude dimming, waterproof... more

High power LED power supply up to 200W with constant voltage - amplitude dimming, waterproof (IP65), control voltage 0-10V

This extremely efficient LED module offers the possibility to be operated as a controllable power supply with constant output voltage (12V and 24V) by connecting the used LEDs in parallel. It is not only controlled by a high-impedance potentiometer and control voltage 0-10V, but also has a dimming function by lowering the voltage. The LED device impresses with its robustness against both high and low temperatures, has a power factor of 98% and a high degree of protection IP65.
The product is available in two versions with a power of 180W and 200W with corresponding constant voltage.

Further features:

  • Waterproof LED power supply with constant output voltage (connect LEDs in parallel)
  • Fixed connection cables
  • Dimming by lowering of the voltage (amplitude dimming)
  • Short-circuit protection, protection against overload
  • High efficiency with very high power factor 98%
  • Largely cold- and heat-resistant (ta: -40 .. + 50 ° C) with protection class IP65
  • Controllable by
    • Potentiometer 100kO
    • Control voltage 0-10 V (full switch-off only by mains switch)

Note:
Do not insert switches into the secondary circuit!



Technical data:

Article number 800696 800697
Type NIP12-180 NIP24-200
Input voltage 100..265 Vac
Frequency 47..63 Hz
Nominal output voltage 12 Vdc 24 Vdc
Output power 90..180 W 100..200 W
Power factor acc. to EN61000-3-2 0,98
Ambient temperature -40..+50 °C
Rated max. temperature 90 °C
Control current max. 1,5 mA
Inrush current 65 A; 0,085 ms
Overload protection yes
Short circuit protection yes
P Protection level 65

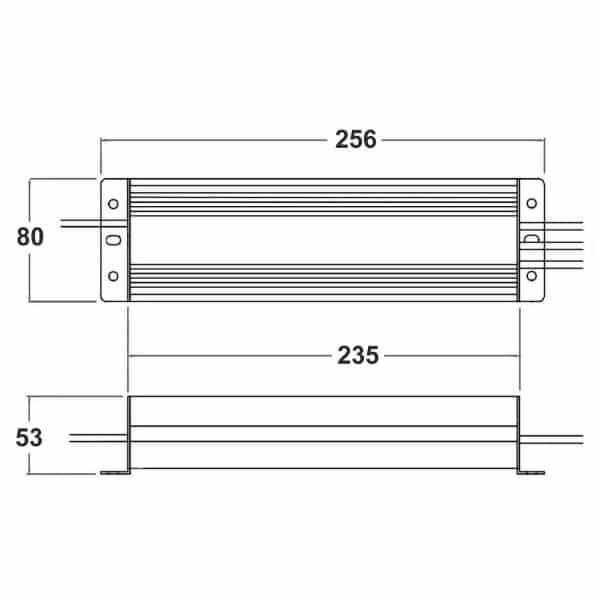

Dimensions 256x80x53 mm

For further information please refer to the data sheet in the Download tab.
