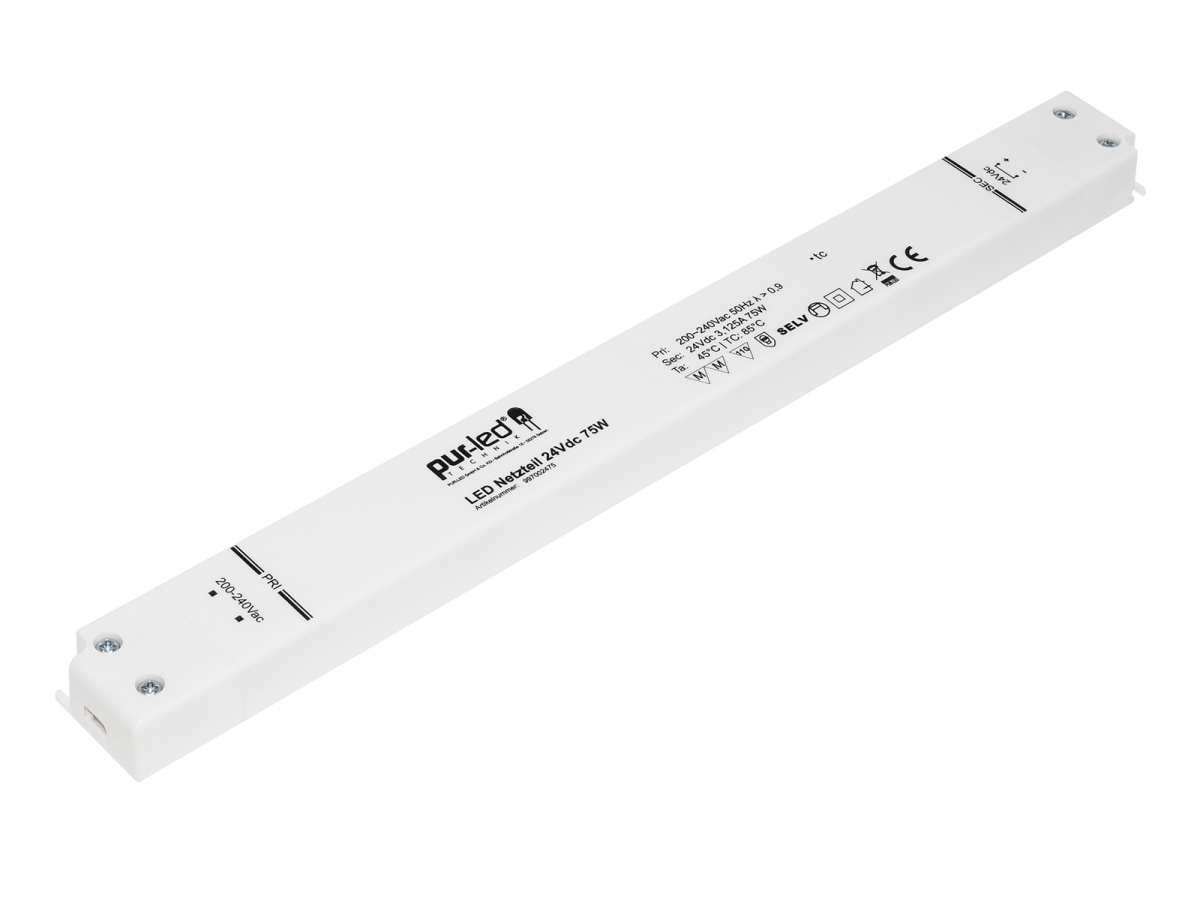

LED powers supply 75W IP20 Slim

59.99€ *
Net price: 50.41€

Prices incl. VAT plus shipping costs

Please select a variant first

Voltage:

  • 4396-NT-997001275
  • NT-997001275
  • 0.45 kg
  • PUR-LED GmbH & Co .KG
Slim 75Watt LED powersupply for LED applicatation stabilized. No minimum load required. This... more

Slim 75Watt LED powersupply for LED applicatation stabilized. No minimum load required.

This power supply is characterized by its high security, it is excellent with an MM and F-symbol, so the power supply can also be mounted on normal flammable surfaces. It is therefore also suitable for installation in furniture.
The special feature of this power supply is the extremely slim design of only 30mm width and 17mm height. It is therefore suitable for installation wherever there is limited space.
High security by protections for over current, short or over temperature and further SELV, MM, F and safetyclass II.

Technical data of the 75 W powersupply.

Version 12 Volt 24 Volt
Output voltage: 12Vdc especially for LED stabilized 24Vdc especially for LED stabilized
Output current: 6,25A max 3,125A max
Ripple: 500mV Vp-p 600mV Vp-p
Input voltage: 230Vac
Input range: 200-240Vac 50Hz
Power: 1-75 Watt (consider 10% reserve).
Efficiency: 89% 89%
Surface color: white
Working range: -20°C to +45°C (tc=75°C)
Include connectors it fulfills: EN55015; EN61346-1; EN61347-2-13; EN61000-3-2 Class C; EN61000-3-3; EN61547
Safety: SELV, MM, F, Safety class 2, IP20
Protection: Protection for overcurrent, short, over temperature
Dimensions (LxWxH) in mm:  305 x 30 x 17

This device must be installed by an electrician!

Additional info:
On the secondary side you can also realize cable lengths of 10-15m max.

For further information, please refer to the respective data sheets in the download tab.
