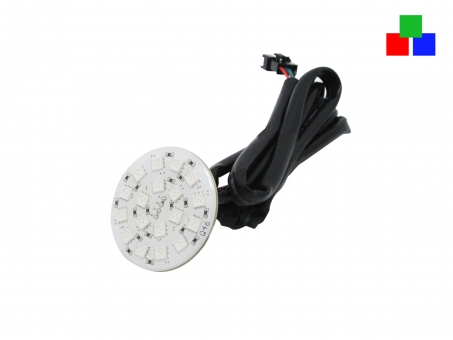

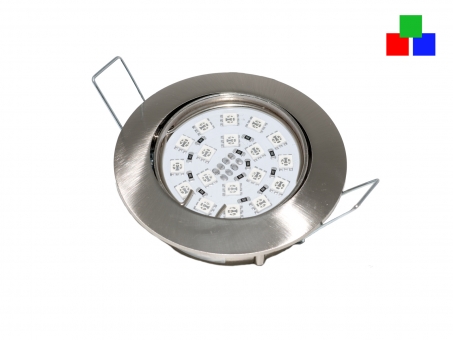

This LED RGB Modul is suitable for ceiling or wall mounting with 50mm sockets as used for GU10/MR16 spots. The RGB LED light source is equipped with two 0. 5m long RGB cables, making it easy to connect several luminaires together. It has a beam angle of 120° and can be dimmed via PWM.
Technical data:
Electrical data
Nominal voltage
24 Vdc
Rated current
0,2 A
Rated power
4 W
Efficacy
17,5 lm/W
Energy efficiency class
B
Lighting data
Luminous flux
70 lm
Light colour
RGB
Beam angle
ca. 120°
dimmable
yes, via PWM
Lifetime & ignition time
Nominal service life
30.000 h
Ignition time
< 0,5 s
Starting time
directly
Temperature
Operating temperatur
60 °C measured at the TC point
Storage temperature
-15 to +40 °C
Dimensions
Diameter
50 mm
Height
2 mm
2 supply lines
ca. 500 mm (RGB plug / socket)

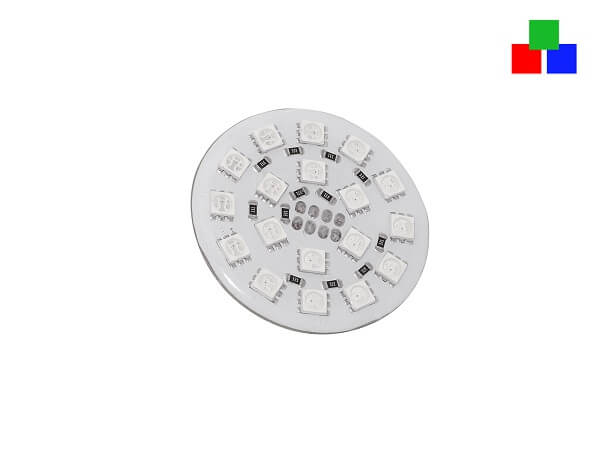

The RGB board is suitable for use in damp rooms due to its potting. Up to 10 RGB luminaires may be connected in series. When using a 1m RGB extension cable, a total cable length of 20m should not be exceeded.
For further information, please refer to the data sheet in the download tab.
