LED RGBW wall controller with DMX 512 output

92.59€ *
Net price: 79.82€
Content: 1

Prices incl. VAT plus shipping costs

Please select a variant first

Surface:


piece

  • 407-CTR-308110-S
  • CTR-308110-S
  • 0.33 kg
  • PUR-LED GmbH & Co .KG
LED RGBW wall controller with DMX 512 output Create impressive lighting effects - RGBW wall... more

LED RGBW wall controller with DMX 512 output

Create impressive lighting effects - RGBW wall control with sensor touch surface.

Control LED, RGB and RGBW technology

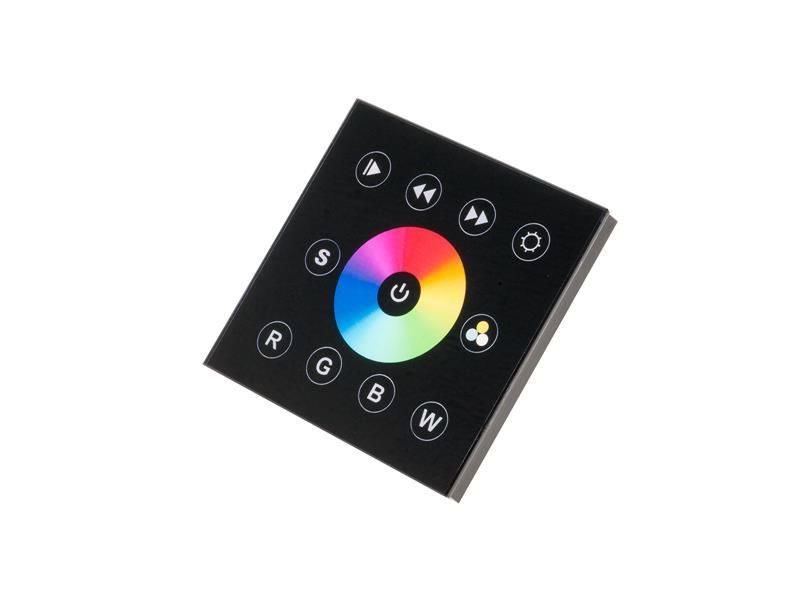

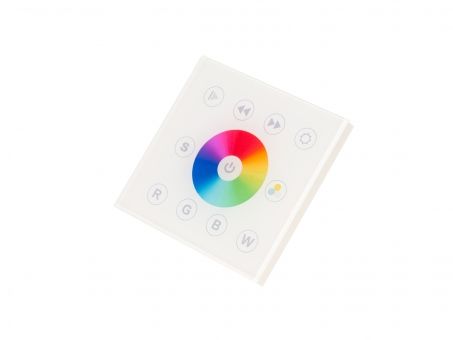

The touch-sensitive glass front wall of the RGBW control is optionally available in black or white.

Features:

  • The flow speed of the color changing program can be adjusted via the speed keys in 8 stages.
  • Your desired color can be saved and accessed by pressing a button on the color memory.
  • Choice of three white color temperatures: warm white, neutral white, cool white.
  • Select the desired color by touching the color wheel.
  • Suitable for a conventional flush-mounted socket.

Technical Data LED RGBW wall controller:

Supply Voltage: 12V DC
Maximum load: 200 mA
Power consumption: max. 2,4W
DMX addressing: 1-512
DMX line: Terminal connections
Dimensions (LxWxH) in mm: 86 x 86 x 30
Features:
  • Intuitive color selection
  • Three white shades (warm white, neutral white, cool white)
  • Color change program
  • A wall controller can address multiple DMX converter
  • status memory (last operation setting is retained)

Warning: You need a 12Vdc power supply and a DMX converter to use the wall control.

Related links to "LED RGBW wall controller with DMX 512 output"
LED RGBW wall controller with DMX 512 output - RGBW wall control with sensor touch surface more
Features/tags of this product family. Please refer about the details in the description or datasheet.
Constant Voltage: 12V
Dimmable/Control: DMX
Color Temperature/Color: RGB, RGBW
Datasheet DMX Wall Controller
(German)
