LEDON Panel Comfort+ 3000K with 33W warm white
This LED grid light of LEDON is characterized by energy efficiency and lightning comfort.
With warm white 3000 Kelvin and a luminous flux of 3800/3650 lumen will this LED Panel 3000K
come to meet even greater standards.
With it's glare rating of UGR < 19 and a high colour rendering index of 90 Ra, such characteristics are

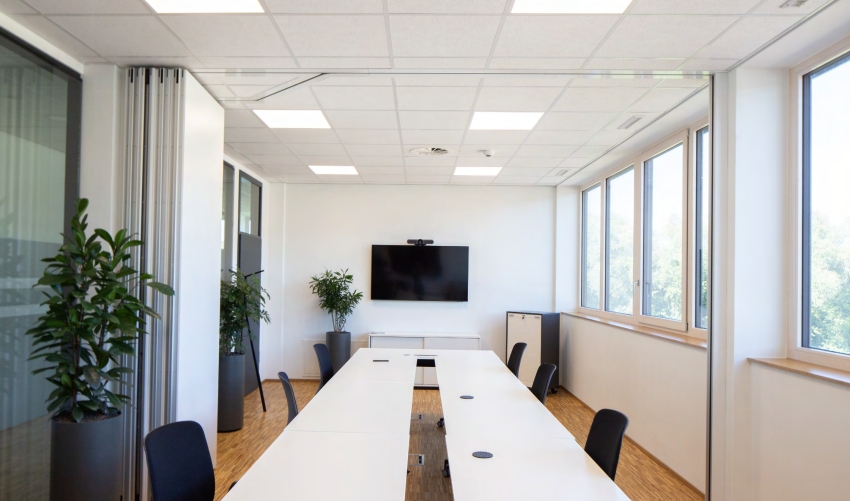

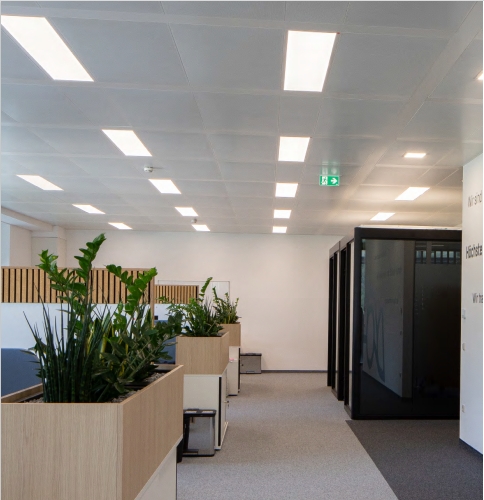

suitable for offices with VDU workplaces, schools and many other areas.

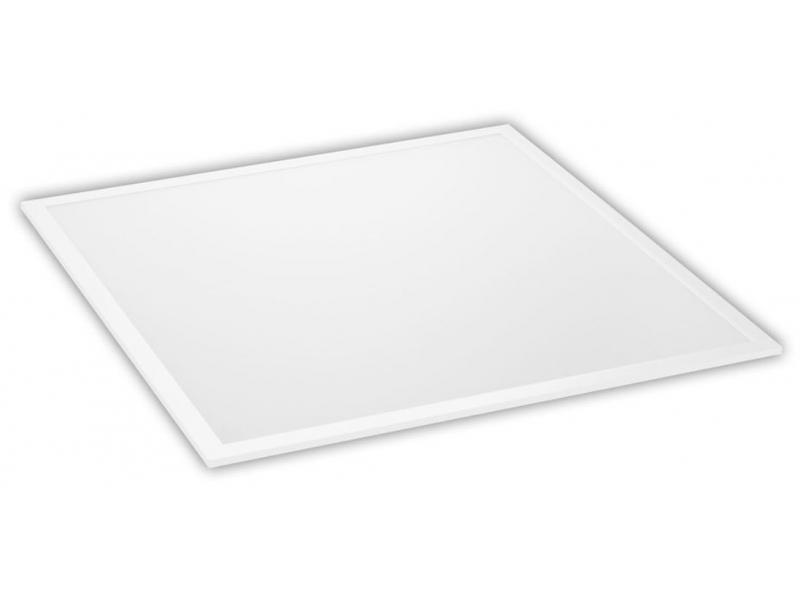

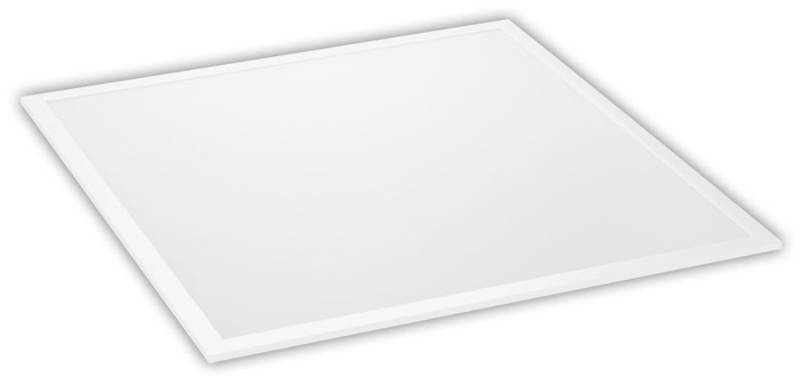

The LED panel 3000K is in 620mm x 620mm, 623 x 623mm and 597 x 597mm (length and width) version
available (in example for Odenwald celing systems).

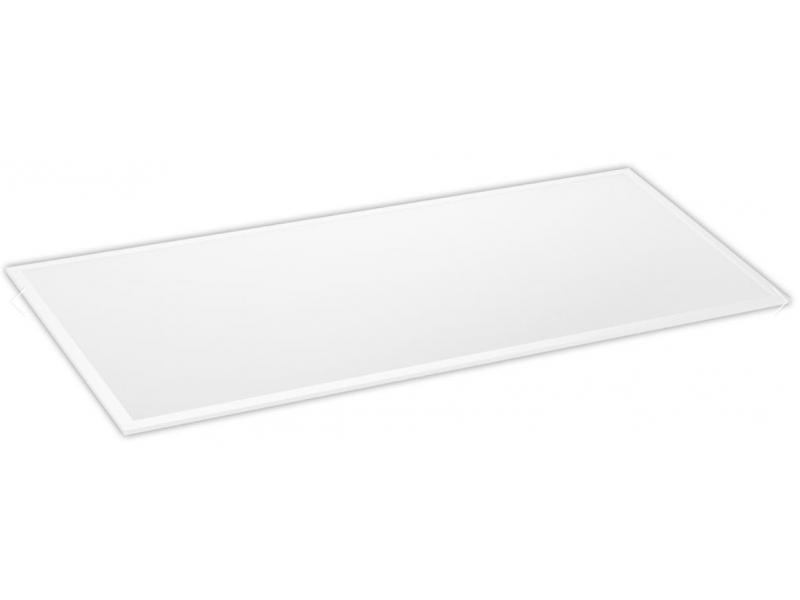

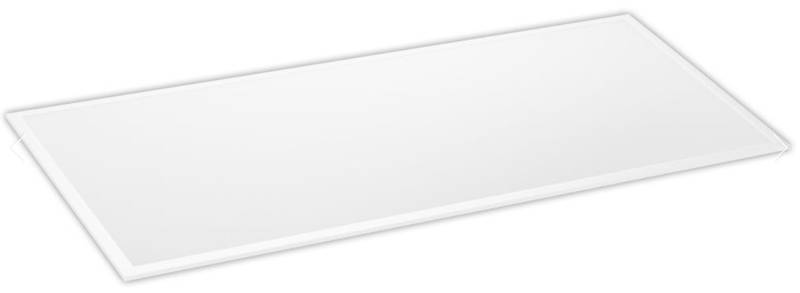

In addition, there is a rectangular version in the standard dimension 1197 x 297mm (length x width) available.
Special feature - simple light control with MOTION ADAPT:
The MOTION ADAPT converter combines the functions of a converter, a high-frequency motion detector and a daylight sensor in one device. The input current, the detection area, the hold time, the daylight sensor and the stand-by time and dimming level can be set via dip switches for the respective situation.
More about this in our download area. (Download tab)
- 5 Years warranty
- 3 Years full warranty

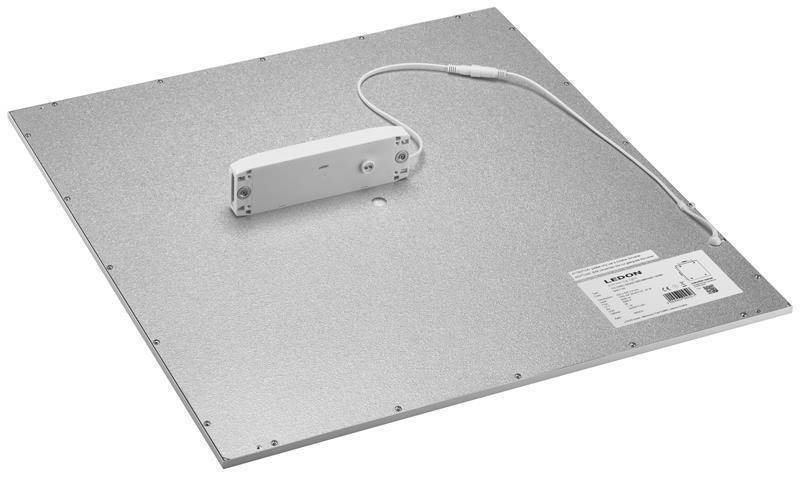

- Contain power supply in delivery
- Flat construction (only 9mm)
- High luminous flux
- Light output (upt to 112lm/W)
- Beam angle of 90°
- Leading LEDON light technology
- Ideal appropriate for LED lighting in offices, school and everywhere a relaxed
and concentrated way of work is needed
- CASAMBI, 1....10 V or Phasedimming on request
Technical data of LED Panel (29001057/29001061):
|Shape||square or rectangular|
|Housing material||Metall frame / Plastic Light Guide|
|Manufacturer's warranty||5 Years|
|Mount of switching cycles before premature lamp failure||100.000|
|Yield -/ Start-up period to 100%||<0,5s|
|Luminous flux||3800/3650 Lumen|
|Light colour||Warm white|
|Colour rendering index||90|
|Light output / Efficiency||96-115 lm/W (see datasheet)|
|Lumen maintance factor at the end of nominal life||80%|
|Unified glare value||<19 UGR|
|Beam angle||90° (Data sheet)|
|Nominal capacity||33 W|
|Nomina voltage||35-41V DC|
|Current strength (Measured value)||900mA|
Dimensions and weight please refer to data sheet in DOWNLOADS tab.
This LED Panel is also available in neutral white 4000 Kelvin!
|·Dimmable/Control:||1..10V, DALI, Phase-Cut (Triac), Push-Button|
|·Lamp shape:||LED Grid Inlay|
