Meanwell ELG-75 | 12V/24V/- 48V | A/B/AB/DA | upto 75W

Product information "Meanwell ELG-75 | 12V/24V/- 48V | A/B/AB/DA | upto 75W"

Meanwell ELG-75-xx"Type"

The Meanwell ELG-75 Series power supply is a constant voltage source as well as a constant current source.
It is a low-cost alternative to the HLG series and offers additional options for your LED lighting, such as DALI interface.
It has an output power of 75 watts and output voltages from 12V to 48V so that various LED applications such as road-, indoor-, and architectural- lighting can be realized.
With its metal housing and IP65 / IP67 the use for indoor and outdoor applications in the temperature ranges from -40 ° C to 85 ° C is possible.
Depending on the type the connected LED illumination can be dimmed via 0-10V, PWM signal, potentiometer or DALI interface.

ELG75 features (depends on type):

  • 5 Years warranty
  • Universal input voltage from 100V up to 305V AC
  • High efficiency up to 90%
  • Built-in active PFC function
  • Protections: over -/load, -/voltage, -/temperature
  • Type "?HL?" for use in Class I, Division 2hazardous (Classified) location
  • IP65/IP67 for indoor or outdoor installations
  • Standby power consumption < 0.5W
  • Compliance to worldwide safety regulations for lighting

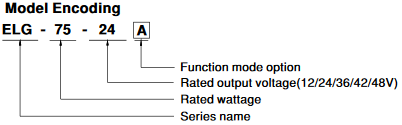

Type designation ELG 75 series

Performance ELG-75 Type -xx"-"(Blank):

  • Current and voltage output fixed
  • IP67 protection. For indoor -and outdoor applications

Performance ELG-75 Type -xx"A":

  • Output voltage and current level adjustable through built-in-potentiometer
  • IP65 design for indoor or outdoor installations
  • be adjusted through internal potential meter

Performance ELG-75 Type -xx"B":

  • Constant current control regulation about 1-10V or PWM entrance, as well as external potentiometer
  • IP67 protection. For indoor -and outdoor applications

Performance ELG-75 Type -xx"DA":

  • Lightning control via DALI interface
  • IP67 protection. For indoor -and outdoor applications
Unfortunately only type A is currently available. You are welcome to contact us concerning the other types with e.g. DALI interface.


Technical data Meanwell ELG-75 Power Supply:

Input100 - 305 VAC  / 142 - 431 VDC 47 - 63 Hz
OutputDepending on type, see data sheet
Rated Power48 - 76,8 W (voltag depending, see datasheet)
SeriesELG
Typical lifetime> 50.000 h
Dimensions (LxWxH)180mm x 63mm x 35,5mm

For further technical data, please refer to the data sheet (in tab "DOWNLOADS").
On request, we also offer type and voltage ranges.

Properties "Meanwell ELG-75 | 12V/24V/- 48V | A/B/AB/DA | upto 75W"
·Application/IP-Code: IP65/67 (Outdoor)
·Constant Current: 0,8A, 0,85A, 0,9A, 0,95A, 1,0A, 1,05A, 1,2A, 1,4A, 1,6A, 1,75A, 2,1A, 2,4A, 4,0A
·Constant Voltage: 12V, 24V
·Dimmable/Control: 1..10V, DALI, PWM
·Meanwell Series: ELG
·Power range: 50 - 100 W
Datasheet & further Infos about this product

Datasheet Meanwell ELG-75
Meanwell Installation Manual

Manufacturer "MEAN WELL"

Mean Well

Founded in 1982, MEAN WELL is one of the world's few manufacturers dedicated to standard power supply products. In the late 1990s, MEAN WELL started taking off the European business. To further serve the European market, MEAN WELL Europe was established in 2006 in Amstelveen, the Netherlands, as Europe's sales and product engineering support centre. As a globally proven manufacturer of powerful and reliable switching power supplies and LED transformers. Mean Well power supply units are tried and tested in many different ways, and the HLG series and ELG series in particular have become very popular in the LED industry.

For more than 10 years we have been offering more than 100 products from the manufacturer Mean Well worldwide. Below is our portfolio of products. Tip: Use the filter function to quickly find the driver you need, or give us a call.

MEAN WELL EUROPE N.V.
Langs de Werf 8 - 1185XT Amstelveen - Netherlands
