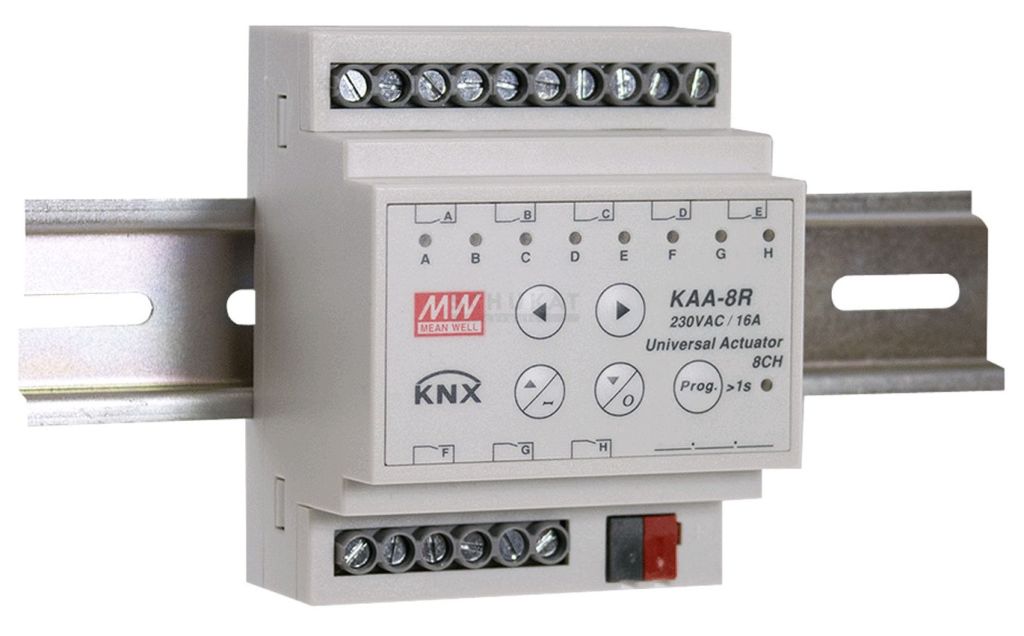

Meanwell KNX 8 Channel Universal Actuator KAA-8R

Variants from 228.54€ *
Net price: 192.05€

Prices incl. VAT plus shipping costs

Please select a variant first



  • KAA8R-16-A
  • KAA-8R-16
  • 0.312 kg
Meanwell Universal Actuator KAA-8R und KAA-8R-10 The KNX actuator is an 8-channel device... more

Meanwell Universal Actuator KAA-8R und KAA-8R-10

The KNX actuator is an 8-channel device with a high-quality, independent latching relay for switches, blinds or all kinds of mixing applications.

Due to its compact design with a width of 72 mm, it is suitable for installation in the distributor on 35mm mounting rails in the EIB / KNX application. The connection to the KNX bus is made via the bus connection terminal. The switching relays are particularly suitablefor switching ohmic loads, capacitive loads, for instance LED drivers and inductiveloads as well as motors in shutter or blind applications.

The actuator are powered via the EIB / KNX and do not require any additional power supply

Features of the actuator:

  •  8 channel actuator
  •  Can be mounted directly on the DIN rail
  •  Closed, compact design IP20
  •  For AX, C-load, capacitive & inductive of loads
  •  Supply voltage via EIB / KNX
  •  Manual control via push button
  •  Programmable various time and scene function
  •  Building automation, lighting switch, shutter/blind control (planned), heating control, ventilation function
  •  Available in KAA-8R and KAA-8R-10 models

Technical data:

KNX-BUS voltage 21...31 V
Current consumption 6mA
Power consumption 180mW
Channels 8
KAA-8R 16A per channel
KAA-8R-10 10A per channel
Operating temperature -30...+45°C
Weight 312g

For further technical details about the KAA-8R and KAA-8R-10 Universal Actuator, please refer to our downloads.
