Meanwell Linear LED Driver 35W

Product information "Meanwell Linear LED Driver 35W"

Meanwell Linear LED Driver LDC-35

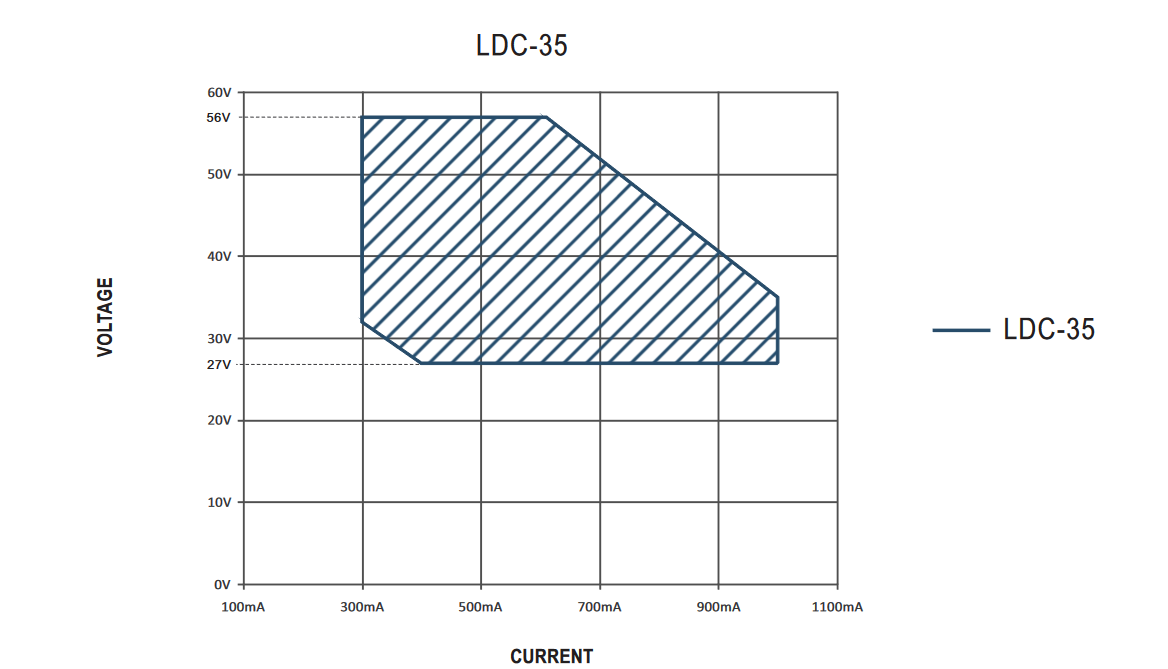

LDC-35 series is a 35W AC/DC LED Driver featuring the constant power mode Output. LDC-35 operates from 180~295VAC and Output current can be adjust between 300mA to 1000mA.

Thnaks to the Efficiency up to 88%, with the fanless design, the entire series is able to operate for -25°C ~ +80°C cae temperature under free air convection.

LDC-35 is equipped with various further Options.

Features:

  • 5 years manufacturers warranty
  • Constant power mode output
  • Design: metall-boxing
  • Full energy at 70~100% max Current
  • Built-in active PFC function
  • Flicker free design!
  • No load/standby power conumption at <0.5W
  • Output current Level pre-settable
  • Function options: 3-in-1 dimming (dim-to-off); DALI
  • Typical lifetime >50000 hours
  • SELV and Isolated
  • Class 2 power supply

This product is also avalable in:

  • LDC-35-Blank (not dimmable)
  • LDC-35-B (3-in-1 dimming) and
  • LDC-35-DA (DALI, push dimming)

Technical data for driver Meanwell Linear LDC-35W

ApplicationsLED Panel Lighting; Indoor LED Lighting; Linear LED lighting
Surge solidity
Input

180 - 295VAC

47 - 63Hz

Rated Power35W
Output operating parametersdetailed Infos in download datasheet
DesignLDC
ApprobationEN55015, EN61000-3-2 Class C (further Infos in download datasheet)
Dimension280mm x 30mm x 21mm (L x W x H)







Properties "Meanwell Linear LED Driver 35W"
·Meanwell Series: LDC
Manufacturer "MEAN WELL"

Mean Well is a proven manufacturer of powerful and reliable switching power supplies and LED transformers. Mean Well power supplies have been tried and tested in many different ways. The name guarantees quality. The Meanwell HLG series and Meanwell ELG series in particular have become very popular in the LED industry

Related links of the manufacturer

Datasheet

Datasheet

User Manuel

User Manuel
