Meanwell NPF-120 power supply

Product information "Meanwell NPF-120 power supply"

Meanwell NPF-120-xx "type"


Power supply of Meanwell NPF-120 has a 120W single output and an integrated active PFC function. The power supply operate with input voltage 90 to 305 V AC and has a very short setup time of <500 ms.This LED power supply is ideal for energy saving. The product offers higher efficiency, lower power loss and compliance with the latest international lighting regulations.

Due to the rugged design and high protection against dust and moisture, it can be used in many indoor and outdoor LED applications.
This LED power supply provides a constant current, constant voltage or a combination of constant voltage and current with fixed or adjustable values.

Thus, the Meanwell NPF-120 LED switching power supply is ideal e.g. in version -12 for the operation of 12V lamps, such as low-voltage LED spotlights MR16 / GU5.3 or MR11, as well as LED stripes. Up to a power of 40W, several lamps can be connected to a single transformer. Cost savings!

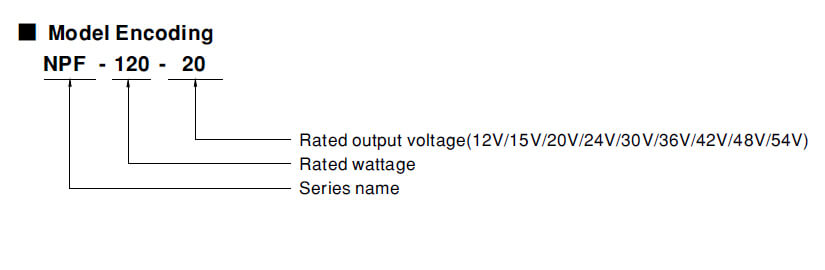

Model Encoding NPF-120
NPF-120 legend

NPF-120 Features (type dependent):

5 years manufacturer guarantee
• Type NPF for use according to Class II
• Universal AC input up to 305V AC
• Overload protection by current limiting, auto recovery
• Integrated PFC circuit
• Low idle power
• Plastic housing
Self Cooling by free air convectiond (temperature protection)
• Protection against short circuit, overvoltage and overload (temperature protection)
• IP67 protection for outdoor installation

• LED lighting, especially street lighting

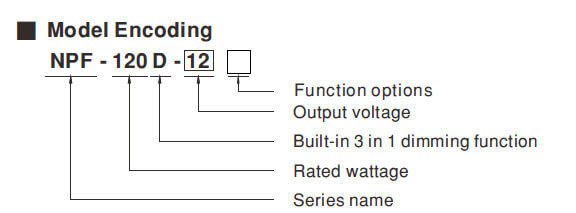

Meanwell NPF power supplies are also available as a NPF-40D variant. This power supply is distinguished by its 3 in 1 dimming function (external voltage 1 to 10 Volt DC, PWM, potentiometer).


For more information about dimming via DALI and PWM, please refer to this article:
DALI PWM solution for dimming of LED technology

Technical data for the Meanwell power supply NPF:

Modelswitching power supply
Rated Power120 - 124,2 W (voltage depending, see datasheet)
Input voltage90 - 305 VAC / 127 - 431 VDC
Output and operating parametersSee data sheet
Frequency range47 - 63 Hz
Efficiency90,5%
Switch on current Max.50 A at 230 VAC
Temperature range-40 ... + 90 ° C

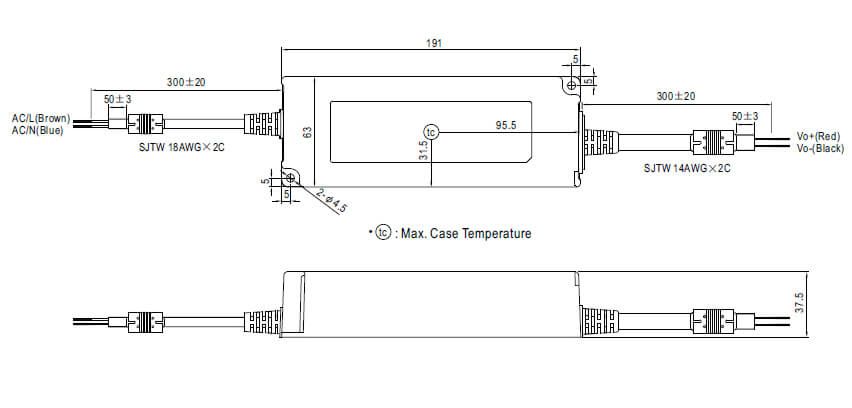

Dimensions191mm x 63mm x 37,5mm (H x W x D)

On request, we also offer type and voltage ranges.

Properties "Meanwell NPF-120 power supply"
·Application/IP-Code: IP65/67 (Outdoor)
·Constant Current: 4,0A, 5,0A
·Dimmable/Control: PWM
·Meanwell Series: NPF
·Power range: 100 - 250 W
·Constant Voltage: 12V, 24V
Manufacturer "MEAN WELL"

Mean Well is a proven manufacturer of powerful and reliable switching power supplies and LED transformers. Mean Well power supplies have been tried and tested in many different ways. The name guarantees quality. The Meanwell HLG series and Meanwell ELG series in particular have become very popular in the LED industry

Related links of the manufacturer

Datasheet Meanwell NPF-120
Datasheet Meanwell NPF-120D
Meanwell Installation Manual
