Meanwell XLG-150 power supply

Variants from 39.87€ *
Net price: 33.50€

Prices incl. VAT plus shipping costs

Please select a variant first




  • XLG-150-12-A
  • XLG-150-12-A
  • 0.8 kg
Meanwell XLG-150 power supply The XLG-150 is a high performance dust - and waterproof... more

Meanwell XLG-150 power supply

The XLG-150 is a high performance dust - and waterproof AC-to-DC LED power supply up to 150W. It is possible to set output power.
Thanks to the high efficiency of up to 93% it is possible to operate the complete series between -40 ° C and + 90 ° C.
High degree of protection also allows outdoor use. It is also possible to dim via an additional input. (Type AB).

Features (depending on type):

  • 5 years warranty
  • Cooling by free air convection
  • Built-in active PFC function
  • Universal alternate current up to 305VAC
  • Three possibilities of dimming via 1-10 V, PWM or resistance
  • IP67 for indoor and outdoor installations
  • Metal housing with functional ground
  • No load/ Standby power consumption <0,5W
  • Typical lifetime >50.000 hours


  • Skyscraper lighting
  • Street lighting
  • Floodlight lighting
  • Stage lighting
  • Horticulture lighting
  • Bay lighting
  • DMX power supply
  • Type HL for use in class I, Division 2


Performance XLG-150-A:

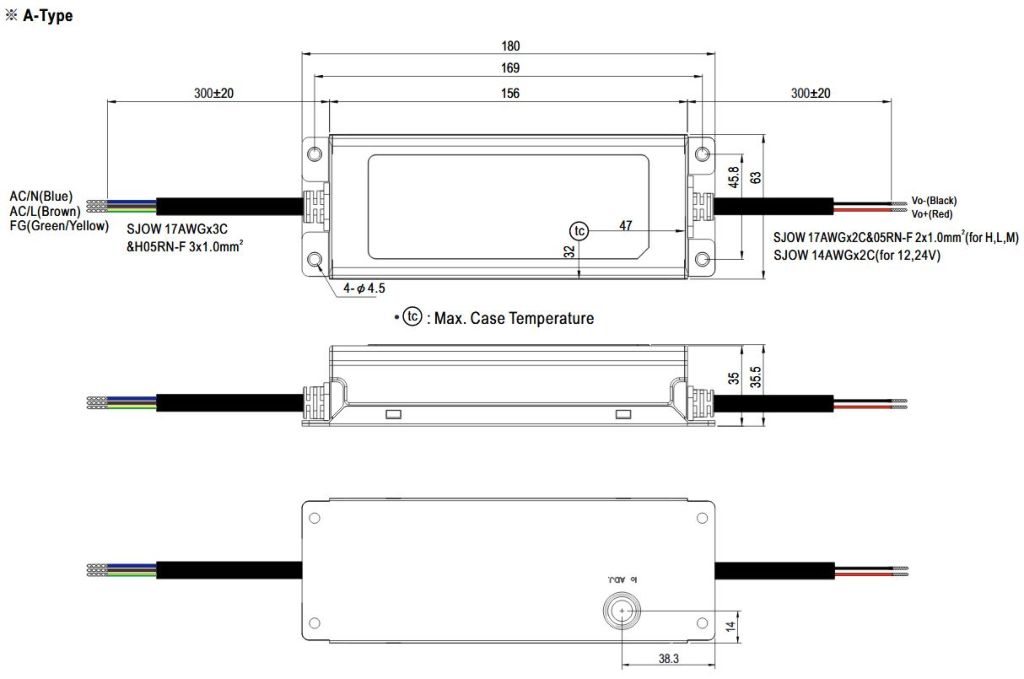

  • Internal potentiometer for adjusting the max. current (current limit)
  • IP67 protection, for indoor -and outdoor applications

Performance XLG-150-AB:

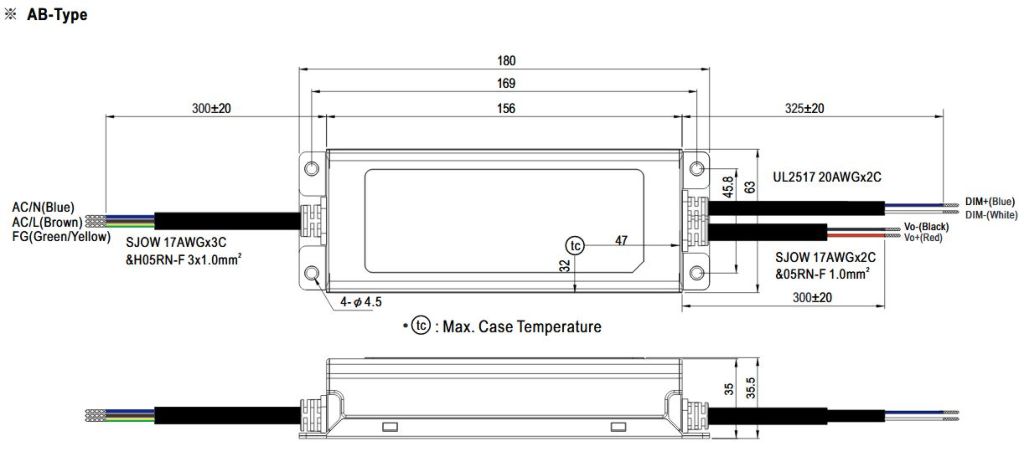

  • Internal potentiometer for adjusting the max. Current (current limit)
  • Constant current control via 1-10V, PWM input or resistor
  • IP67 protection, for indoor -and outdoor applications

Technical data for the Meanwell power supply XLG

Type XLG-150-12 XLG-150-24
Voltage 12V 24V
Rated current 12,5A 6,25A
Power 150W 150W
Type XLG-150-L XLG-150-M XLG-150-H
Rated current 700mA 1400mA 2800mA
Power 150W
Output operating parameters see data sheet
Design XLG
Approbation IEC61347/GB7000.1-2015/UL8750
Dimensions 180mm x 63mm x 35,5mm (L x W x H)

For more details about the XLG-150-A and XLG-150-AB, please refer to the datasheet in the download tab.

Related links to "Meanwell XLG-150 power supply"
Meanwell XLG-150 series Robust 150W LED power supply in a compact design. Indoor and outdoor... more
Features/tags of this product family. Please refer about the details in the description or datasheet.
Constant Voltage: 12V, 24V
Power range: 100 - 250 W
Constant Current: 0,7A, 1,4A, 2,8A
Dimmable/Control: 1..10V, PWM
Application/IP-Code: IP65/67 (Outdoor)
Meanwell Series: XLG
