Meanwell XLG-50 power supply

Variants from 23.44€ *
Net price: 19.70€

Prices incl. VAT plus shipping costs

Please select a variant first

Type:

  • XLG-50-A
  • XLG-50-A
  • 0.41 kg
  • MEAN WELL
Meanwell XLG-50 power supply The XLG-50 is a high performance dust - and waterproof AC-to-DC... more

Meanwell XLG-50 power supply

The XLG-50 is a high performance dust - and waterproof AC-to-DC LED power supply up to 50W. it is possible to set the output.
Thanks to the high efficiency of up to 90% it is possible to operate the complete series between -40 ° C and + 90 ° C.
High degree of protection also allows outdoor use. It is also possible to dim via an additional input. (Type AB).

Features (depending on type):

  • 5 years warranty
  • Cooling by free air convection
  • Built-in active PFC function
  • Universal alternate current up to 305VAC
  • Three possibilities of dimming via 1-10 V, PWM or resistance
  • IP67 for indoor and outdoor installations
  • Metal housing with functional ground
  • No load/ Standby power consumption <0,5W
  • Typical lifetime >50.000 hours

Performance XLG-50-A:

  • Internal potentiometer for adjusting the max. Current (current limit)
  • IP67 protection, for indoor -and outdoor applications


Performance XLG-50-AB:

  • Internal potentiometer for adjusting the max. Current (current limit)
  • Constant current control via 1-10V, PWM input or resistor
  • IP67 protection, for indoor -and outdoor applications

Technical data for the Meanwell power supply XLG:

Version For LED lighting applications
Rated current 1A
Input voltage (VAC) 90 - 305 VAC
Output voltage (VDC) 22-54V
Ripple max 5,0%
Power 50W
Surge solidity 6KV(L/N-FG)/4KV(L-N)
Output operating parameters See data sheet
Design XLG
Approbation IEC61347/GB7000.1-2015/UL8750

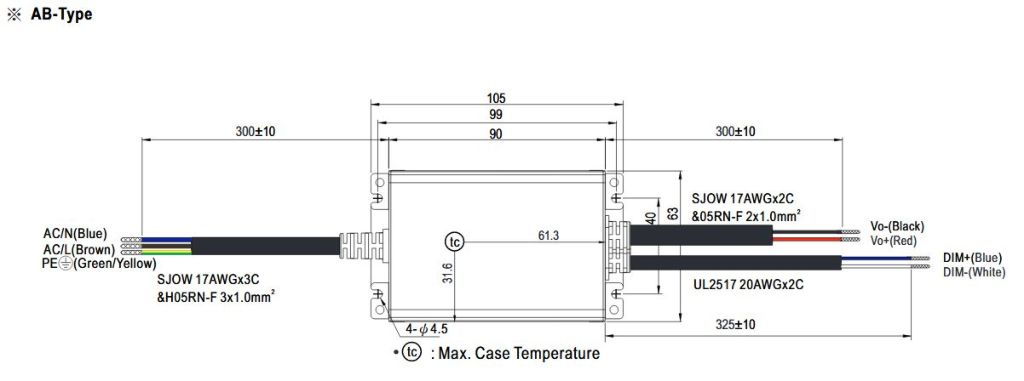

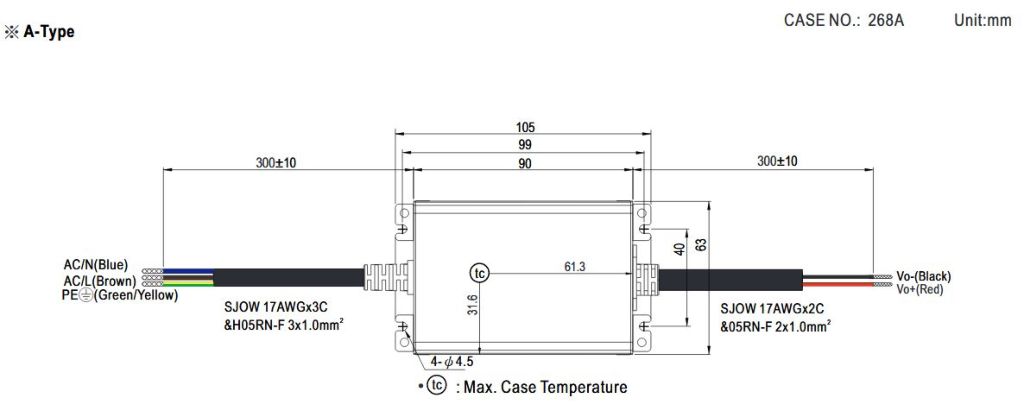

Dimensions 105mm x 63mm x 30mm (L x W x H)


Further details about XLG-50-A and XLG-AB can be found in the datasheet in the download tab.

Related links to "Meanwell XLG-50 power supply"
Meanwell XLG-50 series Robust 50W LED power supply in a compact design. Indoor and outdoor use,... more
Features/tags of this product family. Please refer about the details in the description or datasheet.
Application/IP-Code: IP65/67 (Outdoor)
Constant Current: 1,0A
Power range: 20 - 50 W
Dimmable/Control: 1..10V, PWM
Data sheet XLG 50
Meanwell Installation Manual
