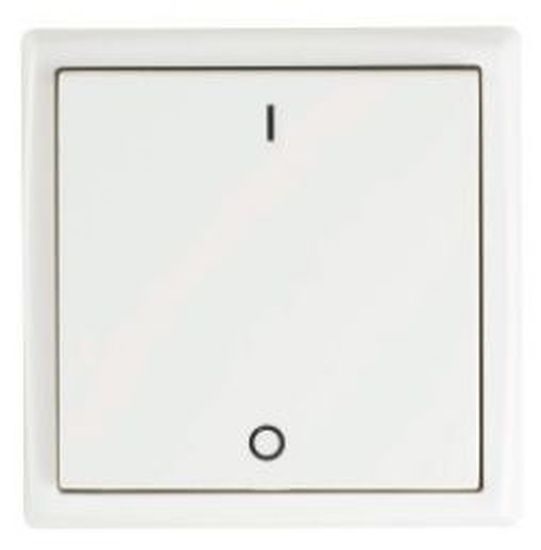

Mini Easysens wireless switch

Product information "Mini Easysens wireless switch"

Universal enocean wireless switch

This wireless enocean switch has a maintenancefree, self- powered radio transmitter

By means of the batteryless and maintenance-free wall-mounted radio keys, a wireless control of receivers based on the EnOcean technology (868 MHz) and other consumers connected thereto is possible.

Especially interesting: With the Mini Easysens wireless switch the SRC-DALI can be controlled. The SRC-DALI regulates via DALI the electric lighting and calls stored light scenes.

Included in delivery is an adhesive foil so that you can easily glue the wireless switch on glass, flagging, painted walls etc.

Technical Data:

Integrated Radio Transmitter:EnOcean PTM 200
Energy Harvesting Source:Electrodynamic energy generator, maintenance-free

RPS Type 2 / 300 m free field, typ. 30 m within buildings
(For detailed description please refer to the data sheet.)

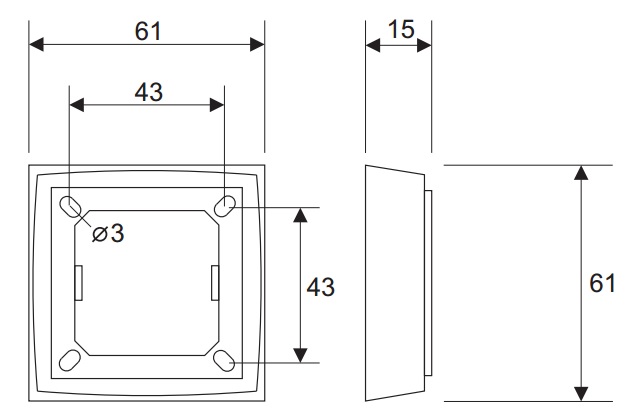

Dimensions:Frame Cut-out / Central Plate:
51 x 51 mm / 61 x 61 m *
Total Installation Height:15 mm (frame lies directly against the wall)
Installation:Glued (double-sided mounting filmenclosed) or screwed onto flat surface
Colour Variants:Pure white brilliant, anthracite, aluminium painted
Rocker Variants:2 channel (= 1 rocker with medial position) *
Labeling Variants:Light 0 / I
Operating Travel / Operating Force:Approx. 2mm / 7N (at room temp.)
Switching Cycles:> 50.000 operations according to EN 60669 / VDE 0632
Humidity:0-95% r.h., non-condensing (for dry environment only)
Temperature Range (operation):-25...+65°C

* Other variants (Busch-Jaeger, Young, 55x55, 4??-channel serial rocker) available on request.

Properties "Mini Easysens wireless switch"
·Dimmable/Control: Enocean (868 MHz)
Manufacturer "Thermokon"
Related links of the manufacturer

Data sheet

Data sheet Wireless schitch Mini EasySens
