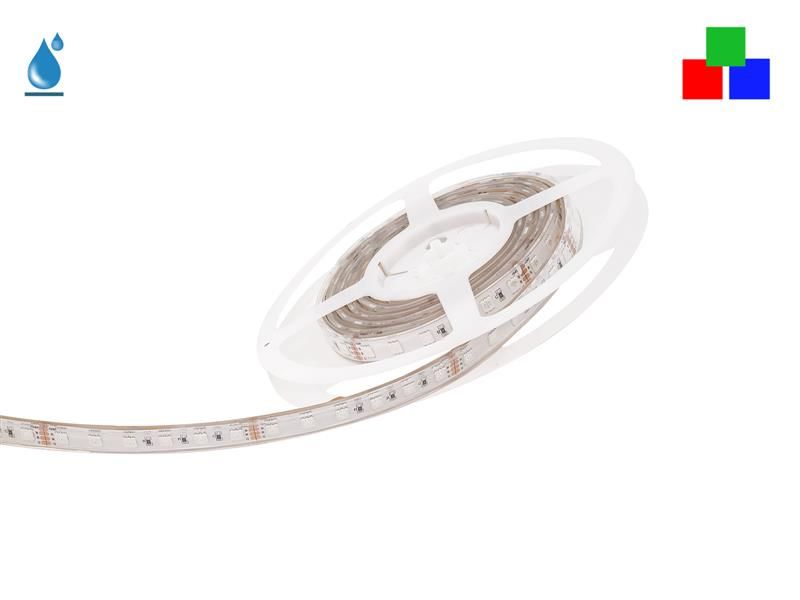

Outdoor LED Bar 24V RGB 72LEDs/m IP67 2m

Product information "Outdoor LED Bar 24V RGB 72LEDs/m IP67 2m"

Flexible 24V LED RGB strip for outdoor applications with 72 LEDs/m

This LED strip is suitable for outdoor applications and is ideal for ambient lighting and targeted colour effects. With this flexible LED strip, shelves or terrariums can be set in scene or individual steps or edges in the garden can be highlighted by targeted installation. They are best suited if you want to set a certain color or if you want to remain flexible in color.

The IP67 protection is achieved by a uv-resistant silicone tube with a double-sided adhesive tape. A small silicone set to shorten the LED RGB strip is included.

For sustainable operation, please refer to the information on cooling of the LED strips in the data sheet. Cooling can be done e.g. via ALU profiles.

The most important features

  • The supply voltage of 24V allows a wide range of power supplies and direct use in the truck sector
  • The beam angle of 120° provides a large-area illumination
  • The mounting density of 72 LEDs/m ensures optimum light distribution
  • With a pitch of 84 mm you can adjust the LED strip to your own needs.
  • With RGB technology, the colors can be freely adjusted.



Application examples:

  • Effect lighting of cabinets, terrariums and shelves
  • Highlighting individual pieces of furniture with targeted lighting
  • Lighting in the truck sector e.g. for motorhomes or assembly vehicles
  • Increase accessibility by illuminating stairs and other tripping hazards
  • Pleasing lighting in party cellars
  • Set accents in the garden
  • Illuminated advertising
  • Many other outdoor applications possible.


Technical data for LED strips

VersionOutdoor Flexible
Power supply24V dc
Luminous flux250 lm/m
Power17 W/m
Assembly Density72 LEDs/m
Protection class

IP67 - dust-tight, protection against temporary immersion

Beam angle120°
Length2000 mm (2m)
Width12,5 mm
Height4 mm
Division84 mm

For further technical information please refer to the data sheet.

In our shop you will find a large selection of matching 24V power supplies

Properties "Outdoor LED Bar 24V RGB 72LEDs/m IP67 2m"
·Amount LEDs/m: 72 LEDs/m
·Application/IP-Code: IP65/67 (Outdoor)
·Color Temperature/Color: RGB/3-Ch
·Constant Voltage: 24V
·Lamp shape: flexible (stripes)
·Power/Meter: 10-20W/m
·rated luminous flux lm/m: less than 500 lm/m
Manufacturer "PUR-LED GmbH & Co. KG"

The company made it to their goal, to produce environmental friendly, innovative and especially in high quality. With the brand Trelight, PUR-LED® especially covers the control sector of multicolored LEDs. The Trelight-series can be controlled via wallswitch, radio or downloadable app, depending on the product.
