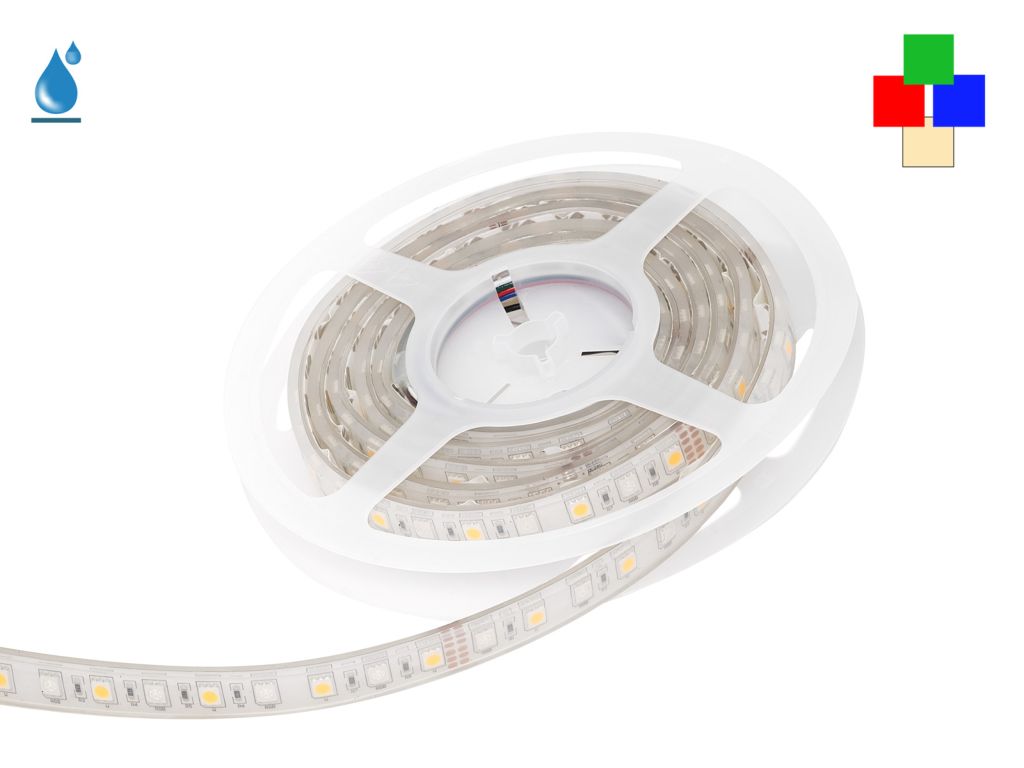

Outdoor LED strip 24V RGBW 72LEDs/m IP67

Product information "Outdoor LED strip 24V RGBW 72LEDs/m IP67"

Flexible 24V LED RGBW strip for outdoor applications with 72 LEDs/m

This modern RGB-W LED strip is suitable for outdoor applications and are ideal for effect and ambient lighting. The advanced 4-channel technology not only gives you more pleasing and vibrant colors, but also a wider color spectrum through the extra warm white channel. These LED strips are alternately a RGB LED and a warm white LED. These flexible 24V RGB-W LED strips can illuminate shelves or terrariums or individual furniture can be brought to bear through targeted attachment. They are ideal if you want to set a specific color or if you want to stay flexible in color. In this version, the LED strip can be combined with all of our ALU profiles, which are also used for cooling.

The RGB-W bar is controlled by a common positive pole. A small silicone kit to shorten the LED RGB-WW Strip is included.

For a sustainable operation, please note the information on the cooling of the LED strips in the data sheet. The cooling can be done via ALU profiles.

The most important features

  • The supply voltage of 24V allows a wide range of power supplies and direct use in the truck sector
  • The beam angle of 120 ° ensures large-area illumination
  • The assembly density of 72 LEDs / m ensures optimum light distribution
  • With a pitch of 166 mm, you can customize the LED strip to your own needs
  • Thanks to the RGBW technology, the colors can be freely selected
  • The additional white channel allows you to use the bar optionally for neutral lighting


Application examples:

  • Effect lighting of cupboards, terrariums and shelves
  • Highlighting individual pieces of furniture through targeted lighting
  • Lighting in the car sector, eg for motorhomes or assembly vehicles
  • Increase accessibility by illuminating stairs and other tripping hazards
  • Atmospheric lighting in party cellars
  • Set accents in the garden
  • Neon signs
  • Many other applications in the outdoor area possible

Technical data

VersionOutdoor, flexible
Power supply24V dc
Luminous flux

Total: 530 lm/m

RGB :140 lm/m

Warm white: 390 lm/m

Power17 W/m
Packing density72 LEDs/m
Protection type

IP67 - dustproof, protection against temporary submersion

Beam angle120°
LengthOptionally 2m or 5m
Width14 mm
Height5 mm
Division166 mm

For further technical information, please refer to the data sheet.

In our shop you will find a large selection of matching 24V power supplies

Properties "Outdoor LED strip 24V RGBW 72LEDs/m IP67"
·Amount LEDs/m: 72 LEDs/m
·Application/IP-Code: IP65/67 (Outdoor)
·Color Temperature/Color: RGBW/4-Ch
·Constant Voltage: 24V
·Lamp shape: flexible (stripes)
·Power/Meter: 10-20W/m
·rated luminous flux lm/m: 501-1000 lm/m
Manufacturer "PUR-LED GmbH & Co. KG"

The company made it to their goal, to produce environmental friendly, innovative and especially in high quality. With the brand Trelight, PUR-LED® especially covers the control sector of multicolored LEDs. The Trelight-series can be controlled via wallswitch, radio or downloadable app, depending on the product.

Related links of the manufacturer

Datenblatt O24RGBW72

0 of 0 reviews

Leave a review!

Share your experiences with other customers.

Similar Products

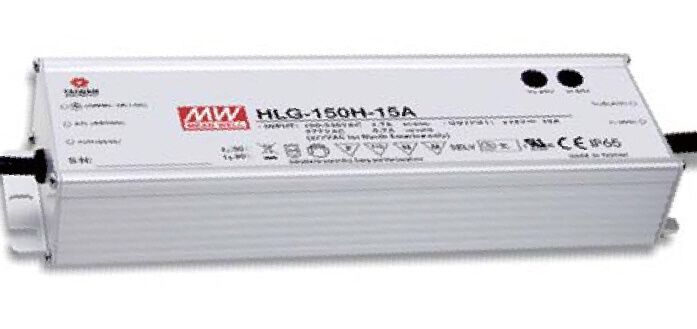

Meanwell HLG-150H power supply
