Programmable 4-each Wireless Push-Button for ZigBee luminaires

Product information "Programmable 4-each Wireless Push-Button for ZigBee luminaires"

4-way radio button - simulation of different lighting moods with a range of 100 m

This programmable 4-way radio button is particularly impressive due to its intuitive operation. This means that even untrained people are immediately able to set pre-programmed lighting moods quickly and easily. Specifically, four predefined color light scenes can be called up.
Because of this, the 4-way wireless pushbutton is ideally suited for a wide variety of indoor lighting applications, such as living rooms, offices or changing Rooms.
Communication with the lights takes place via ZigBee, which enables a combination with other systems.

Product overview and Features:

  • Individual retrieval of four pre-programmed color light scenes (CCT and color)
  • Communication with lights via ZigBee
  • Can be integrated into other systems that work with the ZigBee Light Link protocol
  • Icon design of the buttons can be customized, i.e. Fields are assigned individually and adapted to the respective project (e.g. living space with morning, day, evening and work moods)

Technical data:

Transmission / reception frequency 2,4 GHz
Range appprox ca. 100 m (free field)
Protection class device IP 20
Temperature range -5 °C to 45 °C
Surface Plastic lacquered
Dimensions 64 x 64 x18 mm (L*W*H)

For more information, please refer to the data sheet in the download tab.

Properties "Programmable 4-each Wireless Push-Button for ZigBee luminaires"
·Application/IP-Code: IP20 - IP44 (Indoor)
·Dimmable/Control: Push-Button
Manufacturer "KITEO GmbH"

KITEO lighting solutions revolve around the relationship between light and people, i.e. Ambience and a feel-good atmosphere take center stage and the lighting is based on your needs. KITEO makes use of the innovative PI-LED technology that unites Human Centric Lighting and brilliant RGB colour effects in one light source and brings daylight into every room while simulating the natural circadian daylight sequence.

Related links of the manufacturer

Data sheet 4-each wireless rotary push-button

Incl. 4 preprogrammed light scenes

0 of 0 reviews

Leave a review!

Share your experiences with other customers.


Similar Products

TRELIGHT LED Dimmer Wireless Wall Button
Wireless pushbutton for TRELIGHT LED dimmer. Single and double rocker available
Product number: 504CTR
Version
+1

Variants from €77.05*
€83.22*

delivery time 3-5 Working days*

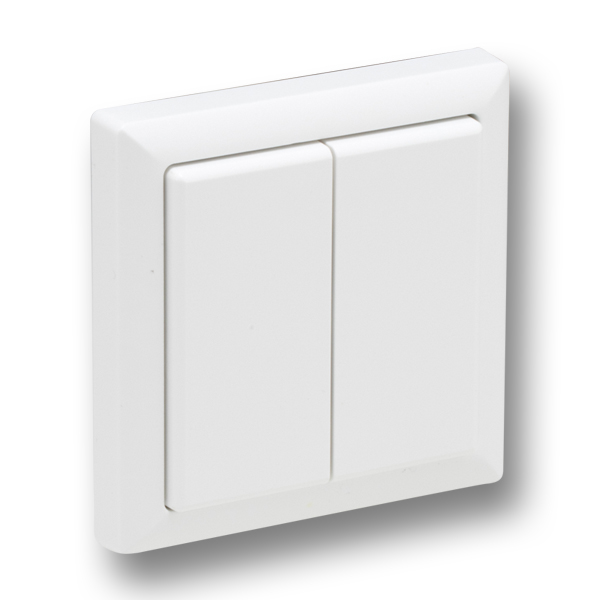

EnOcean push button radio
