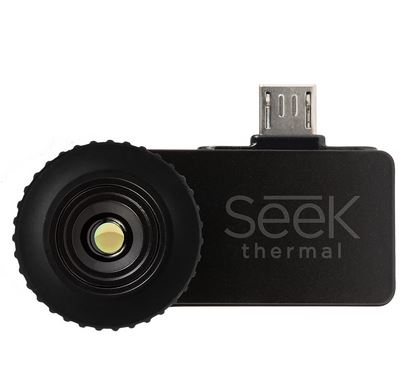

Seek Thermal Compact / Compact XR for Android
A mobile thermal imaging - and night vision camera with true thermal sensor.
Available as a compact version with 36° field of view or with narrow 20° field of view as compact XR version (telephoto).
Diversification thermographic camera for your Android smartphone and tablet
Therewith you always have an overall view: in bright daylight, poor visibility and even in absolute darkness

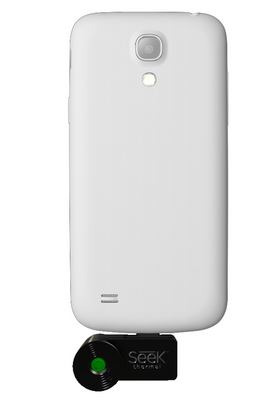

An easy basic connect to your Android smartphone or tablet with a standard micro USB than use the
corresponding app and the smart device is the thermal imager. The taken up photos and videos can
be stored and shared.
Highlights of thermal imager by Thermal Seek:
- Detect temperatures ranging from -40° C to 330° C
- Compact: small, light and convenient
- Thermal sensor with 206x156 pixel = 32.136 pixel
- Everywhere besides waterproof carrying case

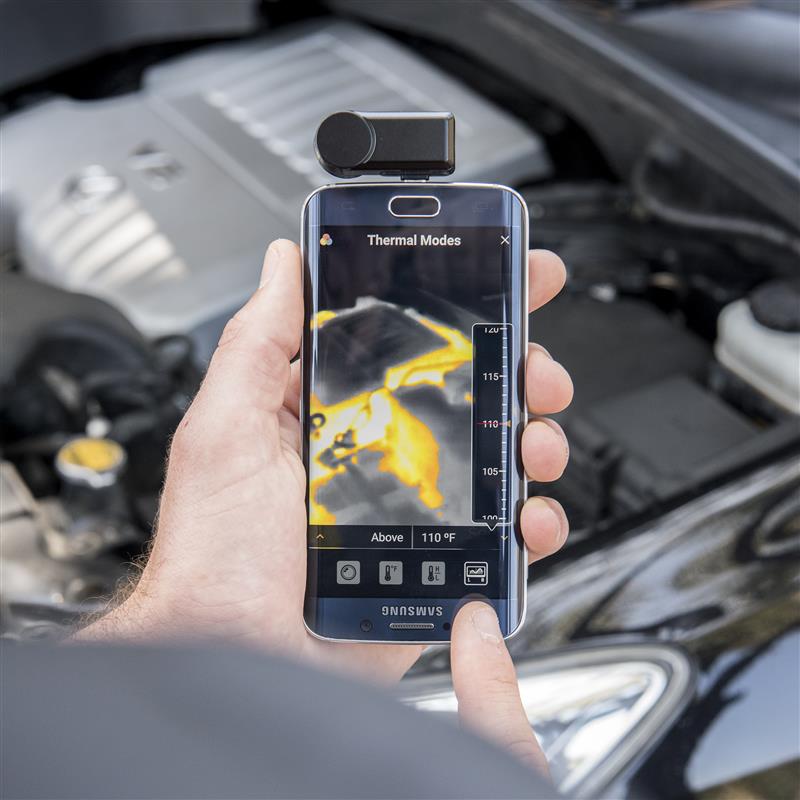

Seek Thermal for Android - find almost everywhere use
At home, in security technology, during a hunt or at work it does not matter wheter you use it. The mobile
thermal imager has been developed for a variety of applications.
There are 2 different versions to choose from, which expands the range of applications again:
The Seek Thermal Compact is suitable with a viewing angle of 36° for thermal inspections.
Area of application Compact 36° and 20° Compact XR
- Heat losses in the area of windows and doors
- Power guzzlers in standby mode

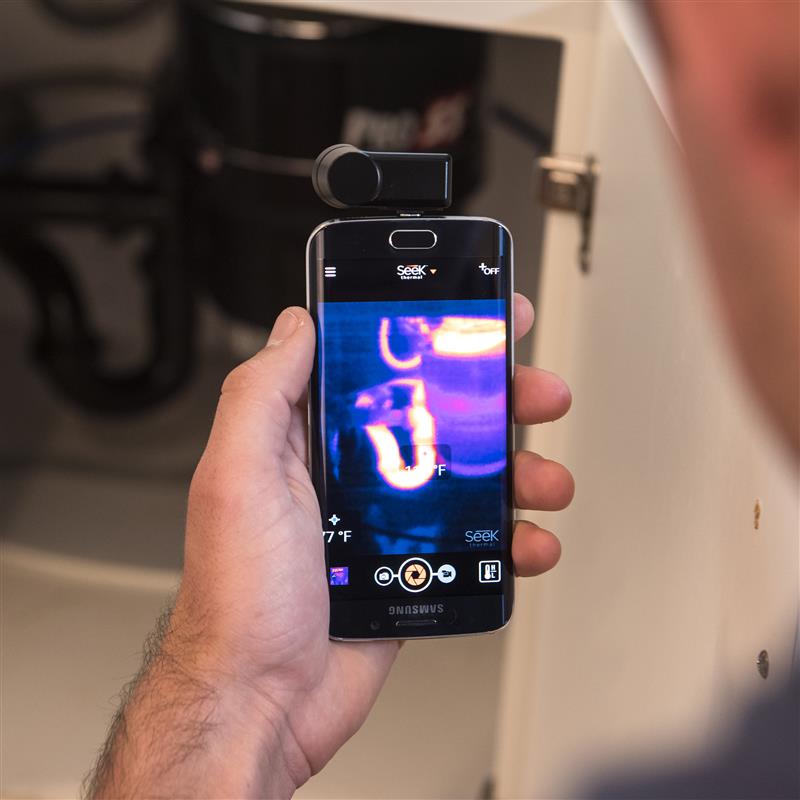

- To examine insulation, water -/ gas line
- Electrical cables, connections
- Cooling / thermal loss in example in tablet, laptop or smartphone
- Building diagnostics
- and much more....

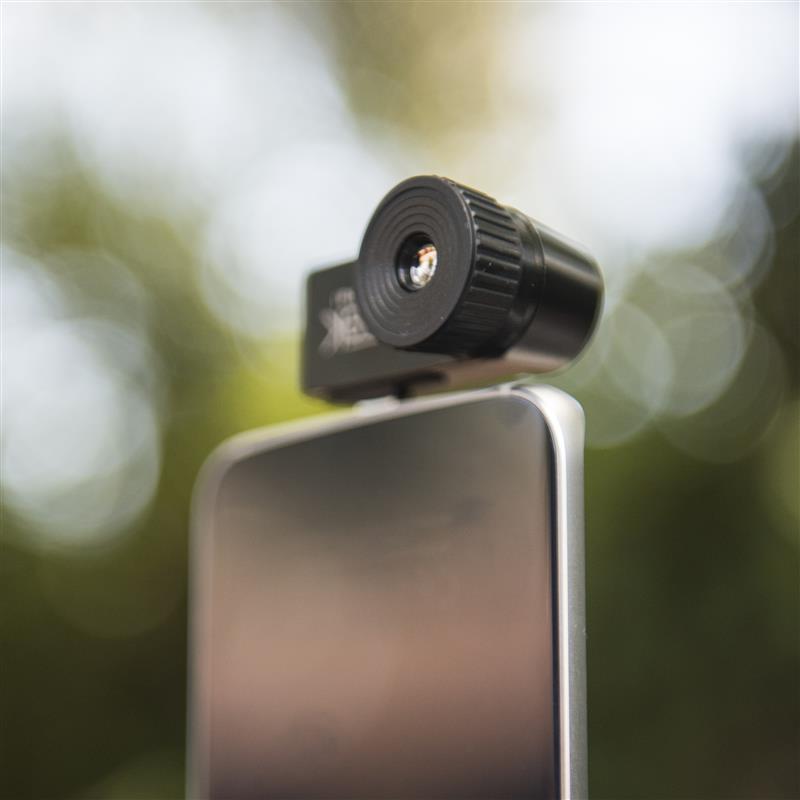

The Seek Thermal Compact XR (Xtra Range) with a viewing angle of 20° detects heat sources up to 550
feet away - almost twice as far as the Compact.
Additional area of application for compact XR 20°
- Hunter (Night vision camera)
- Security area, supervisory personal
- and much more ...
Technical data for Seek Thermal Compact / Compact XR:
|Sensor||Vanadium oxid microbolometer|
12µ pixel Pitch
|Measuring range wave length||7,2µm - 13µm|
|Measuring range temperature||-40°C to 330°C|
|Viewing angle||20°(Compact) or 36° (Compact XR)|
|Android requirements||4.3 or higher + mUSB|
|Sensor reach||until to 1800 feet ~ 550 meter (Compact XR)|
Thermal imaging cameras are subject to export restrictions depending on their performance.
Accordingly, shipment to third countries (non EU countries) may not be possible.
