Steel rope suspension for ELEDQ recessed ceiling light
€13.03*
net-price: €10.95 % €17.85* (27% saved)delivery time 3-5 Working days*
- Purchase and advice from the LED expert
- Professional products from over 15 years of experience
- LED technology is our passion
- Free shipping for orders over €150 (DE)
Product information "Steel rope suspension for ELEDQ recessed ceiling light"
Elegant LED ceiling recessed luminaire 13W with reflector and COB
You know that. The whole ceiling is covered with LED-Spots with different diameters. It is like a starry sky, but mostly the bright light points or round little light surfaces of the spots or panels are blinding.
The solution:
These LED ceiling recessed luminaire have their LED-COB light source strongly moved upwards inside the lamp. The light is given out and spread through a reflector of the luminaire. This is how you get an unique outcome. You sit in a pleasantly bright room but still you don't really recognize the luminaires.
A perfect solution for challenging rooms. From living rooms, to conference rooms and off course hotels and many more.
With 13W you reach a better brightness than with a 100W bulb lamp. With 3000K you get a pleasant warm white light.
The luminaire is available with different assembly rings. (angular, round, white, different width).
Furthermore you can choose between different ballasts. Choose the most suitable system for your purposes for the dimming of the LED ceiling-installation lamp.
Overview of the LED ceiling recessed luminaire lamp 13W:
- Housing from sheet metal, chromed,
- Cooling fins from aluminium,black, fixed
- COB-LED-module
- Kit with different, external ballasts choosable or separately.
- Number of light sources : 1 x COB 13W
- Different attachments choosable (round/angular, 120mm/140mm)
You can operate multiple luminaires in series on one ballast and save money with this. A description of these possibilities references for the dimming variants you find here.
Or contact us.
Technical data of the recessed luminaire LED-COB:
| Light source, Socket : | COB-LED |
| Light current : | 1141 lm |
| Colour temperature : | 3000 K |
| Light colour : | warm white |
| Colour reproduction : | >80 CRI |
| Power supply : | ballasts (see options) |
| Connecting voltage : | 220-240 V |
| Connecting power (LED-module): | 13 W at 350mA |
| System efficiency : | 88 lm/W |
| Energy efficiency : | A++ - A |
| Protection type : | 20 |
| Test mark : | CE |
| Height : | 109 mm |
| Outside diameter : | 96 mm (without attachment round/angular) |
| Colour : | white |
| Radiation angle : | 69° (see LVK in the download area) |
Note:
The products from the manufacturer ALS are custom-made specifically for you according to your specifications. This also explains the longer delivery time depending on the workload.
A.L.S. GmbH
is a supplier and manufacturer of lighting systems as well as a service provider of lighting concepts.The main focus at A.L.S is the production of lighting elements, lamps and accessories.
For more than 10 years we have been offering more than 100 products form the manufacture ALS worldwide.
Below is our Portfolio of products. Tip: Use the filter function to quickly find the Light source you Need, or give us a call.
A.L.S. Architektonische Lichtsysteme GmbH.
Mastorter Straße 31 - 88069 Tettnang - Germany
E-Mail: info@als.de
Login
- Hole diameter - We recommend selecting the spots first, then drilling the holes. Otherwise the limitation is predetermined Output
- Light output in lumens, or wattage. How much light is needed in the room. There is no general answer to this question. Use the following link for the project enquiry
- Installation depth - usually a mandatory requirement in terms of drill hole depth or distance from suspended ceiling.
- Color temperature dimmability - We recommend modern options such as DALI or Casambi.
- Beam angle - For uniform room illumination. Usually determined by the distribution of the spots in the room and the room height.
- Fastening - Installation in false ceiling or concrete ceiling Glare - Depending on the viewing angle, lower LEDs in the spotlight can often no longer be perceived as a bright point of light, thus ensuring pleasant lighting.
If you have a lighting project and would like to use downlights, please use the link provided for our project enquiry form. We will try to answer all your questions.
Similar Products
delivery time 3-5 Working days*

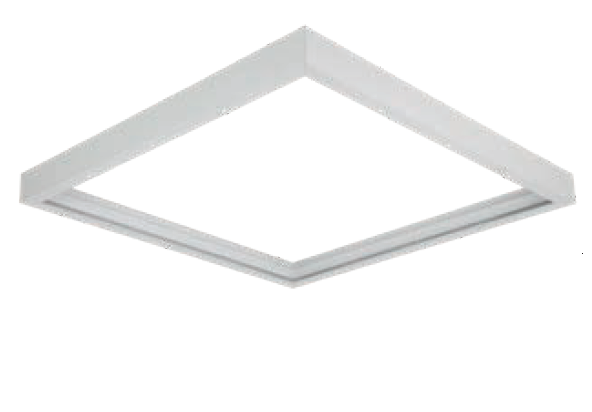

The stylistic mounting frame for the ELEDQ recessed ceiling light
