Touch-Dimmer built-in 100-240V with flat shape

Product information "Touch-Dimmer built-in 100-240V with flat shape"

Touch-Dimmer built-in - flat shape, permanent Memory

With this particularly flat built-in dimmer, you have the option of using an external sensor to control various dimmable LED suppliers, but also energy-saving lamps and light bulps. When the LED dimmer on the mains side is switched on, the previous brightness is set. This is called a permanent memory.

Further features:

  • Dimmer built-in for external sensor
  • Touch once: Switch on resp. Off
    Touch and hold: Brighter resp. darker
  • When re-started by power-on, the previous brightness will be reset (permanent memory)
  • For retrofit, CFL, incandescent lamps

Technical data:

Article number 038306
Type DETO231-25
Input voltage 100..240 V
Frequency 50..60 Hz
Output power LED 4..25 W
Output power CFL 11..25 W
Output power light bulp bei 120 Vac 4..200 W, bei 230 Vac 4..250 W
Ambient temperature max. +35 °C
Estimated lifetime 40.000 h
Cable cross section 0,75 mm²
IP Protection level 20

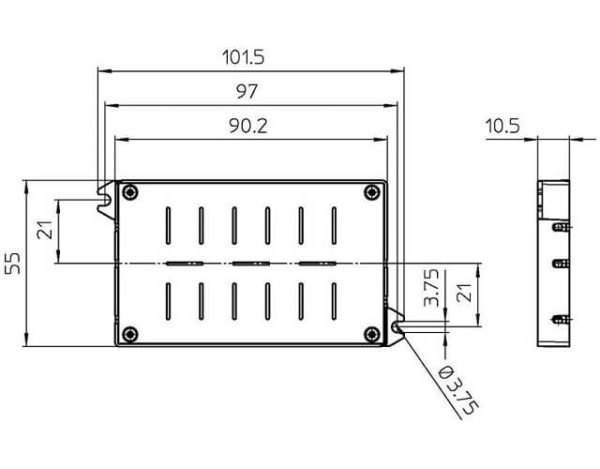

Dimensions 90x55x11 mm

For further information please refer to the data sheet in the Download tab.

Properties "Touch-Dimmer built-in 100-240V with flat shape"
·Application/IP-Code: IP20 - IP44 (Indoor)
·Dimmable/Control: Phase-Cut (Triac)
·Power range: 20 - 50 W, 50 - 100 W
Manufacturer "Arditi GmbH Lighting Components"

Arditi GmbH is a subsidiary of the Italian Arditi Spa near Bergamo. The range is broadly diversified and includes switches, dimmers, sockets, bases, wires, transformers and accessory. In the meantime, Arditi has made a name in the sector of LED-technology. The company offers LED-modules in various forms, transformers and drivers, as well as LED-suppliers.

Related links of the manufacturer

Sensor dimmer data sheet
