Waterproof LED power supply up to 151W 12V/24V
Variants from 101.29€ *
Net price: 85.12€
Net price: 85.12€
Content: 1
Prices incl. VAT plus shipping costs
Please select a variant first
- Order number: 6097-800514
- Hersteller-Nr.: 800514
- Weight: 1.01 kg
- Manufacturer: Arditi GmbH Lighting Components
Powerful LED power supply up to 151W - with constant voltage, waterproof, IP65 For both... more

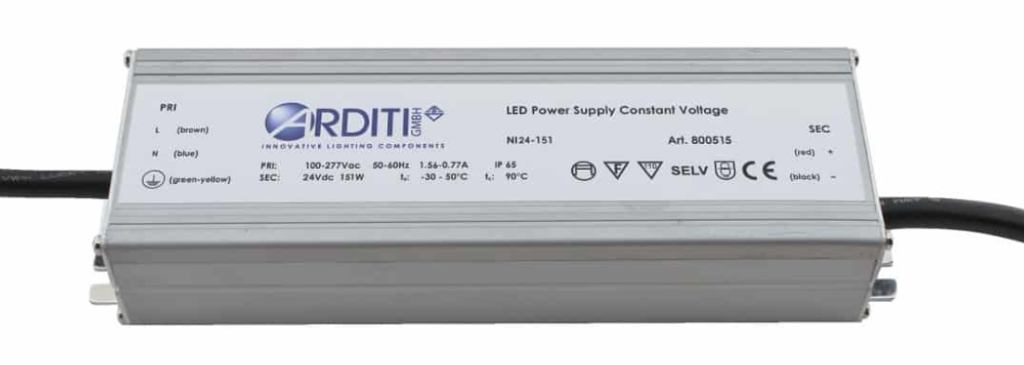

Powerful LED power supply up to 151W - with constant voltage, waterproof, IP65
For both indoor and outdoor applications, this waterproof LED power supply, operating at a regulated output voltage of 12V or 24V, is the perfect solution. The high performance LED module has a high degree of protection and also impresses with its efficiency at a power factor greater than 95%. It is also protected against overload, overheating and short circuits. The product is available in two versions with a power of 132W and 151W with appropriate constant voltage.
Further features:
- Independent LED power supply with controlled output voltage
- Module with connection cable
- Water-protected, high protection level IP65
- High efficiency (power factor> 0.95)
- Largely resistant to cold and heat (large temperature range in which the device is not affected: -30 .. + 50 ° C)
Note:
Do not insert switches into the secondary circuit!
Technical data:
| Article number | 800514 | 800515 |
| Type | NI12-132 | NI24-151 |
| Input voltage | 100..277 Vac | |
| Frequency | 50..60 Hz | |
| Nominal output voltage | 12 Vdc | 24 Vdc |
| Output power | 132 W | 151 W |
| Power factor acc. to EN61000-3-2 | >0,95 | |
| Ambient temperature | -30..+50 °C | |
| Rated max. temperature | 90 °C | |
| IP Protection level | 65 | |
| Thermal protection | yes | |
| Overload protection | yes | |
| Short circuit protection | yes | |

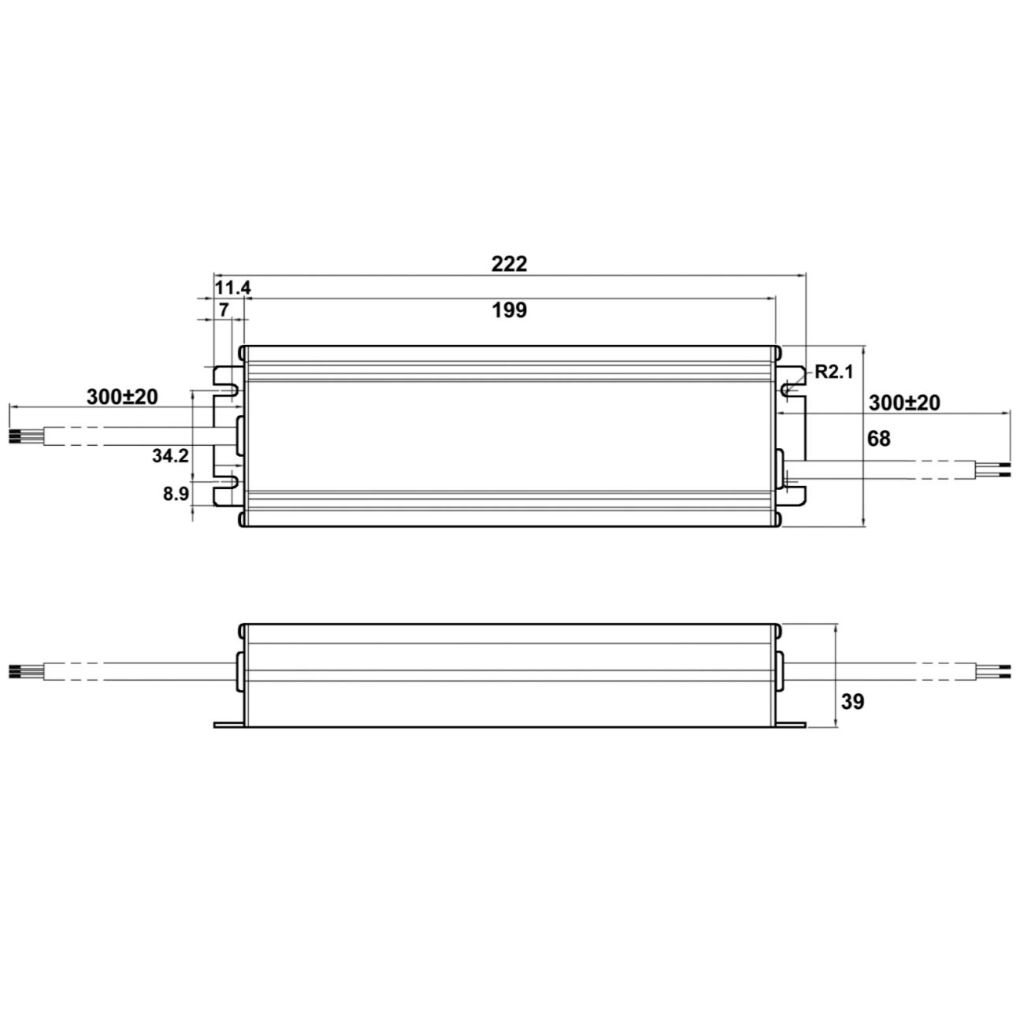

| Dimensions | 222x68x39 mm | |
For further information please refer to the data sheet in the Download tab.
