This product is currently not available.
Wireless DMX Transceiver
108.99€ *
Net price: 91.59€
Net price: 91.59€
Content: 1 Stück
Prices incl. VAT plus shipping costs
Please select a variant first
- Order number: 7673510-0
- Hersteller-Nr.: CTR-7673510
- Weight: 0.4 kg
- Manufacturer: PUR-LED GmbH & Co .KG

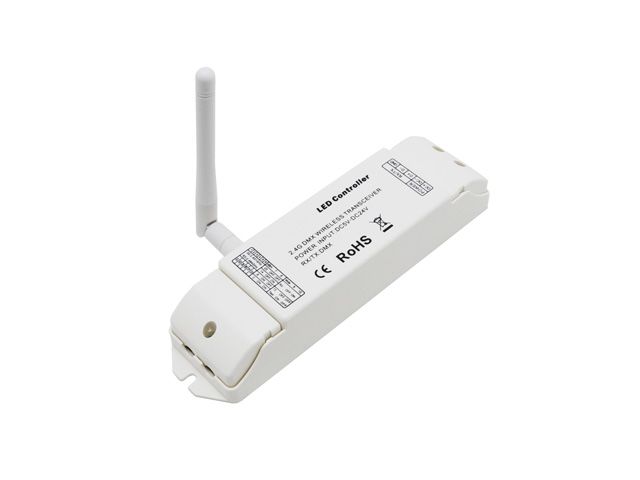

Wireless DMX Transceiver, 64 Channels, 2.4GHz Wireless The DMX Transceiver allows... more
Wireless DMX Transceiver, 64 Channels, 2.4GHz Wireless
The DMX Transceiver allows simultaneous sending and receiving of DMX protocols. It is possible to transmit the DMX signal to multiple recipients.
To expand the radio range, a DMX Contoller be used as a relay.
For the radio transmission of the DMX protocol, a transmitter and at least one recipient is required.

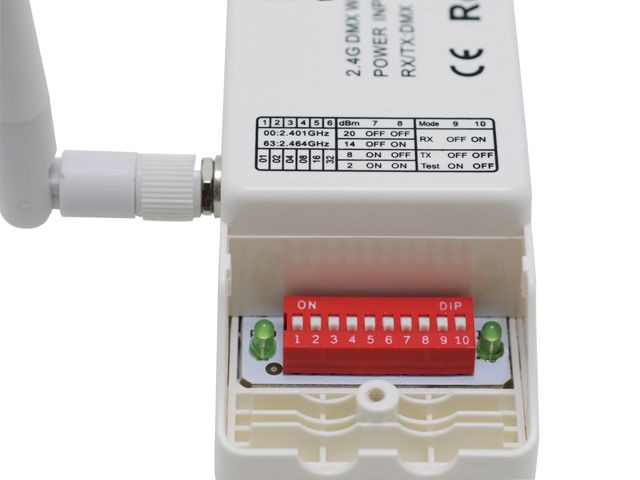

The DMX radio transmitter-receiver has a testing mode to check the wireless connection.
Technical Data:
| Operating Voltage: | 5-24V DC |
| Input-/Output signal: | DMX512 |
| Channels: | 64 Kanäle, usable independently |
| Radio frequency channels: | 2,4GHz ISM 64 channels |
| Range: | 350m max. @ 20dBm, subdivision in 4 transmission strengths (2, 8, 14, 20dBm);
Restrictions imposed by environment and weather possible
|
| Dimensions (LxWxH) in mm: | 175 x 44 x 30 + laterally screwed antenna (B in mm with antenna: 75) |
Related links to "Wireless DMX Transceiver"
Wireless DMX Transceiver simultaneous sending and receiving DMX protocols, 64 channels,... more
Features/tags of this product family. Please refer about the details in the description or datasheet.
| Dimmable/Control: | DMX |
